£24.36
excl. VAT
£29.23 incl. VAT
£29.23
incl. VAT
£24.36 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cogged | Yes |
|---|---|
| Colour | Black |
| Height | 10 mm |
| Long description | When your power transmission system needs high horsepower but is limited by space or weight, Super HC™ Moulded Notch Belts are the perfect solution. With a unique design, these belts offer exceptional flexibility and load-carrying capacity., Ideal for applications requiring high speeds, small pulleys, Super HC™ MN V-belts outperform traditional V-belts., Super HC™ MN is highly recommended for use on all industrial heavy-duty, narrow section V-belt drives, With better transmission efficiency, Super HC™ MN belts provide a more compact and cost-effective drive design |
| Manufacturer Product ID | 9413-91320 |
| Material | Ethylene Elastomeric |
| Max. working temperature | 121 °C |
| Min. working temperature | -51 °C |
| Norm | ISO 1813 |
| Number of sections | 1 |
| Outside length | 1338 mm |
| Pitch length | 1320 mm |
| Product details | Static conductive acc. to ISO 1813, Belt edge machined for even sheave, groove contact, resulting in smoother, running, less slip and wear, Good resistance to occasional exposure to oil and chemicals, Raw edge, moulded notch, V-belts with the S=C Plus designation can be used as a set |
| Profile | XPA |
| Pros | High speeds, Perfect on small pulleys |
| Set-constant [matched] | Yes |
| Static | Yes |
| Suitable for back tensioner | No |
| Tension cord material | Polyester |
| Unit | Each |
| Width | 13 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 119 g |
| Dimensions | 160 × 160 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000123915

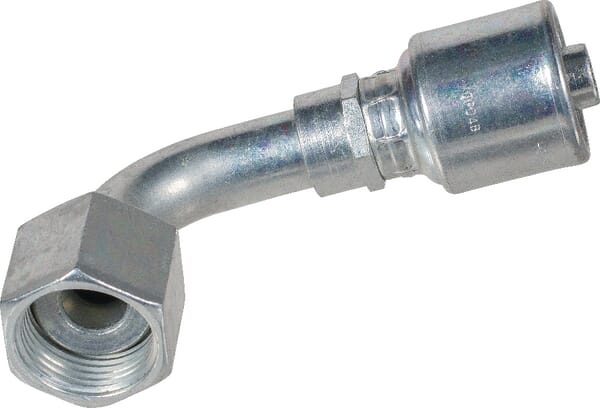

Gates Insert 90° DN6-9/16ORFS 4G4FFORX90M
£23.98 excl.
£28.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000160096

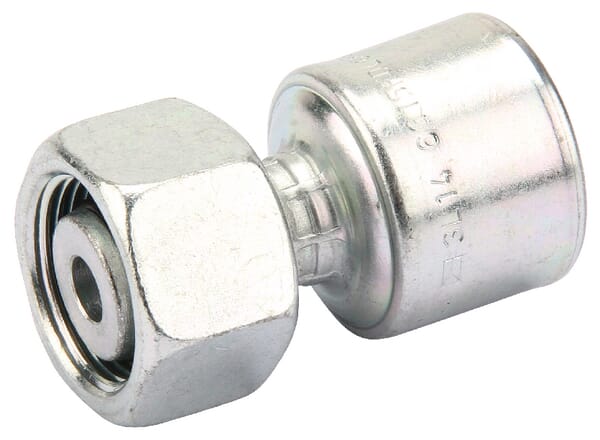

Gates Insert DN10-M16x1.5 6G10FDLORX
£8.04 excl.
£9.65 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000160199

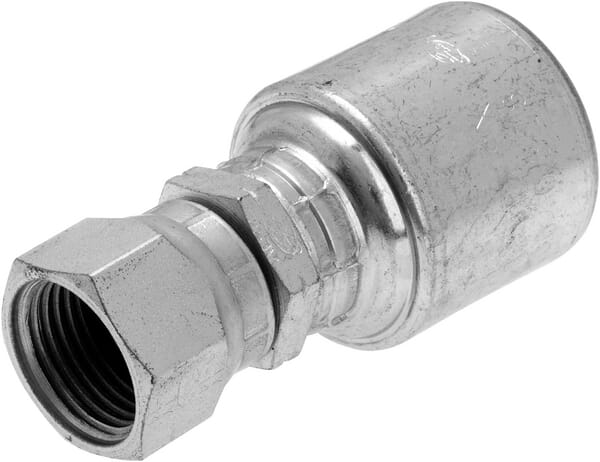

Gates Insert DN10-3/4 SAE 45 6G8FSX
£19.67 excl.
£23.60 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000031626

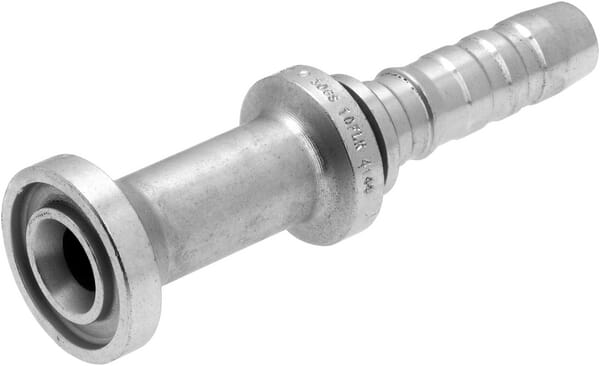

Gates Insert Komatsu DN16-34.2 10GS10FLK
£156.90 excl.
£188.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068825

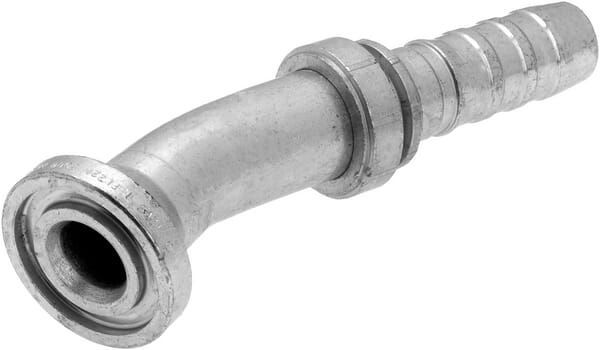

Gates Insert DN32+50.8 flange 22° 20GS20FL22M
£156.94 excl.
£188.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031621

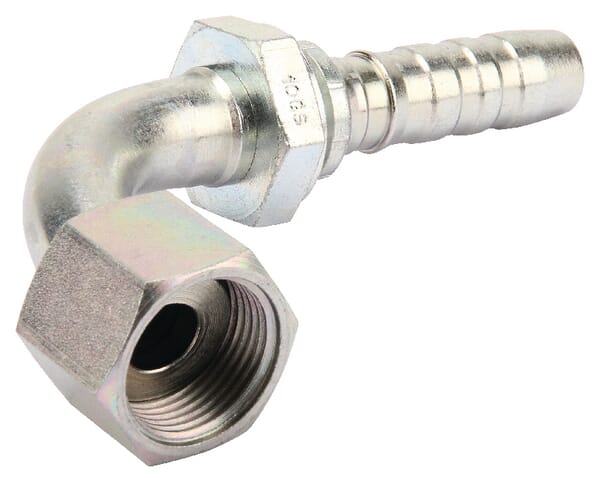

Gates Insert 90° DN16-1"SAE 10GS10FFORX90M
