£15.51
excl. VAT
£18.61 incl. VAT
£18.61
incl. VAT
£15.51 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cogged | Yes |
|---|---|
| Colour | Black |
| Height | 10 mm |
| Long description | When your power transmission system needs high horsepower but is limited by space or weight, Super HC™ Moulded Notch Belts are the perfect solution. With a unique design, these belts offer exceptional flexibility and load-carrying capacity., Ideal for applications requiring high speeds, small pulleys, Super HC™ MN V-belts outperform traditional V-belts., Super HC™ MN is highly recommended for use on all industrial heavy-duty, narrow section V-belt drives, With better transmission efficiency, Super HC™ MN belts provide a more compact and cost-effective drive design |
| Manufacturer Product ID | 9413-90805 |
| Material | Ethylene Elastomeric |
| Max. working temperature | 121 °C |
| Min. working temperature | -51 °C |
| Norm | ISO 1813 |
| Number of sections | 1 |
| Outside length | 823 mm |
| Pitch length | 805 mm |
| Product details | Static conductive acc. to ISO 1813, Belt edge machined for even sheave, groove contact, resulting in smoother, running, less slip and wear, Good resistance to occasional exposure to oil and chemicals, Raw edge, moulded notch, V-belts with the S=C Plus designation can be used as a set |
| Profile | XPA |
| Pros | High speeds, Perfect on small pulleys |
| Set-constant [matched] | Yes |
| Static | Yes |
| Suitable for back tensioner | No |
| Tension cord material | Polyester |
| Unit | Each |
| Width | 13 mm |
Logistics
| EAN | 5400608653519 |
|---|---|
| Unit of measure | EA |
| Weight | 74 g |
| Dimensions | 275 × 275 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000044321
Gates Insert DN20-1" BSPP 12GS16MBSPP
£72.85 excl.
£87.42 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000148378

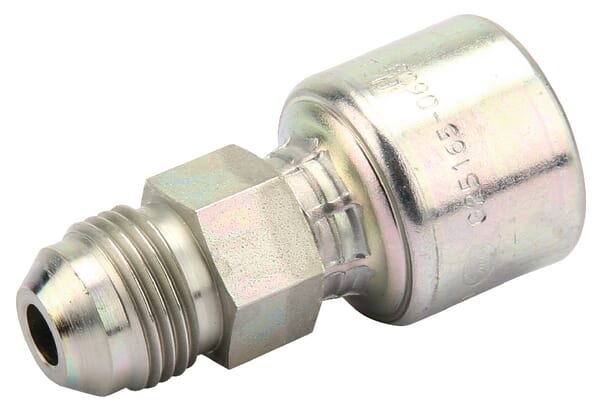

Gates Insert DN8-1/2 JIC 5G5MJ
£23.55 excl.
£28.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365161

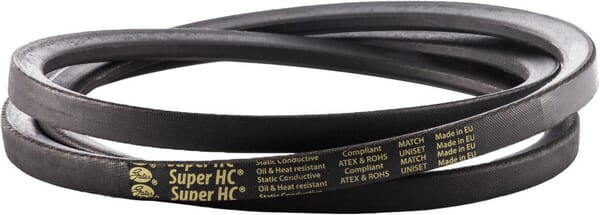

Gates V-belt SPZ1000 SUPERHC SPZ1000GA
£13.94 excl.
£16.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000031653

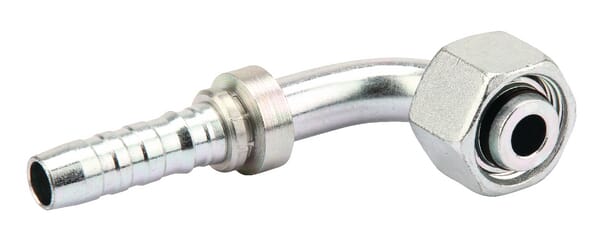

Gates Insert 90° DN16-M30x2 10GS20FDHORX90
£49.35 excl.
£59.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000398580

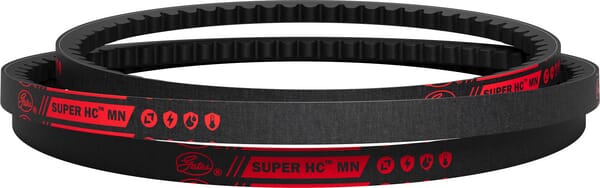

Gates V-belt XPB1750/5VX693 SUPERHC MN XPB1750GA
£41.27 excl.
£49.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000056628

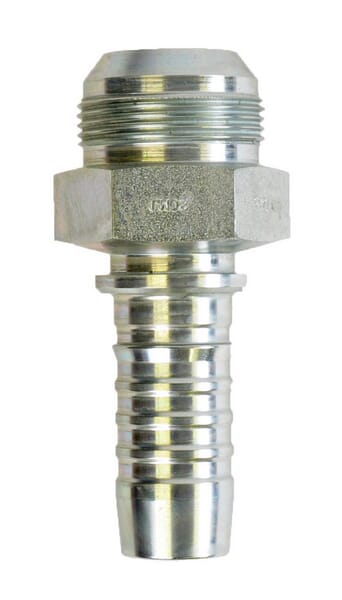

Gates Insert DN25-1"5/8 JIC 16GS20MJ
