£15.91
excl. VAT
£19.09 incl. VAT
£19.09
incl. VAT
£15.91 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cogged | Yes |
|---|---|
| Colour | Black |
| Height | 10 mm |

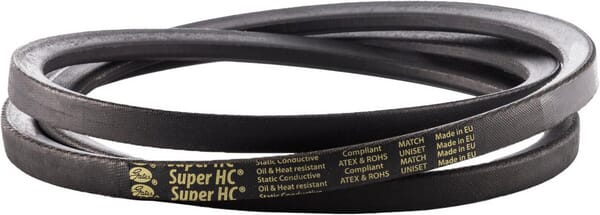

| Long description | When your power transmission system needs high horsepower but is limited by space or weight, Super HC™ Moulded Notch Belts are the perfect solution. With a unique design, these belts offer exceptional flexibility and load-carrying capacity., Ideal for applications requiring high speeds, small pulleys, Super HC™ MN V-belts outperform traditional V-belts., Super HC™ MN is highly recommended for use on all industrial heavy-duty, narrow section V-belt drives, With better transmission efficiency, Super HC™ MN belts provide a more compact and cost-effective drive design |
| Manufacturer Product ID | 9413-90885 |
| Material | Ethylene Elastomeric |
| Max. working temperature | 121 °C |
| Min. working temperature | -51 °C |
| Norm | ISO 1813 |
| Number of sections | 1 |
| Outside length | 901 mm |
| Pitch length | 885 mm |
| Product details | Static conductive acc. to ISO 1813, Belt edge machined for even sheave, groove contact, resulting in smoother, running, less slip and wear, Good resistance to occasional exposure to oil and chemicals, Raw edge, moulded notch, V-belts with the S=C Plus designation can be used as a set |
| Profile | XPA |
| Pros | High speeds, Perfect on small pulleys |
| Set-constant [matched] | Yes |
| Static | Yes |
| Suitable for back tensioner | No |
| Tension cord material | Polyester |
| Unit | Each |
| Width | 13 mm |
Logistics
| EAN | 5400608653533 |
|---|---|
| Unit of measure | EA |
| Weight | 81 g |
| Dimensions | 280 × 280 × 11 mm |
| Dangerous goods | No |
You might also like
BPA000044212

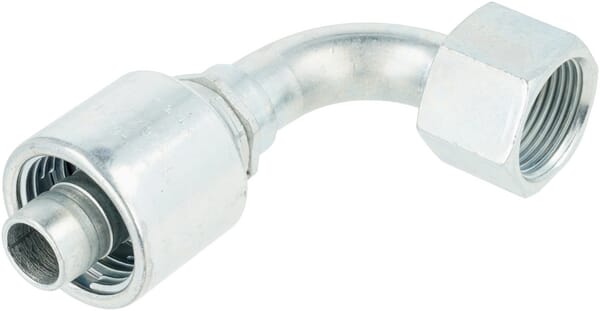

Gates Insert 90° DN19-1"3/16ORFS 12G12FFORX90S
£56.63 excl.
£67.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000192692

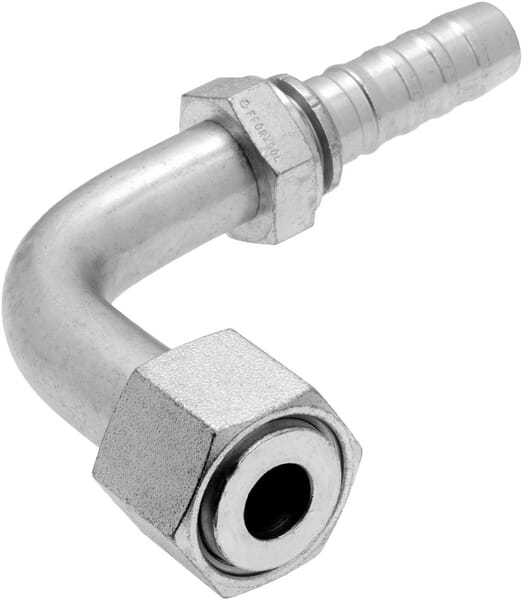

Gates Insert 90° DN13-13/16SAE 8GS8FFORX90083
£85.12 excl.
£102.14 incl.
Backorder available
Usually ships within 3–8 weeks

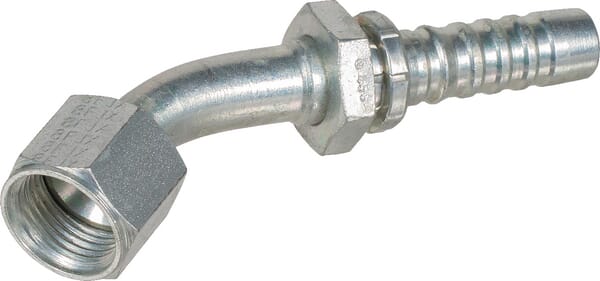

BPA000192695
Gates Insert 45° DN13-3/4JIC 8GS8FJX45S
£33.53 excl.
£40.24 incl.
Backorder available
Usually ships within 3–8 weeks

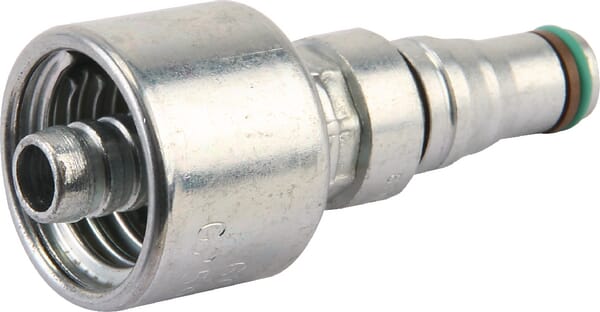

BPA000160179
Gates Insert Quick Lok DN10 6G6MQLH
£26.42 excl.
£31.70 incl.
In stock
Expected to ship on Tuesday 22 September

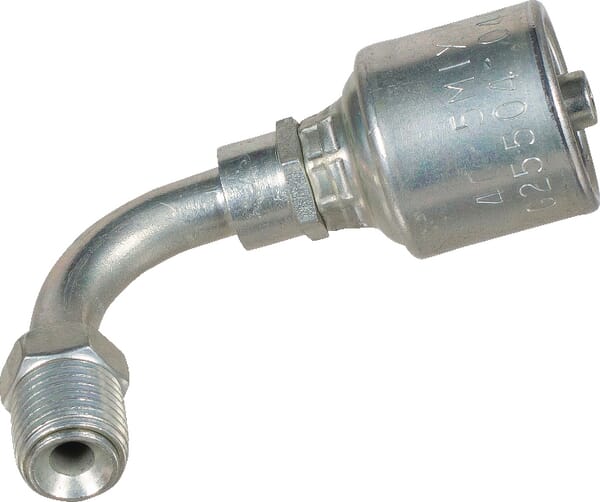

BPA000160176
Gates Insert DN10-5/8 SAE45 90° 6G6MIX90
£52.87 excl.
£63.44 incl.
Backorder available
Usually ships within 3–8 weeks

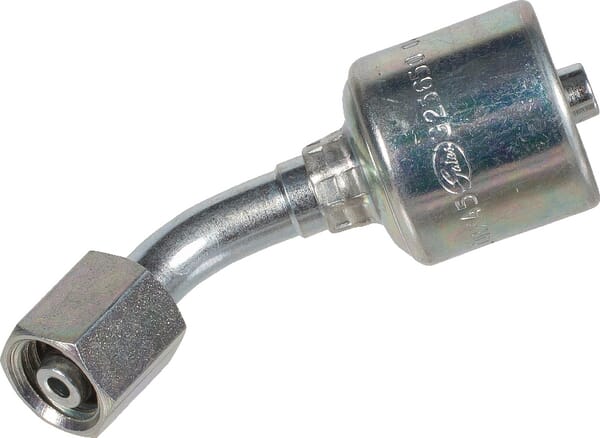

BPA000125953
