£15.32
excl. VAT
£18.38 incl. VAT
£18.38
incl. VAT
£15.32 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Cogged | Yes |
|---|---|
| Colour | Black |
| Height | 10 mm |
| Long description | When your power transmission system needs high horsepower but is limited by space or weight, Super HC™ Moulded Notch Belts are the perfect solution. With a unique design, these belts offer exceptional flexibility and load-carrying capacity., Ideal for applications requiring high speeds, small pulleys, Super HC™ MN V-belts outperform traditional V-belts., Super HC™ MN is highly recommended for use on all industrial heavy-duty, narrow section V-belt drives, With better transmission efficiency, Super HC™ MN belts provide a more compact and cost-effective drive design |
| Manufacturer Product ID | 9413-90905 |
| Material | Ethylene Elastomeric |
| Max. working temperature | 121 °C |
| Min. working temperature | -51 °C |
| Norm | ISO 1813 |
| Number of sections | 1 |
| Outside length | 924 mm |
| Pitch length | 905 mm |
| Product details | Static conductive acc. to ISO 1813, Belt edge machined for even sheave, groove contact, resulting in smoother, running, less slip and wear, Good resistance to occasional exposure to oil and chemicals, Raw edge, moulded notch, V-belts with the S=C Plus designation can be used as a set |
| Profile | XPA |
| Pros | High speeds, Perfect on small pulleys |
| Set-constant [matched] | Yes |
| Static | Yes |
| Suitable for back tensioner | No |
| Tension cord material | Polyester |
| Unit | Each |
| Width | 13 mm |
Logistics
| EAN | 5400608653540 |
|---|---|
| Unit of measure | EA |
| Weight | 81 g |
| Dimensions | 300 × 300 × 13 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000320900

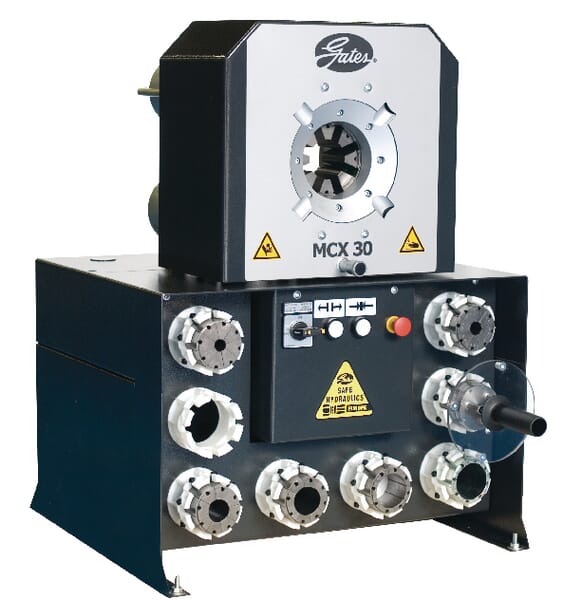

Gates Electric press 380V - 1"1/4 MCX30380
£11,310.33 excl.
£13,572.40 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000068788
Gates Insert 45° DN32-1"1/4BSP 20G20FBSPORX45
£156.39 excl.
£187.67 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044292
Gates Insert DN20-41.3 flange 90° 12GS12FLH90100
£98.57 excl.
£118.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000031567
Gates Insert 90° DN16-1"ORFS 10G10FFORX90L
£69.41 excl.
£83.29 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000068817

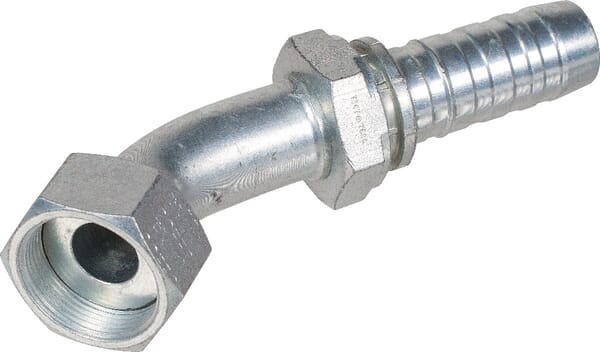

Gates Insert DN32-1"11/16SAE 45° 20GS20FFORX45032
