Product details

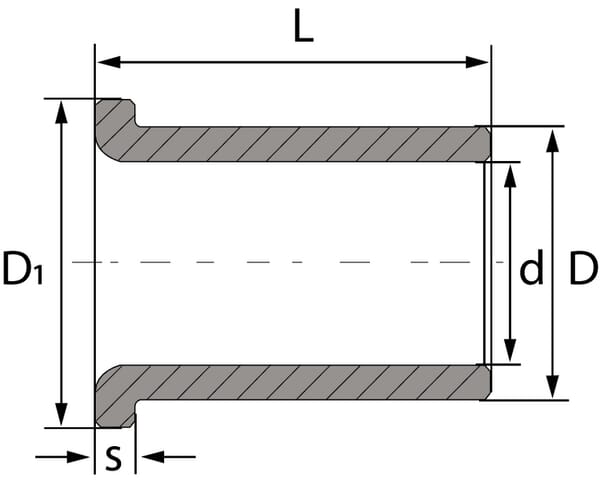

| Collar inner edge radius | 4.5 mm |
|---|---|
| D1Collar diameter | 46 mm |
| dInside diameter | 30 mm |
| DOutside diameter | 38 mm |
| Long description | Bearing bush with collar,series BB-SINT |
| LWidth/length | 20 mm |
| Material | Sintered bronze |
| Max. shaft speed | 6 m/s |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | SBB303820 |
| Radial load dynamic | 5 N/mm² |
| Radial load static | 18 N/mm² |
| sCollar thickness | 4.5 mm |
| Technical info | maintenance-free |
| Type | Flanged, solid |
| Unit | Each |
Logistics
| EAN | 4062011080408 |
|---|---|
| Unit of measure | EA |
| Weight | 71 g |
| Dimensions | 46 × 46 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000404946
GLT/LHG Bearing bush 8x10x10mm ZB081010PTFE
£0.88 excl.
£1.06 incl.
In stock
Expected to ship on Friday 18 September
BPA000236867
GLT/LHG Bearing bush 10x12x9mm BB10121809PTFE
£0.49 excl.
£0.59 incl.
In stock
Expected to ship on Friday 18 September
BPA000237104
GLT/LHG Bearing bush 50x60x50mm BB50607050SINT
£38.86 excl.
£46.63 incl.
In stock
Expected to ship on Friday 18 September

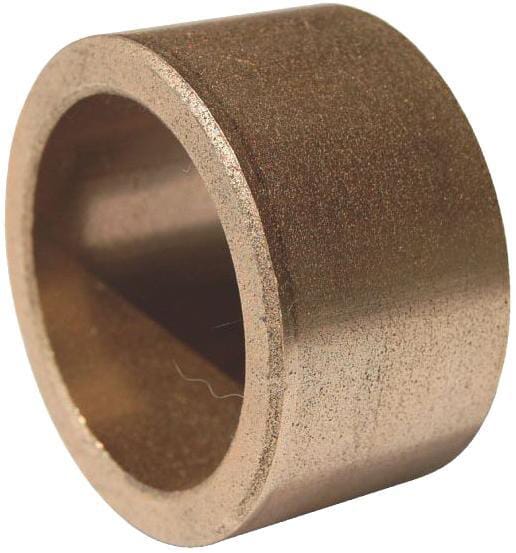

BPA000405078
