About this product
A cylindrical plain bearing bush measuring 75 mm inner diameter, 80 mm outer diameter, and 50 mm in width, sold as a single piece. The bush is manufactured from Teflon (PTFE) with a steel backing, delivering a maintenance-free bearing solution. It operates at a maximum shaft speed of 2.5 m/s, with a working temperature range from −200 °C to 280 °C. The bearing supports a radial dynamic load rating of 140 N/mm² and a static load rating of 250 N/mm². While maintenance-free by design, additional lubrication is possible if required. The product weighs 225 g and carries EAN 4062011187640 for ordering and inventory purposes.
Product details

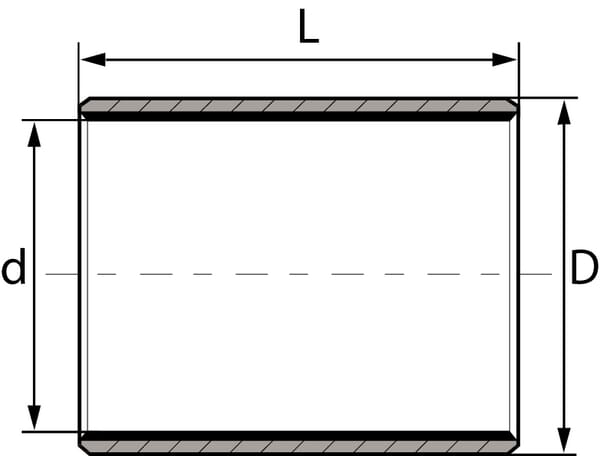

| dInside diameter | 75 mm |
|---|---|
| DOutside diameter | 80 mm |
| LWidth/length | 50 mm |
| Material | Teflon (PTFE), Steel |
| Max. shaft speed | 2.5 m/s |
| Max working temperature | 280 °C |
| Min working temperature | -200 °C |
| Original number equivalent | TFZ7550 |
| Product details | Maintenance-free, Additional lubrication possible |
| Pros | No lubrication required, Suitable for all types of motion, High load-bearing capacity |
| Radial load dynamic | 140 N/mm² |
| Radial load static | 250 N/mm² |
| Type | Cylindrical |
| Unit | Each |
Logistics
| EAN | 4062011187640 |
|---|---|
| Unit of measure | EA |
| Weight | 225 g |
| Dimensions | 80 × 80 × 50 mm |
| Dangerous goods | No |
