£157.17
excl. VAT
£188.60 incl. VAT
£188.60
incl. VAT
£157.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

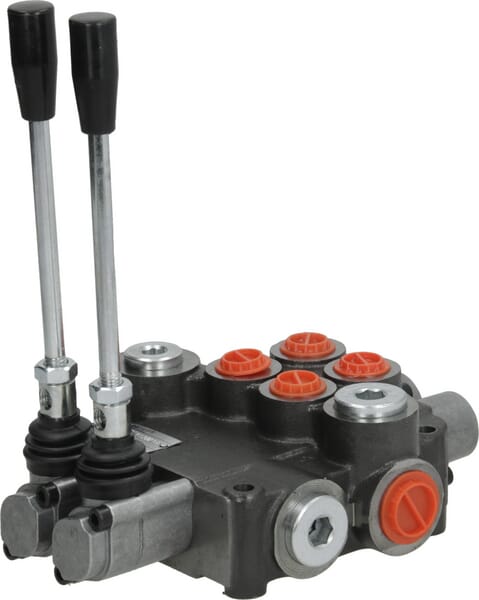

| Long description | The gopart MBV11 is a heavy-duty monoblock directional valve built for high-flow hydraulic applications. Ideal for larger agricultural equipment, such as front loaders, bale wrappers, and multi-function trailers, the MBV11 combines robust construction with smooth, precise control and modular spool configurations. |
| Max. flow rate | 80 l/min |
| Max. leakage | 6 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z80 A1A1G KY1 |
| Mounting holes distance | 103 mm |
| Number of sections | 2 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/4 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 80 L/min., Maximum operating pressure : 300 bar, Safety adjusted to 180 bar, Only for open systems, Main pressure relief valve in P-channel |
| Sealing material | Nitrile rubber [NBR] |

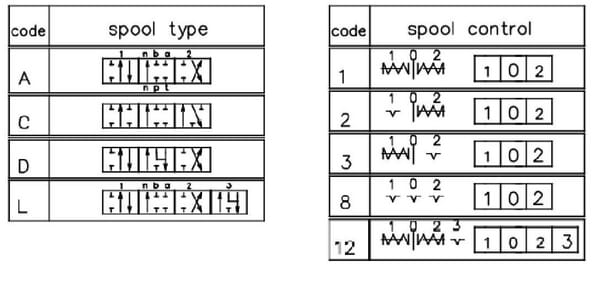

| Spools and detends code | A-1 + A-1 |
| Spools and detends description | 2x double-acting, spring return |
| Tank port T - Thread diameter | 1/2 Inch |
| Tank port T - Thread type | BSP |
| Total height | 67 mm |
| Total width | 160 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z80 |
| Workports thread diameter | 1/2 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8716106307302 |
|---|---|
| Unit of measure | EA |
| Weight | 6402 g |
| Dimensions | 246 × 180 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000304311
gopart Lift link end, top, suitable for John Deere L78577GP
£130.73 excl.
£156.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000072163
gopart Self-aligning ball bearing 20x47x18mm 22042RSGP
£4.71 excl.
£5.65 incl.
In stock
Expected to ship on Friday 18 September
BPA000061232
gopart Fuel level indicator 1861789M91GP
£27.07 excl.
£32.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000254273
gopart Flexible cable with ball ends D018D1X3500
£24.93 excl.
£29.92 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000303652
gopart Ball for lift rod Cat.3 diameter 25.5/50.5x35mm L114631GP
£26.47 excl.
£31.76 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000038575

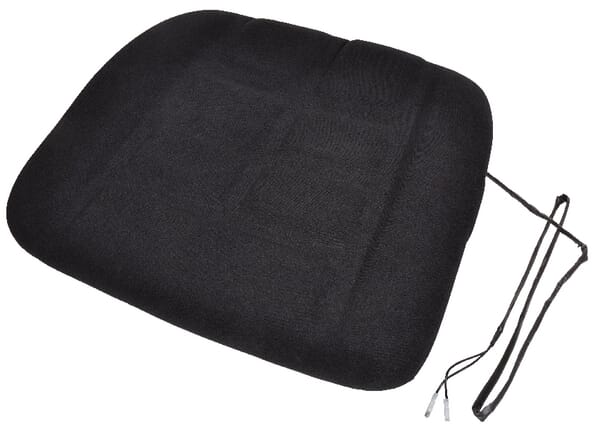

gopart Cloth seat cushion+switch 121483GP
