£192.86
excl. VAT
£231.43 incl. VAT
£231.43
incl. VAT
£192.86 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

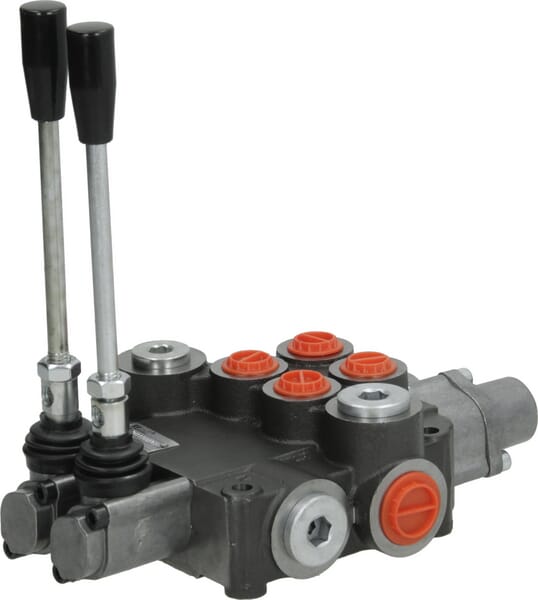

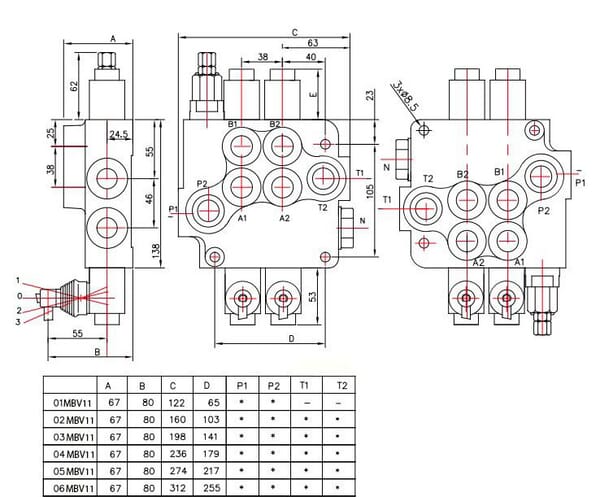

| Long description | The gopart MBV11 is a heavy-duty monoblock directional valve built for high-flow hydraulic applications. Ideal for larger agricultural equipment, such as front loaders, bale wrappers, and multi-function trailers, the MBV11 combines robust construction with smooth, precise control and modular spool configurations. |
| Max. flow rate | 80 l/min |
| Max. leakage | 6 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z80-A1L12G KY1 |
| Mounting holes distance | 103 mm |
| Number of sections | 2 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/4 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 80 L/min., Maximum operating pressure : 300 bar, Safety adjusted to 180 bar, Only for open systems, Main pressure relief valve in P-channel |
| Sealing material | Nitrile rubber [NBR] |

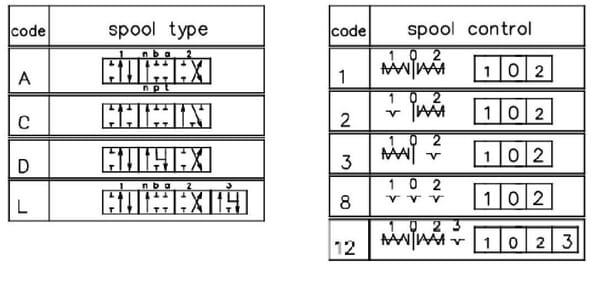

| Spools and detends code | A-1 + L-12 |
| Spools and detends description | 1x double-acting with float in pos. 4, spring return with detent in 4th pos. |
| Tank port T - Thread diameter | 3/4 Inch |
| Tank port T - Thread type | BSP |
| Total height | 67 mm |
| Total width | 160 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z80 |
| Workports thread diameter | 1/2 Inch |
| Workports thread type | BSP |
Compatible accessories
Parts and components that work with this product.
AK911GP
gopart Assembly set for MBV11 AK911GP
£36.77 excl.
£44.12 incl.
IMCL60200B

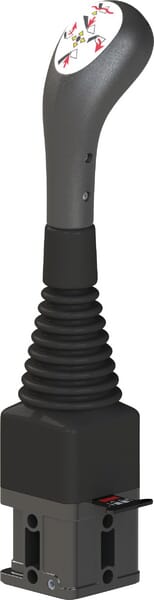

Indemar Joystick without buttons IMCL60200B
£65.62 excl.
£78.74 incl.
IMCS1000

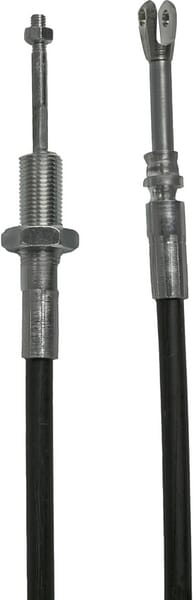

Indemar Cable for single lever 1,000mm IMCS1000
£35.83 excl.
£43.00 incl.

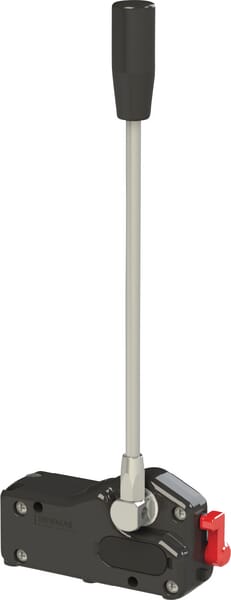

IMSL3076RL
Indemar Single lev c/w anti-revers lo IMSL3076RL
£47.60 excl.
£57.12 incl.

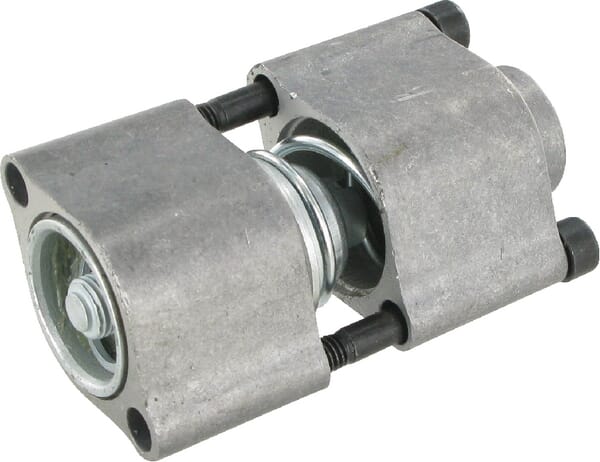

MBV911A2KR
Kramp Stopper 2 MBV 11 MBV911A2KR
£23.04 excl.
£27.65 incl.

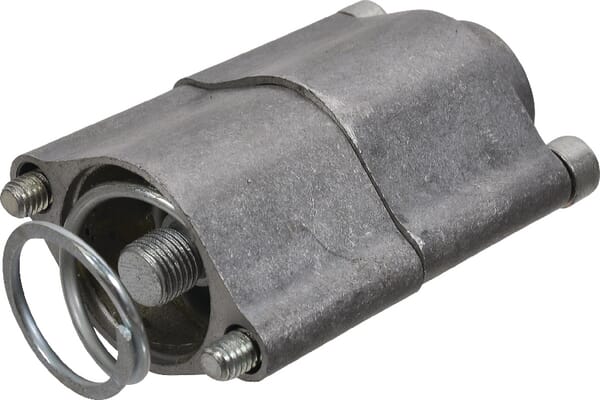

MBV911A3KR
Kramp Stopper 3 MBV 11 MBV911A3KR
£23.04 excl.
£27.65 incl.
MBV911A8KR

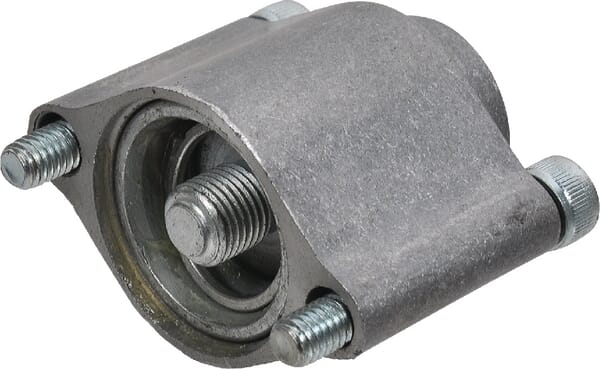

Kramp Stopper 8 MBV 11 MBV911A8KR
£19.92 excl.
£23.91 incl.
MBV911C2KR

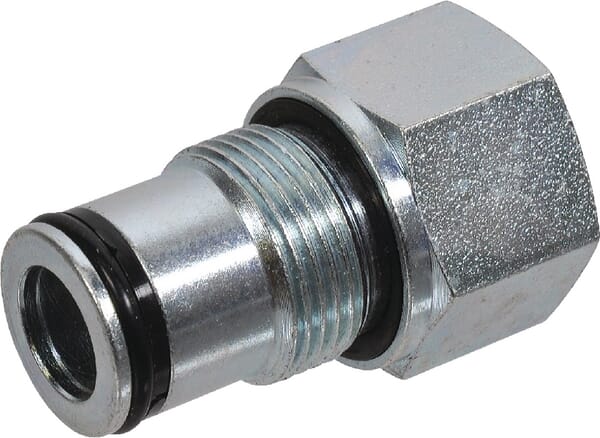

Kramp Power-Beyond connection MBV 11 MBV911C2KR
£8.66 excl.
£10.39 incl.

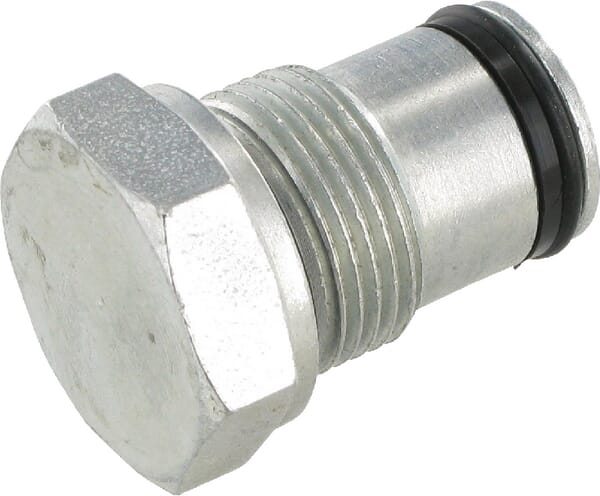

MBV911CKR
Kramp Closed-Center Connection MBV 11 MBV911CKR
£5.72 excl.
£6.86 incl.
MBV911PCKR

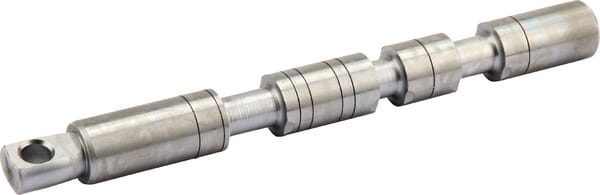

Kramp Piston C for MBV 11 MBV911PCKR
£36.90 excl.
£44.28 incl.

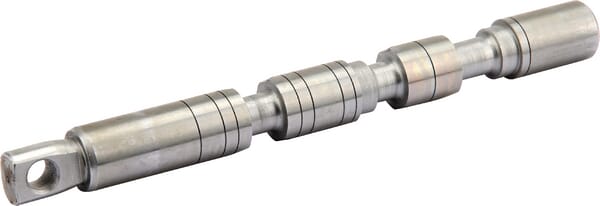

MBV911PDKR
Kramp Piston D for MBV 11 MBV911PDKR
£36.90 excl.
£44.28 incl.
Logistics
| EAN | 8716106307296 |
|---|---|
| Unit of measure | EA |
| Weight | 6654 g |
| Dimensions | 271 × 165 × 95 mm |
| Dangerous goods | No |
You might also like
BPA000309239
gopart Reflector, amber, rectangular LA75002
£1.64 excl.
£1.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000272818
gopart End plate (left) FGP455236GP FGP455299GP
£11.64 excl.
£13.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000044953
gopart Self-aligning ball bearing 35x80x21mm 1307GP
£7.89 excl.
£9.47 incl.
In stock
Expected to ship on Friday 18 September
BPA000309452
gopart Multifunction light LH LED, rectangular, 12V, 244x149x48mm, Bayonet 7-pin, LA91260L
£40.65 excl.
£48.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272835
gopart Small Gear FGP455322GP
£0.94 excl.
£1.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000343086

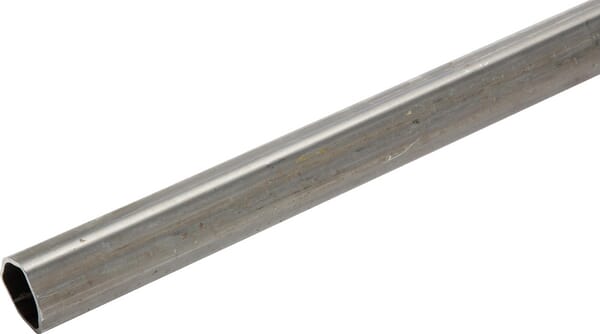

gopart Profile tube outer 20-40 triangular 43.5x3.4mm L: 1.5m PTO920OPT1500GP
