£216.94
excl. VAT
£260.33 incl. VAT
£260.33
incl. VAT
£216.94 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

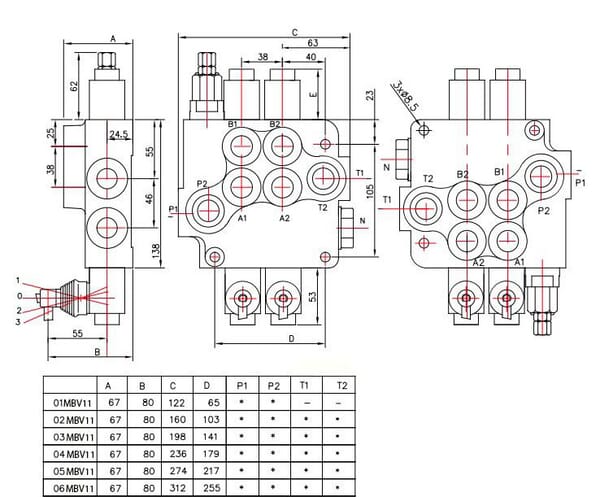

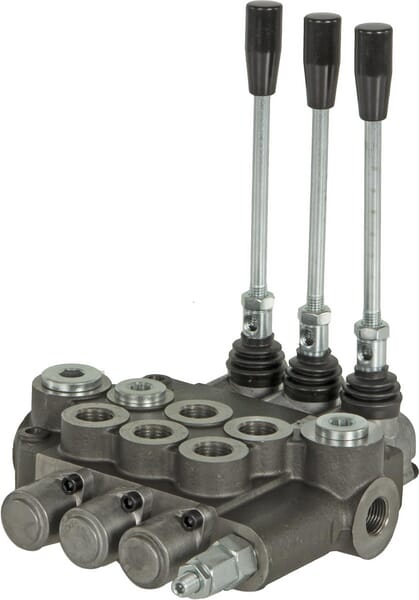

| Long description | The gopart MBV11 is a heavy-duty monoblock directional valve built for high-flow hydraulic applications. Ideal for larger agricultural equipment, such as front loaders, bale wrappers, and multi-function trailers, the MBV11 combines robust construction with smooth, precise control and modular spool configurations. |
| Max. flow rate | 80 l/min |
| Max. leakage | 6 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z80 -A1-A1-C1-G-KY1 |
| Mounting holes distance | 141 mm |
| Number of sections | 3 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/4 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 80 L/min., Maximum operating pressure : 300 bar, Safety adjusted to 180 bar, Only for open systems, Main pressure relief valve in P-channel |
| Sealing material | Nitrile rubber [NBR] |

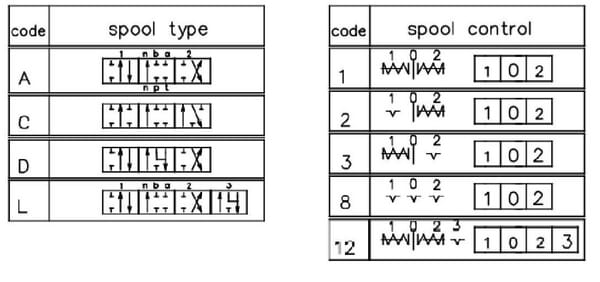

| Spools and detends code | A-1 + A-1 + C-1 |
| Spools and detends description | 2x double-acting, spring return + 1x single-acting on B, spring return |
| Tank port T - Thread diameter | 3/4 Inch |
| Tank port T - Thread type | BSP |
| Total height | 67 mm |
| Total width | 198 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z80 |
| Workports thread diameter | 1/2 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8716106307289 |
|---|---|
| Unit of measure | EA |
| Weight | 8568 g |
| Dimensions | 260 × 240 × 95 mm |
| Dangerous goods | No |
You might also like
BPA000064083
gopart Chainsaw chain file 7/32" 5.5mm, round (12x) 2005512GP
£17.94 excl.
£21.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000162850
gopart Hay fork 3 prong with handle 720100GP
£30.07 excl.
£36.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000304125
gopart John Deere 28x506 take-up shaft L41787GP
£74.13 excl.
£88.96 incl.
In stock
Expected to ship on Monday 21 September
BPA000380688

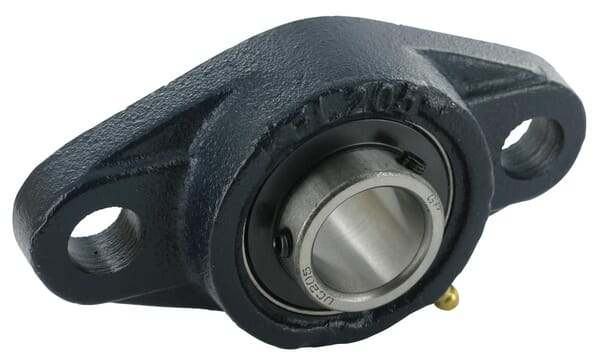

gopart Oval flange bearing complete UCFL204GP
£6.45 excl.
£7.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000140872
gopart Pedal Spring New Holland 559627GP
£1.99 excl.
£2.39 incl.
In stock
Expected to ship on Friday 18 September
BPA000041358

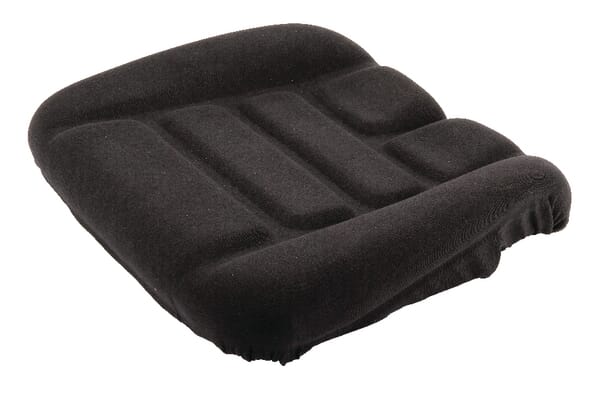

gopart Cloth seat cushion DS 85/90 127123GP
