£247.90
excl. VAT
£297.48 incl. VAT
£297.48
incl. VAT
£247.90 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

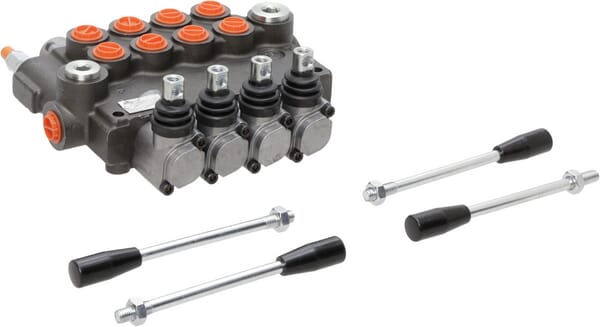

| Long description | The gopart MBV11 is a heavy-duty monoblock directional valve built for high-flow hydraulic applications. Ideal for larger agricultural equipment, such as front loaders, bale wrappers, and multi-function trailers, the MBV11 combines robust construction with smooth, precise control and modular spool configurations. |
| Max. flow rate | 80 l/min |
| Max. leakage | 6 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z80 -A1-A1-A1-A1-G-KY1 |
| Mounting holes distance | 179 mm |
| Number of sections | 4 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/4 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 80 L/min., Maximum operating pressure : 300 bar, Safety adjusted to 180 bar, Only for open systems, Main pressure relief valve in P-channel |
| Sealing material | Nitrile rubber [NBR] |
| Spools and detends code | A-1 + A-1 + A-1 + A-1 |
| Spools and detends description | 4x double-acting, spring return |
| Tank port T - Thread diameter | 3/4 Inch |
| Tank port T - Thread type | BSP |
| Total height | 67 mm |
| Total width | 236 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z80 |
| Workports thread diameter | 1/2 Inch |
| Workports thread type | BSP |
Compatible accessories
Parts and components that work with this product.
AK911GP
gopart Assembly set for MBV11 AK911GP
£36.77 excl.
£44.12 incl.
IMCL60200B

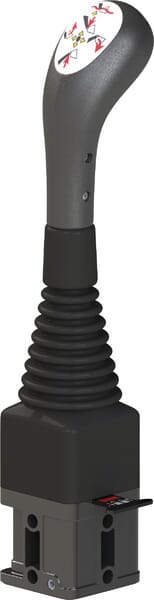

Indemar Joystick without buttons IMCL60200B
£65.62 excl.
£78.74 incl.

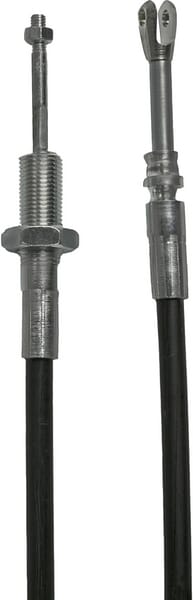

IMCS1000
Indemar Cable for single lever 1,000mm IMCS1000
£35.83 excl.
£43.00 incl.

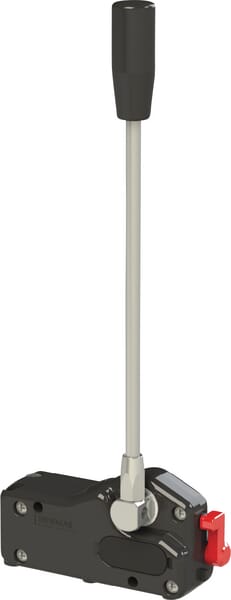

IMSL3076RL
Indemar Single lev c/w anti-revers lo IMSL3076RL
£47.60 excl.
£57.12 incl.
MBV911A12GP
gopart Stopper 12 MBV 11 MBV911A12GP
£63.45 excl.
£76.14 incl.
MBV911A12KR
Kramp Stopper 12 MBV 11 MBV911A12KR
£52.32 excl.
£62.78 incl.
MBV911A2KR
Kramp Stopper 2 MBV 11 MBV911A2KR
£23.04 excl.
£27.65 incl.
MBV911A3KR
Kramp Stopper 3 MBV 11 MBV911A3KR
£23.04 excl.
£27.65 incl.

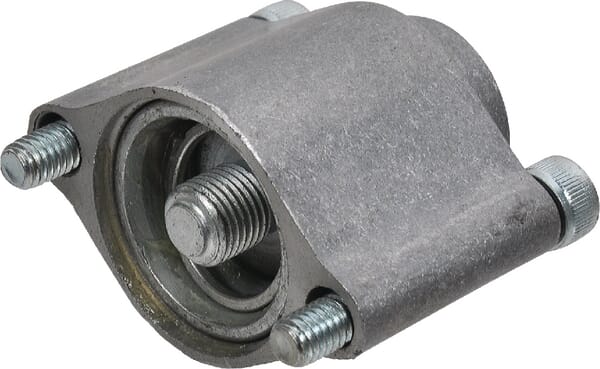

MBV911A8KR
Kramp Stopper 8 MBV 11 MBV911A8KR
£19.92 excl.
£23.91 incl.

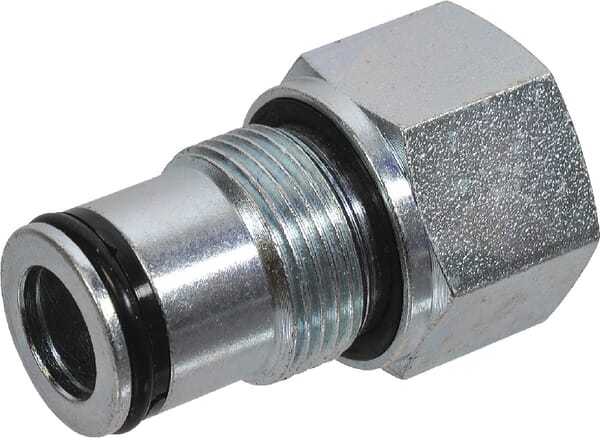

MBV911C2KR
Kramp Power-Beyond connection MBV 11 MBV911C2KR
£8.66 excl.
£10.39 incl.

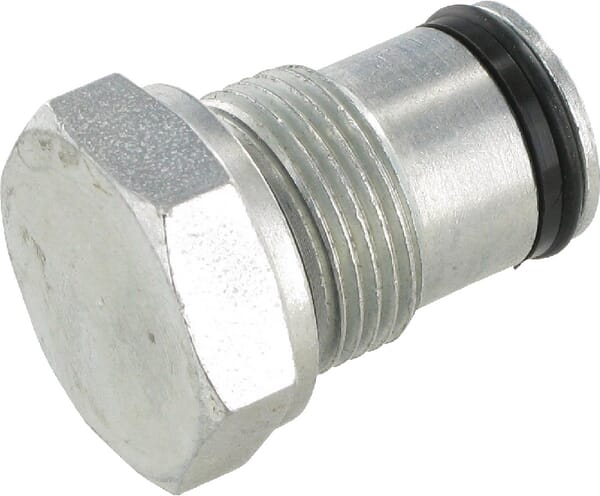

MBV911CKR
Kramp Closed-Center Connection MBV 11 MBV911CKR
£5.72 excl.
£6.86 incl.
MBV911PCKR
Kramp Piston C for MBV 11 MBV911PCKR
£36.90 excl.
£44.28 incl.
MBV911PDKR

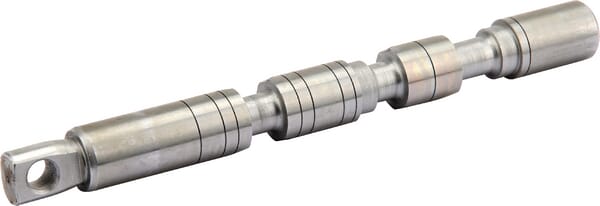

Kramp Piston D for MBV 11 MBV911PDKR
£36.90 excl.
£44.28 incl.
MBV911PLKR
Kramp Piston L for MBV 11 MBV911PLKR
£36.90 excl.
£44.28 incl.
Logistics
| EAN | 8716106307272 |
|---|---|
| Unit of measure | EA |
| Weight | 10384 g |
| Dimensions | 255 × 250 × 95 mm |
| Dangerous goods | No |
You might also like
BPA000227191
gopart Assembly set for MBV11 AK911GP
£36.77 excl.
£44.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000063158
gopart Safety Winter Shoe Basic Mid S3 39 1966202039GP
£24.27 excl.
£29.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000069435
gopart Sealing ring of engine, rear, 3-cylinder 2418F475GP
£11.78 excl.
£14.14 incl.
In stock
Expected to ship on Tuesday 22 September

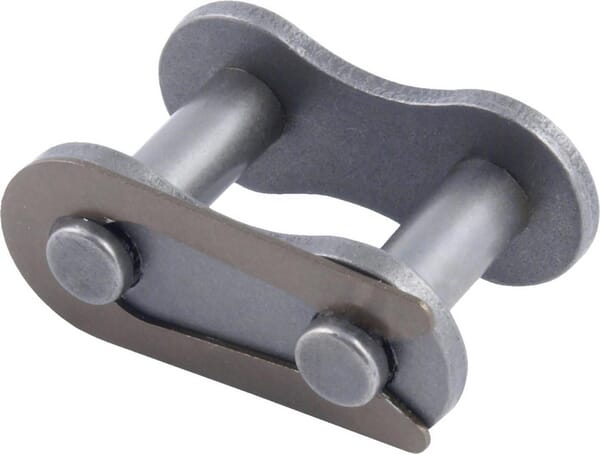

BPA000152903
gopart Connecting link ASA 60 60A1CLGPP010
£0.68 excl.
£0.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000276570
gopart Hydraulic pump 8.2 ccm G231941010010N
£169.29 excl.
£203.15 incl.
In stock
Expected to ship on Tuesday 22 September

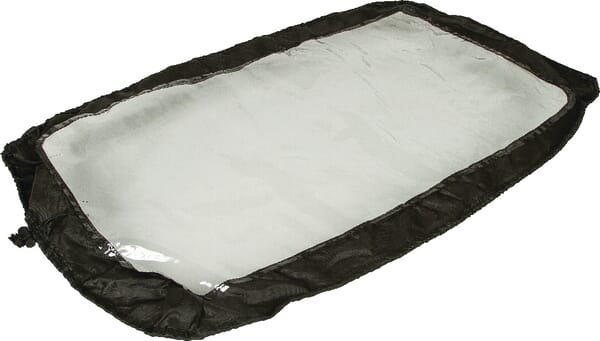

BPA000272774
gopart Rain Cover FGP455245GP
£7.50 excl.
£9.00 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000154944

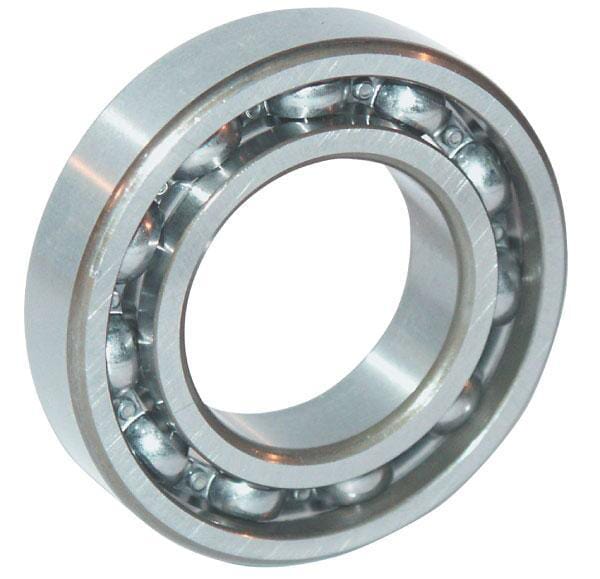

SKF Deep groove ball bearing 6x13x3.5mm 6186
