£61.37
excl. VAT
£73.64 incl. VAT
£73.64
incl. VAT
£61.37 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Extra info | Double acting, spring return |
| Handle length | 80 mm |
| Includes | Control valve, Control lever |

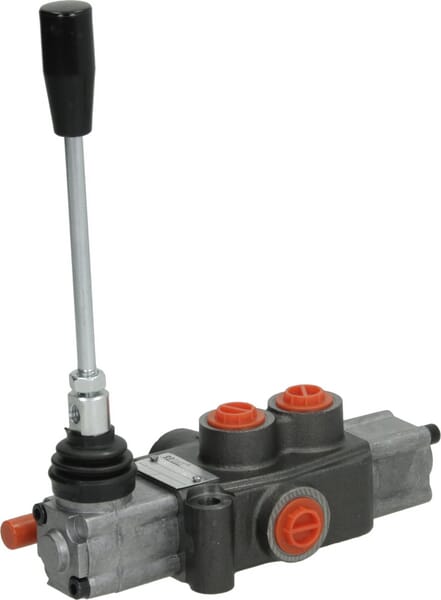

| Long description | The gopart MBV4 is a compact monoblock directional valve designed for low to medium hydraulic flow rates, making it ideal for small agricultural and mobile machinery. Its simple design, low weight, and flexible control options make it a reliable choice as control valves for cylinders and motors on small trailers, presses, log splitters and similar applications. |
| Max. flow rate | 35 l/min |
| Max. leakage | 5 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | P35-A1-G-KY1 |
| Number of sections | 1 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/8 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 35 L/min., Maximum operating pressure : 250 bar, Only for open systems, Main pressure relief valve in P-channel |
| Sealing material | Nitrile rubber [NBR] |
| Spools and detends code | A-1 |
| Spools and detends description | 1x double-acting, spring return |
| Tank port T - Thread diameter | 3/8 Inch |
| Tank port T - Thread type | BSP |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | P35 |
| Workports thread diameter | 3/8 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8716106307500 |
|---|---|
| Unit of measure | EA |
| Weight | 1958 g |
| Dimensions | 222 × 150 × 118 mm |
| Dangerous goods | No |
You might also like
BPA000149508

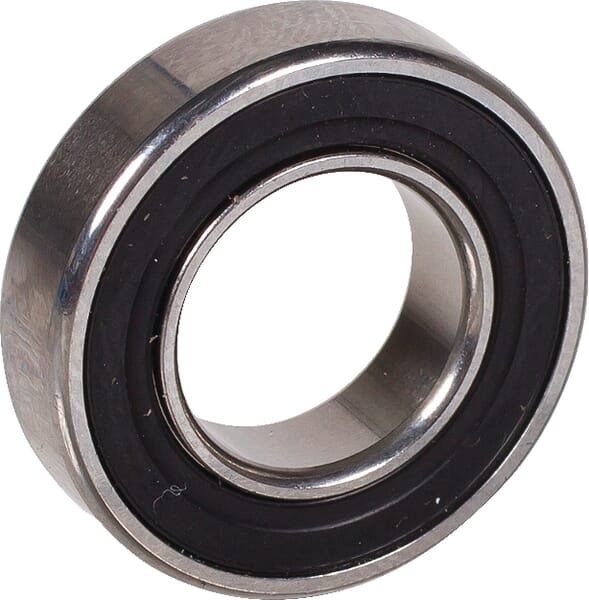

gopart Deep groove ball bearing 20x42x12mm 60042RSRVSGP
£4.85 excl.
£5.82 incl.
In stock
Expected to ship on Monday 21 September
BPA000090776

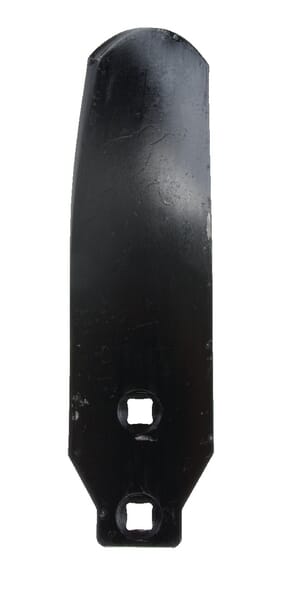

gopart Guide Plate LH Narrow Horsch 34060862GP
£14.07 excl.
£16.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367738
gopart Handle Grip SP3152054
£0.23 excl.
£0.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000380548
gopart Bearing insert 50x90x23mm UC210GP
£12.38 excl.
£14.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000351102

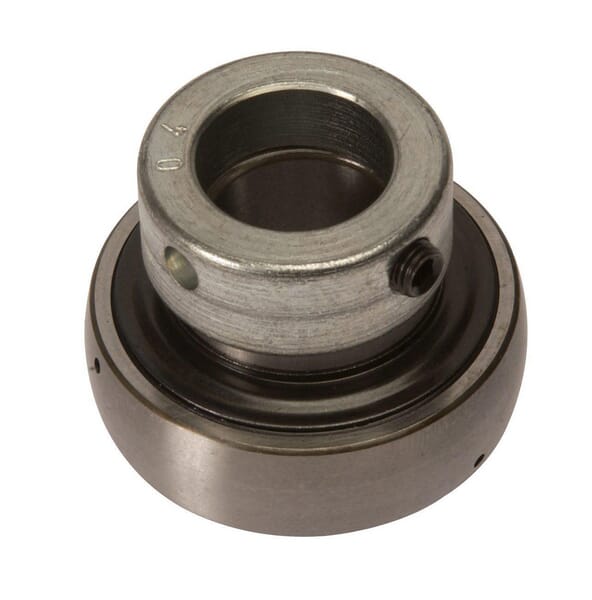

gopart Deep groove ball bearing 25x52x30.5mm SA205GP
