£139.12
excl. VAT
£166.94 incl. VAT
£166.94
incl. VAT
£139.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Adjustment type | Socket screw |
|---|---|
| Extra info | 3x double acting, spring return |
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

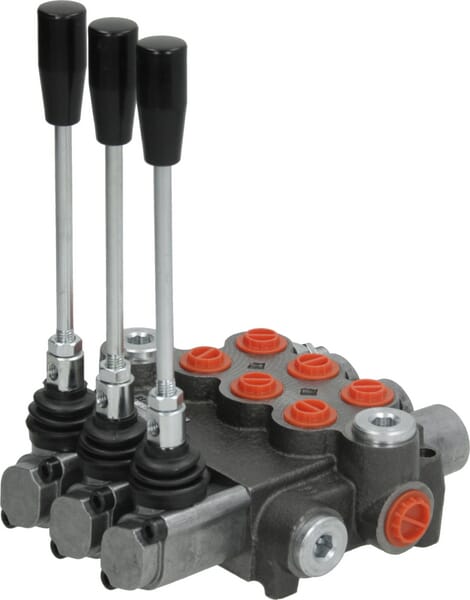

| Long description | The gopart MBV5 is a versatile and widely used monoblock valve for medium-flow hydraulic systems. Suitable for a range of applications in agriculture, landscaping, and municipal machinery, it offers multiple spool configurations and can be equipped with mechanical, pneumatic, or cable control kits. Commonly found on tractors, log splitters, and tipping trailers. |
| Max. flow rate | 50 l/min |
| Max. leakage | 5 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z50 A1A1A1(G3/8)KY1 |

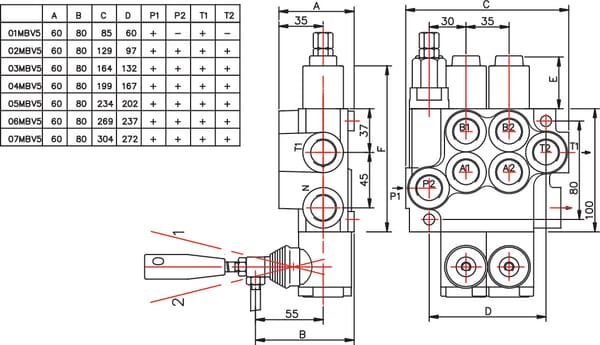

| Mounting holes distance | 132 mm |
| Number of sections | 3 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/8 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 50L/min., Maximum operating pressure : 300 bar, Main pressure relief valve and check valve in P-channel, Safety adjusted to 180 bar |
| Sealing material | Nitrile rubber [NBR] |

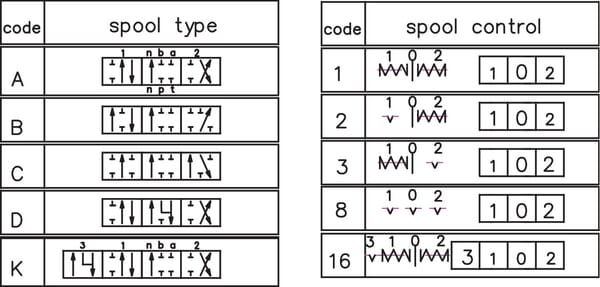

| Spools and detends code | A-1 + A-1 + A-1 |
| Spools and detends description | 3x double-acting, spring return |
| Tank port T - Thread diameter | 1/2 Inch |
| Tank port T - Thread type | BSP |
| Total height | 60 mm |
| Total width | 164 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z50 |
| Workports thread diameter | 3/8 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8716106307357 |
|---|---|
| Unit of measure | EA |
| Weight | 5608 g |
| Dimensions | 260 × 190 × 95 mm |
| Dangerous goods | No |
You might also like
BPA000343064
gopart Profile tube out/in 10-20 triangular 36x3,2mm L: 3m PTO910OPT3000GP
£82.73 excl.
£99.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000029797

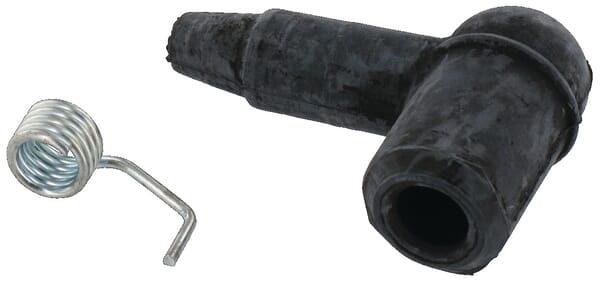

gopart Spark plug socket 11064051000GP
