Product details
| Adjustment type | Socket screw |
|---|---|
| Extra info | 5x double acting, spring return |
| Handle length | 80 mm |
| Includes | Control valve, Control lever(s) |

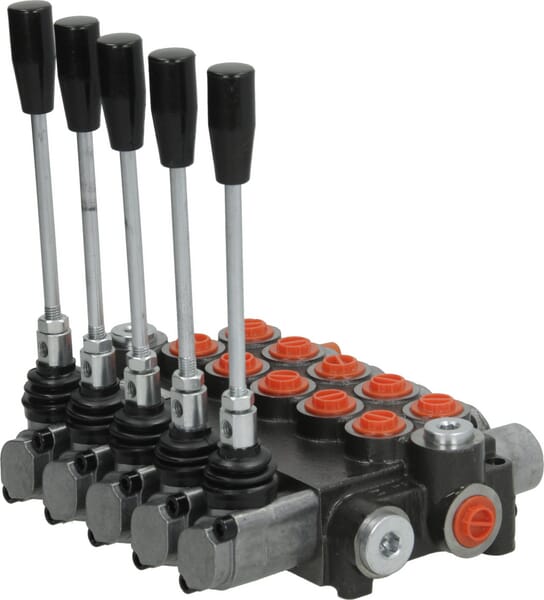

| Long description | The gopart MBV5 is a versatile and widely used monoblock valve for medium-flow hydraulic systems. Suitable for a range of applications in agriculture, landscaping, and municipal machinery, it offers multiple spool configurations and can be equipped with mechanical, pneumatic, or cable control kits. Commonly found on tractors, log splitters, and tipping trailers. |
| Max. flow rate | 50 l/min |
| Max. leakage | 5 cm³/min |
| Max return line pressure | 50 BAR |
| Max working pressure | 300 BAR |
| Model code | Z50 A1A1A1A1A1(G3/8)KY1 |

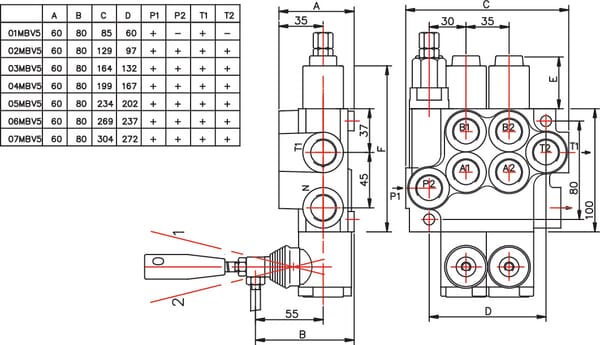

| Mounting holes distance | 202 mm |
| Number of sections | 5 |
| Outlet port option | Open centre |
| Pressure port P - Thread diameter | 3/8 Inch |
| Pressure port P - Thread type | BSP |
| Pressure range relief valve | 63-200 BAR |
| Product details | Flow up to 50L/min., Maximum operating pressure : 300 bar, Main pressure relief valve and check valve in P-channel, Safety adjusted to 180 bar |
| Sealing material | Nitrile rubber [NBR] |

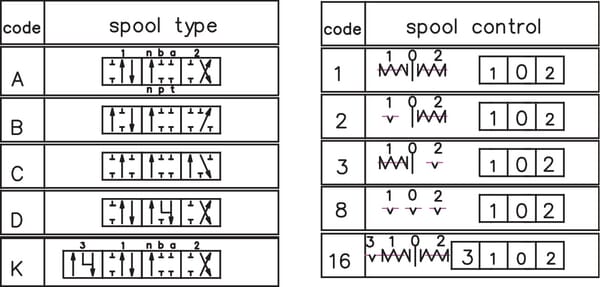

| Spools and detends code | A-1 + A-1 + A-1 + A-1 |
| Spools and detends description | 5x double-acting, spring return |
| Tank port T - Thread diameter | 1/2 Inch |
| Tank port T - Thread type | BSP |
| Total height | 60 mm |
| Total width | 234 mm |
| Type | Monobloc |
| Type actuation | Hand operated |
| Unit | Each |
| Valve series | Z50 |
| Workports thread diameter | 3/8 Inch |
| Workports thread type | BSP |
Logistics
| EAN | 8716106307326 |
|---|---|
| Unit of measure | EA |
| Weight | 8421 g |
| Dimensions | 250 × 195 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000309581
gopart Lower link ball Cat.4/3 diameter 37/85x57mm LA985370GP
£18.01 excl.
£21.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000031526
gopart Roller chain 10B2 10B2GPP005
£20.28 excl.
£24.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367675
gopart Wire Clamp Press Plate SP3150636
£0.19 excl.
£0.23 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000133718
gopart Hydraulic pump 11.3 ccm 5179722N
£117.96 excl.
£141.55 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000343171

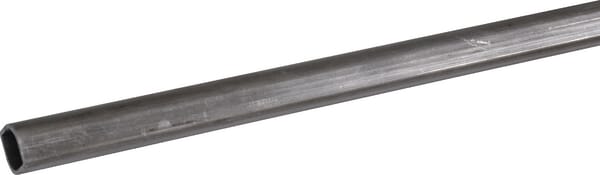

gopart Profile tube inner lemon L22 diameter in: 26.5 diameter out: 34.5x34.5x4mm L: 3m PTO9L22IPT3000GP
