£262.83
excl. VAT
£315.40 incl. VAT
£315.40
incl. VAT
£262.83 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

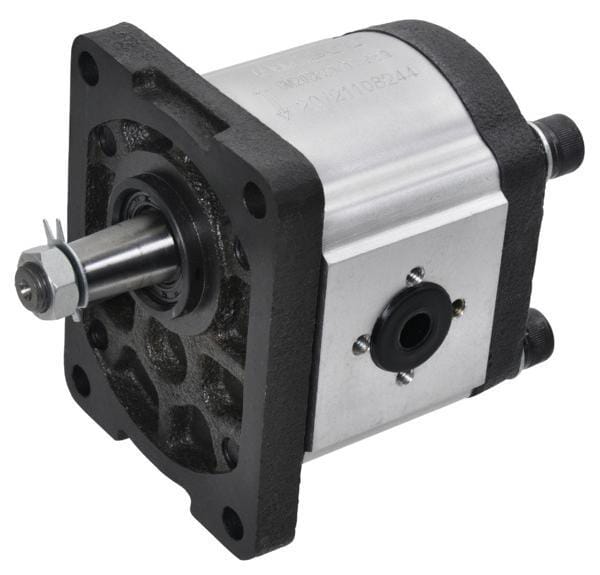

Product details
| Center to center pressure side | 30 mm |
|---|---|
| Center to center suction side | 30 mm |
| Connection | European 4-hole flange |
| Length body | 102 mm |
| Length flange to center bore | 46.5 mm |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |
| P1 (bar) | 200 BAR |
| Pressure flange | 1G08 |
| Product details | Gear motors from gopart can be used in many areas, especially for mobile and industrial applications., Maximum pressure on the leakage oil line: 5 bar, The gear motors have two directions of rotation and must have an external leakage oil connection. |
| Rotational speed min. | 500 r/min |
| Rotation max. | 3500 r/min |
| Shaft type | Tapered shaft 1 : 8 |
| Stroke volume | 8 cm³/rev |
| Suction flange | 1G08 |
| Unit | Each |
Logistics
| EAN | 8716106140053 |
|---|---|
| Unit of measure | EA |
| Weight | 3496 g |
| Dimensions | 156 × 123 × 100 mm |
| Dangerous goods | No |
You might also like
BPA000104133

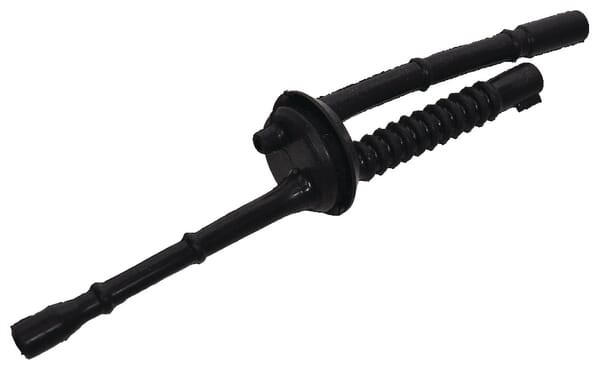

gopart Fuel line 41403587702GP
£4.96 excl.
£5.95 incl.
In stock
Expected to ship on Monday 21 September
BPA000272460

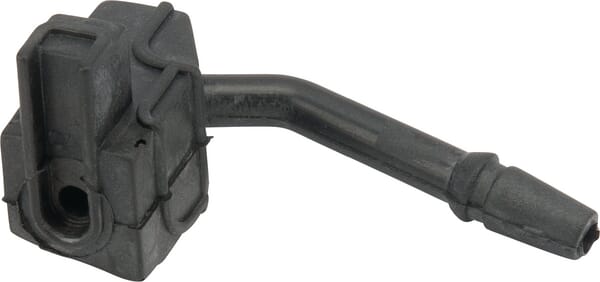

gopart Oil pump housing rubber FGP440004
£5.78 excl.
£6.94 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367673
gopart Bolt J-Bolt SP3150634
£0.45 excl.
£0.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000275615
gopart Hydraulic pump 11.3 ccm G150403101012N
£220.26 excl.
£264.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000159741
gopart Ball bearing box 50pcs 6972RSSS
£88.80 excl.
£106.56 incl.
In stock
Expected to ship on Monday 21 September
BPA000272752

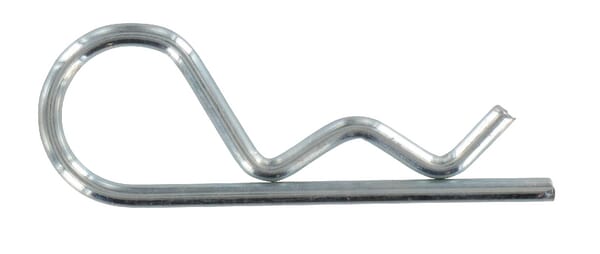

gopart Pin FGP455211GP
