£393.97
excl. VAT
£472.76 incl. VAT
£472.76
incl. VAT
£393.97 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

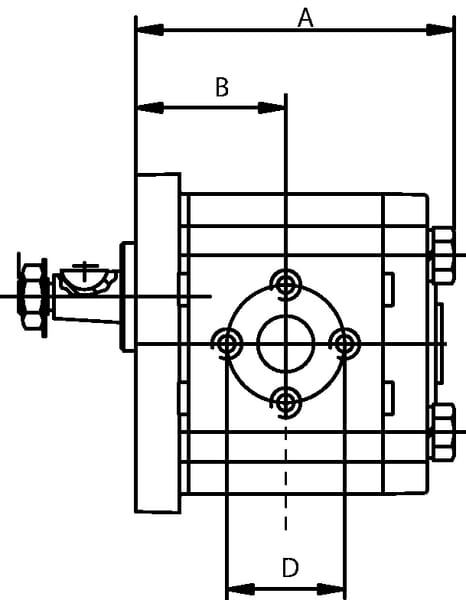

| AHousing length | 196.3 mm |
|---|---|
| BConnection port to flange distance | 45 mm |
| Displacement | 16 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| EPressure port bolts circle diameter | 35 mm |
| Flange type norm | German |
| Main port size code | 2GB12 |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 650 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port size code | 1GB12 |
| Product details | Kramp and gopart OE gear pumps |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft type | Tapered |
| Unit | Each |
Logistics
| EAN | 8716106853243 |
|---|---|
| Unit of measure | EA |
| Weight | 5680 g |
| Dimensions | 269 × 135 × 122 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000009053
gopart Hydraulic pump double 16 and 14 ccm 01175992N
£335.97 excl.
£403.16 incl.
In stock
Expected to ship on Friday 18 September
BPA000272847
gopart Spacer bush FGP455239GP FGP455346GP
£0.47 excl.
£0.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000367671
gopart Wire Assembly SP3150631
£1.86 excl.
£2.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272817
gopart Clevis pin C FGP455236GP FGP455298GP
£0.36 excl.
£0.43 incl.
In stock
Expected to ship on Friday 18 September
BPA000127256

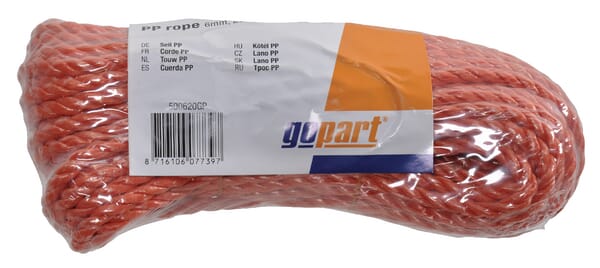

gopart PP rope orange 6mm, 20m, 500620GP
