£156.96
excl. VAT
£188.35 incl. VAT
£188.35
incl. VAT
£156.96 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

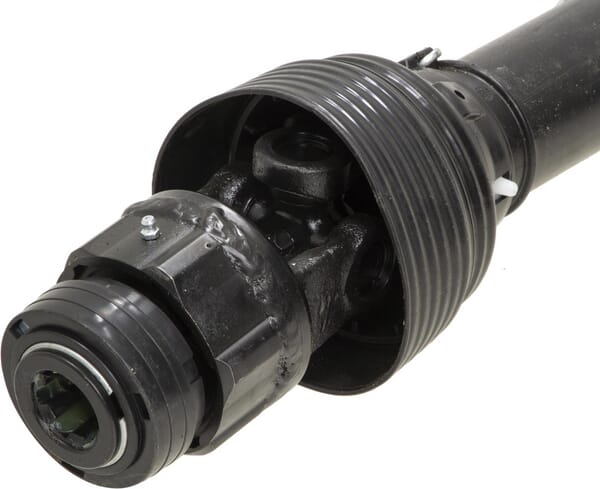

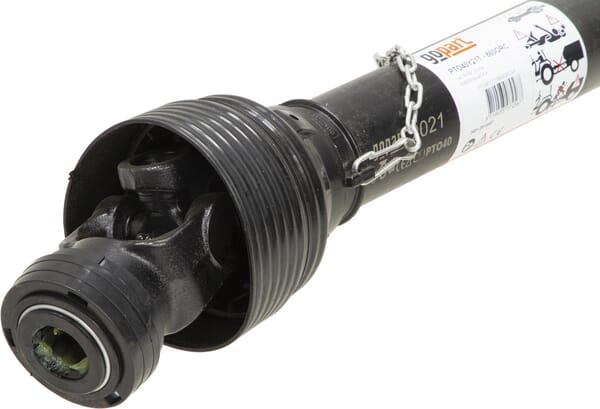

Product details
| Attachment machine side | Overrunning clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |

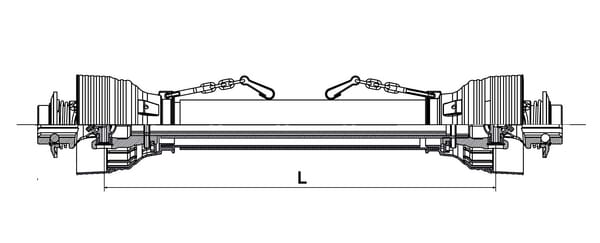

| Length | 510 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with freewheeling clutch attached, a cost-effective alternative in the lower power range |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | PTO40, Max. dynamic capacity 540 rpm: 26kW, 460Nm, Max. dynamic capacity 1000 rpm: 40kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35kW, 620Nm, Max. dynamic capacity 1000 rpm: 54kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm: 74kW, 710Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Meets all international safety requirements |
| Size code | PTO 10 |
| Technical info | PTO40, Max. dynamic capacity 540 rpm: 26 kW, 460Nm, Max. dynamic capacity 1000 rpm: 40 kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35 kW, 620Nm, Max. dynamic capacity 1000 rpm: 54 kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm:74kW, 710Nm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
PTO910Y21DY1186GP
gopart Yoke, Quick disconnect, 1-1/8"-6 spline, PTO 10 PTO910Y21DY1186GP
£23.37 excl.
£28.04 incl.
PTO910Y21DY13821GP
gopart Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 10 PTO910Y21DY13821GP
£25.91 excl.
£31.09 incl.
PTO910Y21DY83238GP

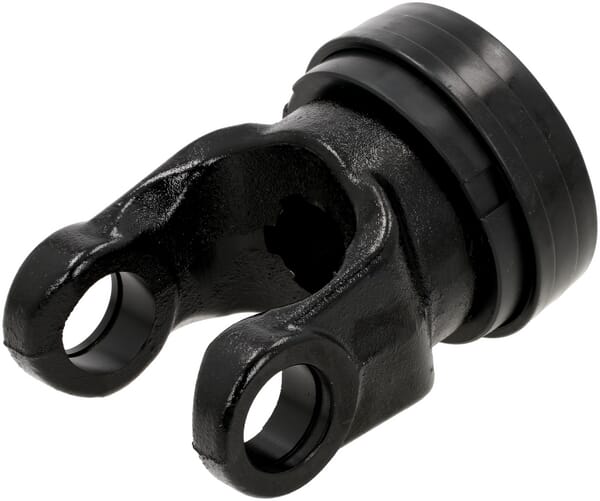

gopart Yoke, Quick disconnect, 38x32mm -8 spline, PTO 10 PTO910Y21DY83238GP
£26.42 excl.
£31.70 incl.
Logistics
| EAN | 8719493072228 |
|---|---|
| Unit of measure | EA |
| Weight | 9000 g |
| Dimensions | 800 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000363139

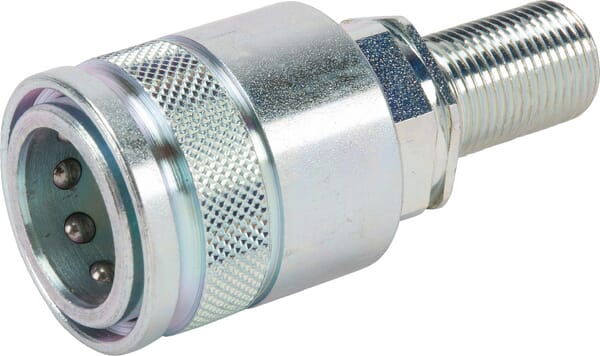

gopart Quick coupling SKP Female bulkhead 12L, SKPF12N18N
£7.98 excl.
£9.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000128316

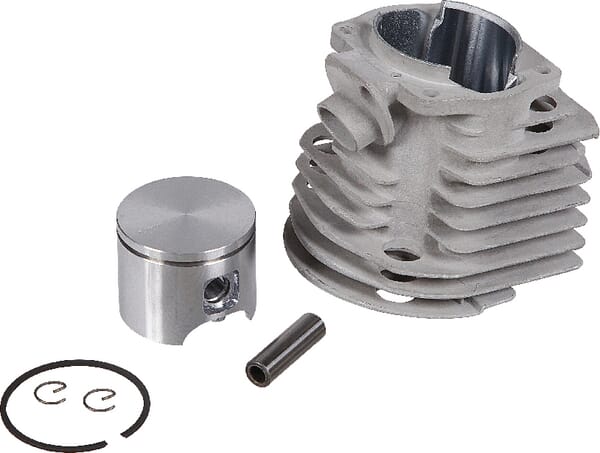

gopart Cylinder complete, Suitable for Husqvarna 503169171GP
£110.61 excl.
£132.73 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272445

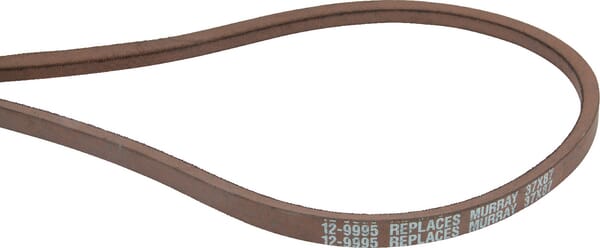

gopart V-belt 13.0x2474mm FGP430132
