£244.95
excl. VAT
£293.94 incl. VAT
£293.94
incl. VAT
£244.95 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Attachment machine side | Radial pin clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 3.2 mm |

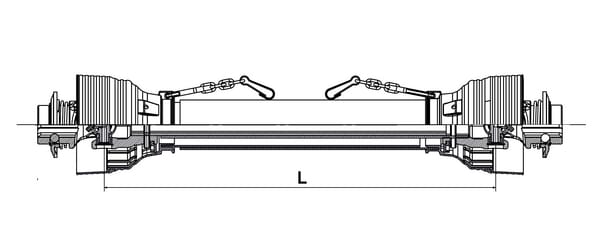

| Length | 1310 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with attached radial pin clutches suitable for various agricultural machines |
| Max. clutch torque | 900 N·m |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | PTO20, Max. dynamic capacity 540 rpm: 15kW, Max. dynamic capacity 1000 rpm: 23kW, PTO40, Max. dynamic capacity 540 rpm: 26kW, Max. dynamic capacity 1000 rpm: 40kW, PTO50, Max. dynamic capacity 540 rpm: 35kW, Max. dynamic capacity 1000 rpm: 54kW, PTO60, Max. dynamic capacity 540 rpm: 47kW, Max. dynamic capacity 1000 rpm: 74kW |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Cost-effective alternative in lower power range, Meets all international safety requirements |
| Size code | PTO 20 |
| Unit | Each |
Logistics
| EAN | 8719493073942 |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 1620 × 140 × 140 mm |
| Dangerous goods | No |
You might also like
BPA000343184

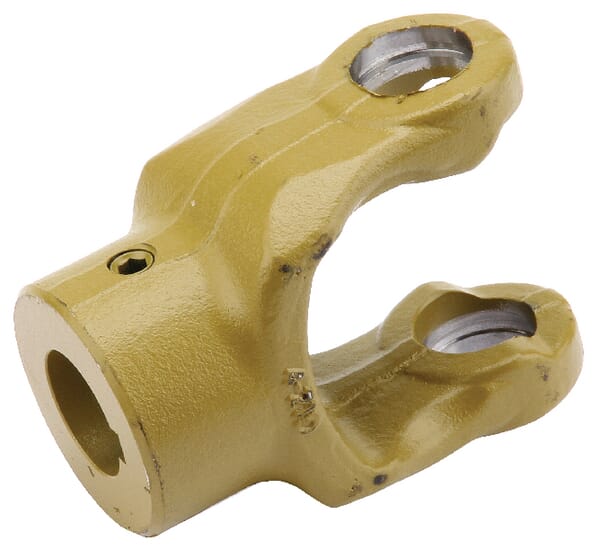

gopart Yoke, Hub, 30mm, L23 PTO9L23RB30GP
£69.48 excl.
£83.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000281638

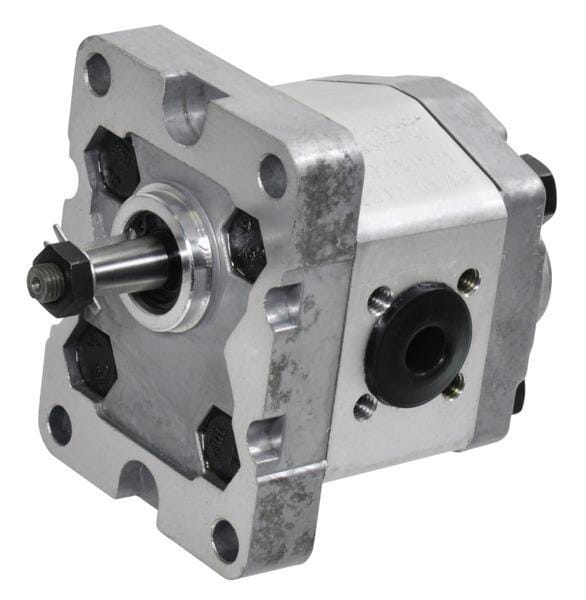

gopart Gear pump Gr1 5cc D C18E GP105D3030C18EGP
