£243.52
excl. VAT
£292.22 incl. VAT
£292.22
incl. VAT
£243.52 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Attachment machine side | Radial pin clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |

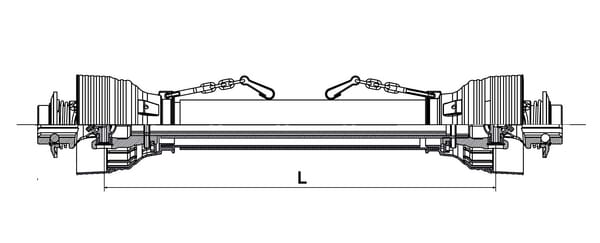

| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with attached radial pin clutches suitable for various agricultural machines |
| Max. clutch torque | 800 N·m |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | PTO20, Max. dynamic capacity 540 rpm: 15kW, Max. dynamic capacity 1000 rpm: 23kW, PTO40, Max. dynamic capacity 540 rpm: 26kW, Max. dynamic capacity 1000 rpm: 40kW, PTO50, Max. dynamic capacity 540 rpm: 35kW, Max. dynamic capacity 1000 rpm: 54kW, PTO60, Max. dynamic capacity 540 rpm: 47kW, Max. dynamic capacity 1000 rpm: 74kW |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Cost-effective alternative in lower power range, Meets all international safety requirements |
| Size code | PTO 40 |
| Unit | Each |
Logistics
| EAN | 8719493068658 |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 1321 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000019837

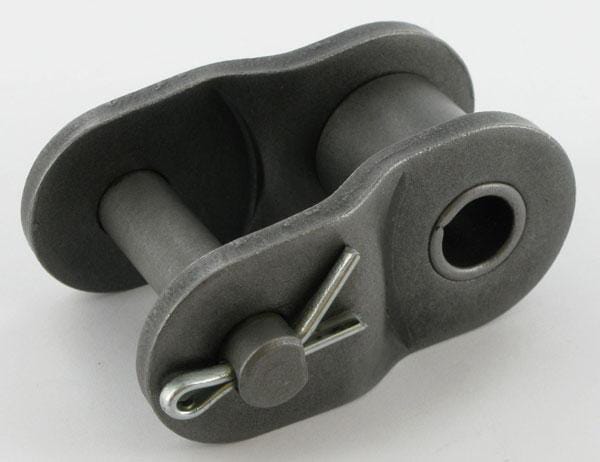

gopart Offset link 06B1 06B1OLGPP010
£0.54 excl.
£0.65 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000343117
gopart Friction disc clutch PTO 50 PTO950FCGP
£169.12 excl.
£202.94 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000339227

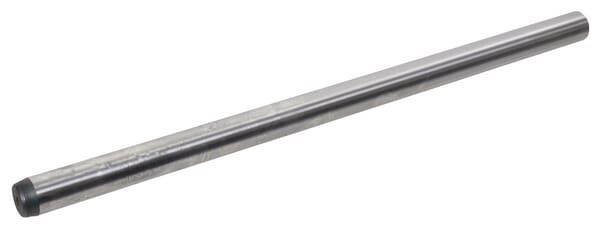

gopart John Deere 28.5x538 take-up shaft R46513GP
£178.55 excl.
£214.26 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000086966

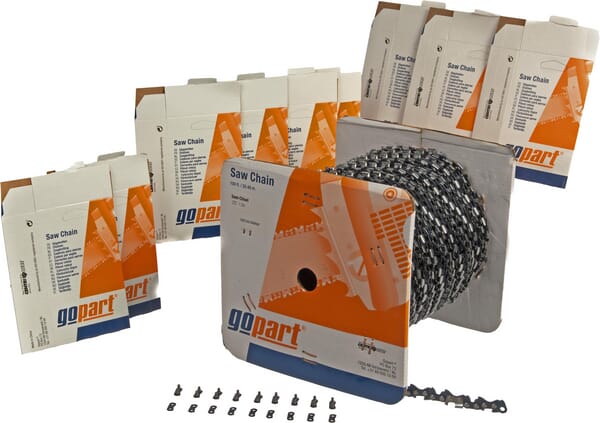

gopart Saw chain .325" 1.3mm 1848 DL 100ft semi chisel 32513S100RGP
£324.42 excl.
£389.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000040454
gopart Right arm rest CS85/H90 119487GP
£48.72 excl.
£58.46 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000272810
gopart Conrod FGP455236GP FGP455290GP
£5.63 excl.
£6.76 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000144404

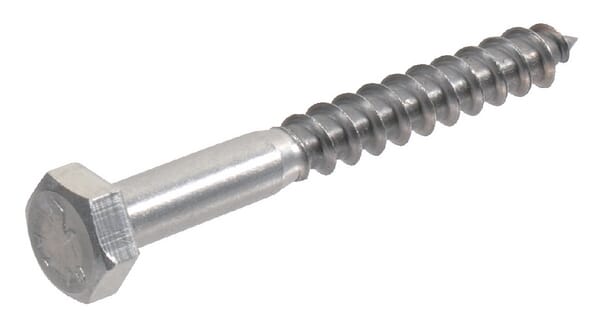

Kramp Wood screw 10x50mm, 17mm hex head, stainless steel, DIN 571 5711050RVSP025
