£267.95
excl. VAT
£321.54 incl. VAT
£321.54
incl. VAT
£267.95 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

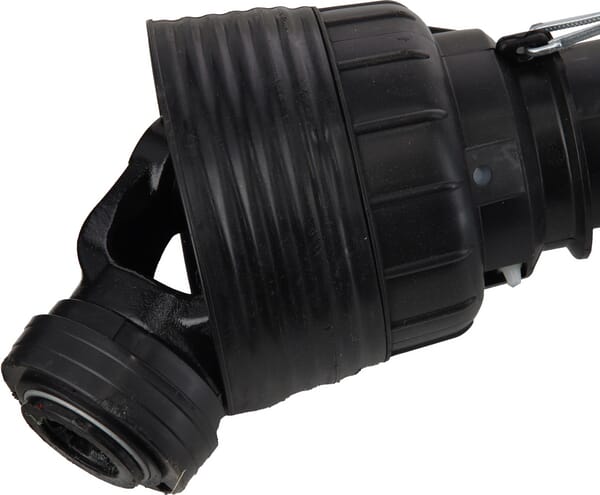

| Attachment machine side | Friction clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.6 mm |
| Cross joint length by tractor side | 79.6 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 3.8 mm |

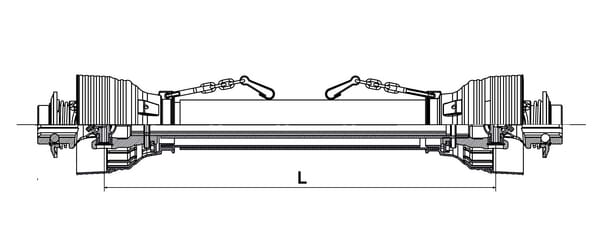

| Length | 1010 mm |
| Locking type by machine side | Clamp bolt (interfering) |
| Locking type by tractor side | Collar lock |

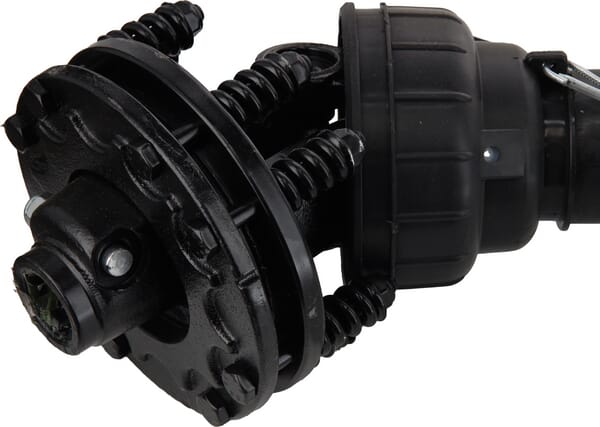

| Long description | PTO shafts with attached friction plate clutches suitable for various agricultural machines |
| Max. clutch torque | 1200 N·m |
| Max static torque | 90 N·m |
| Outer tube large outside diameter | 51.5 mm |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Product details | PTO40, Max. dynamic capacity 540 rpm: 26kW, 460Nm, Max. dynamic capacity 1000 rpm: 40kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35kW, 620Nm, Max. dynamic capacity 1000 rpm: 54kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm: 74kW, 710Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Meets all international safety requirements, Cost-effective alternative in lower power range |
| Size code | PTO 50 |
| Technical info | PTO40, Max. dynamic capacity 540 rpm: 26 kW, 460Nm, Max. dynamic capacity 1000 rpm: 40 kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35 kW, 620Nm, Max. dynamic capacity 1000 rpm: 54 kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm:74kW, 710Nm |
| Unit | Each |
Logistics
| EAN | 8719493068672 |
|---|---|
| Unit of measure | EA |
| Weight | 23000 g |
| Dimensions | 1300 × 200 × 151 mm |
| Dangerous goods | No |
You might also like
BPA000056518
gopart Roller chain 16B2 16B2GPP005
£47.54 excl.
£57.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272809
gopart Sling bar (straight) FGP455236GP FGP455289GP
£2.90 excl.
£3.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000272477
gopart Vibration damper 501628701, suitable for Husqvarna FGP440022
£6.14 excl.
£7.37 incl.
In stock
Expected to ship on Friday 18 September
BPA000343076

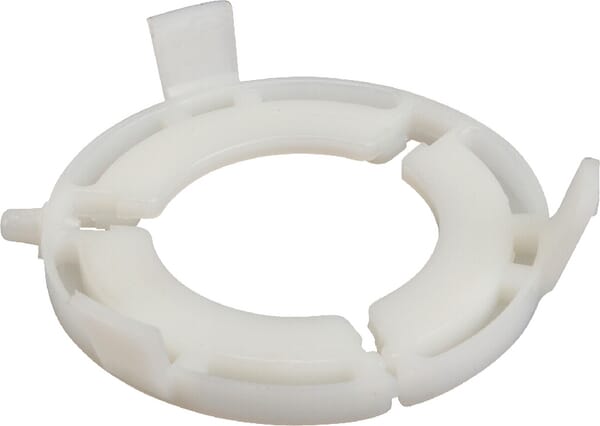

gopart Bearing ring diameter 53mm PTO9144400100GP
£4.51 excl.
£5.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000131536
gopart Thrust ball bearing 51108GP
£4.96 excl.
£5.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000343135
gopart PTO50 Shearbolt clutch PTO950Y21SBCGP
£87.18 excl.
£104.62 incl.
In stock
Expected to ship on Friday 18 September
Recently viewed
BPA000196183

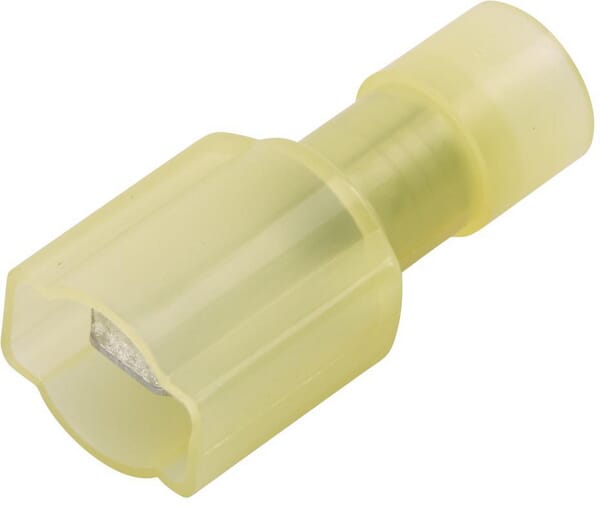

Hella Terminal blade male, yellow, 4-6mm² 6.3x0.8mm, blister (25x), 8KW744705003
