£236.02
excl. VAT
£283.22 incl. VAT
£283.22
incl. VAT
£236.02 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Attachment machine side | Overrunning clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.6 mm |
| Cross joint length by tractor side | 79.6 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 3.8 mm |

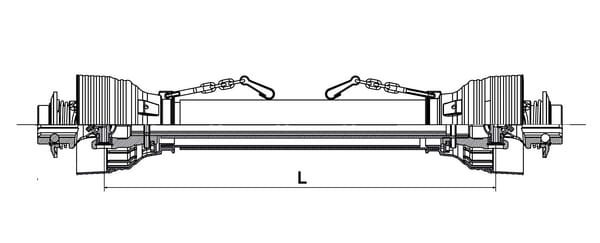

| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with freewheeling clutch attached, a cost-effective alternative in the lower power range |
| Outer tube large outside diameter | 51.5 mm |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Product details | PTO40, Max. dynamic capacity 540 rpm: 26kW, 460Nm, Max. dynamic capacity 1000 rpm: 40kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35kW, 620Nm, Max. dynamic capacity 1000 rpm: 54kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm: 74kW, 710Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Meets all international safety requirements |
| Size code | PTO 50 |
| Technical info | PTO40, Max. dynamic capacity 540 rpm: 26 kW, 460Nm, Max. dynamic capacity 1000 rpm: 40 kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35 kW, 620Nm, Max. dynamic capacity 1000 rpm: 54 kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm:74kW, 710Nm |
| Unit | Each |
Logistics
| EAN | 8719493069426 |
|---|---|
| Unit of measure | EA |
| Weight | 18000 g |
| Dimensions | 1280 × 160 × 160 mm |
| Dangerous goods | No |
