£16.30
excl. VAT
£19.56 incl. VAT
£19.56
incl. VAT
£16.30 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction and agricultural machines, Hydraulic tools, Applications in sensitive environments, Mineral oil-based fluids |
|---|---|
| Benefits | User-friendly, Low leakage, No air pockets during coupling |
| Body size | 3/8 Inch |
| Connectable under pressure | No |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Details | One-handed coupling, With special flat valve, Protected against accidental decoupling |

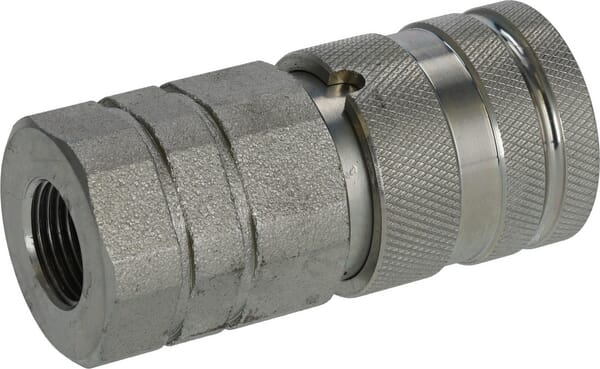

| Long description | Quick release coupling female SKV-F gopart |
| Material | Steel |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| Outside diameter | 32 mm |
| Properties | Locks on both sides |
| Seal material | Nitrile rubber [NBR], Teflon (PTFE) |
| Shape | Straight |
| Size code | BG 2 |
| Total length | 69 mm |
| Unit | Each |
| Working pressure | 350 BAR |
Logistics
| EAN | 8719493095081 |
|---|---|
| Unit of measure | EA |
| Weight | 296 g |
| Dimensions | 70 × 32 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000367731
gopart Gauge Level Plate SP3152046
£10.17 excl.
£12.20 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000131540
gopart Thrust ball bearing 51109GP
£5.08 excl.
£6.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000281560
gopart Membrane Set GND29GP
£4.22 excl.
£5.06 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247357
gopart Carburettor repair kit, Tillotson DG2HUGP
£4.21 excl.
£5.05 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000376199
gopart Arm rest set TS90007GP
£106.57 excl.
£127.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000152911

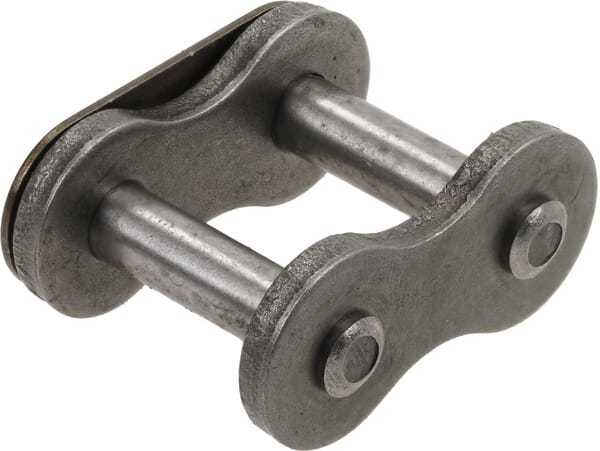

gopart Connecting link ASA 60H 60AH1CLGPP010
