£12.29
excl. VAT
£14.75 incl. VAT
£14.75
incl. VAT
£12.29 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction and agricultural machines, Hydraulic tools, Applications in sensitive environments, Mineral oil-based fluids |
|---|---|
| Benefits | User-friendly, Low leakage, No air pockets during coupling |
| Body size | 1/2 Inch |
| Connectable under pressure | No |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, threads per inch | 14 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Details | One-handed coupling, With special flat valve |

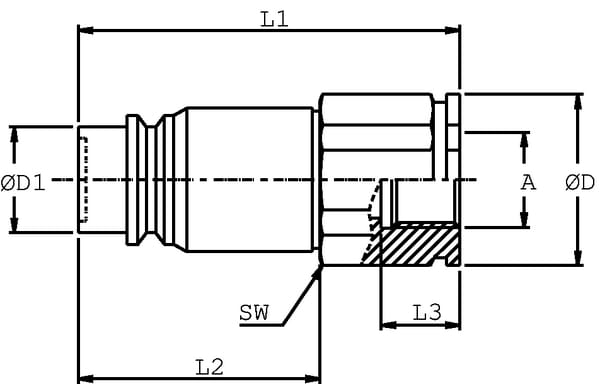

| L1Total length | 68 mm |
| L2Connection no 1 length | 48 mm |

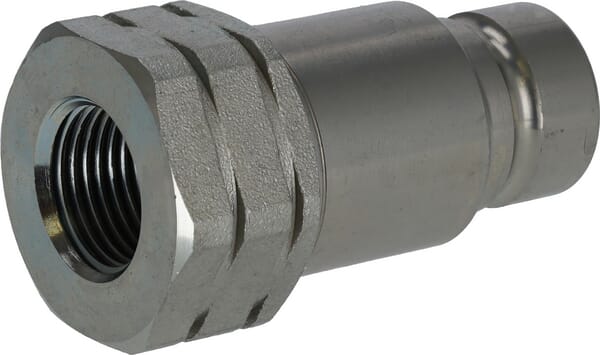

| Long description | Quick release coupling male SKV-M gopart |
| Material | Steel |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| ØD1Connection no 1 diameter | 15 mm |
| ØDOutside diameter | 36 mm |
| Properties | Locks on both sides |
| Seal material | Nitrile rubber [NBR], Teflon (PTFE) |
| Shape | Straight |
| Size code | BG 3 |
| Unit | Each |
Logistics
| EAN | 8719493095111 |
|---|---|
| Unit of measure | EA |
| Weight | 264 g |
| Dimensions | 71 × 37 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000073557
gopart Connecting link 24B1 24B1CLGPP010
£3.81 excl.
£4.57 incl.
In stock
Expected to ship on Friday 18 September
BPA000343082
gopart Cross journal diameter 23.8x61.3mm 20 PTO920CJGP
£11.71 excl.
£14.05 incl.
In stock
Expected to ship on Friday 18 September
BPA000309233
gopart Light set LED 12V mountable 12m cable LA65016
£43.64 excl.
£52.37 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000376168

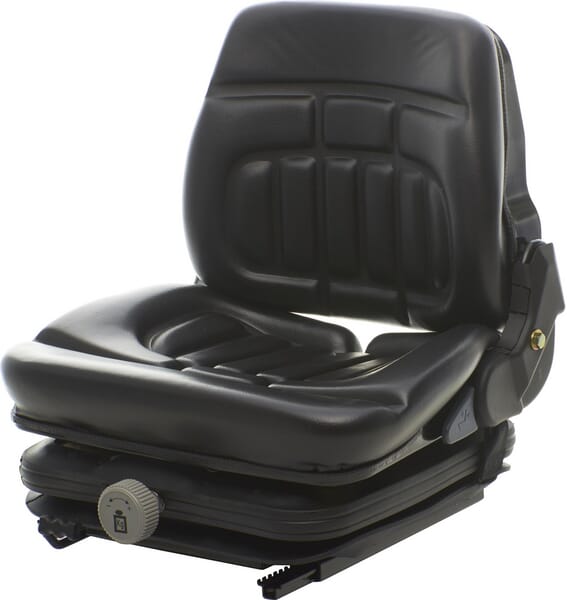

gopart PVC seat, mechanically sprung TS45000GP
