£147.58
excl. VAT
£177.10 incl. VAT
£177.10
incl. VAT
£147.58 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

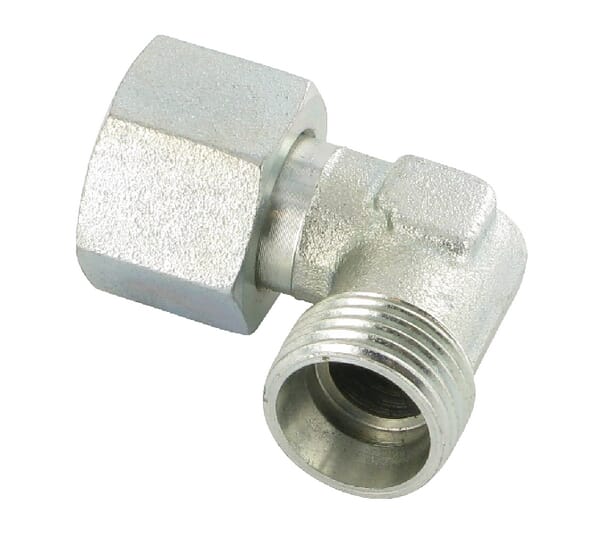

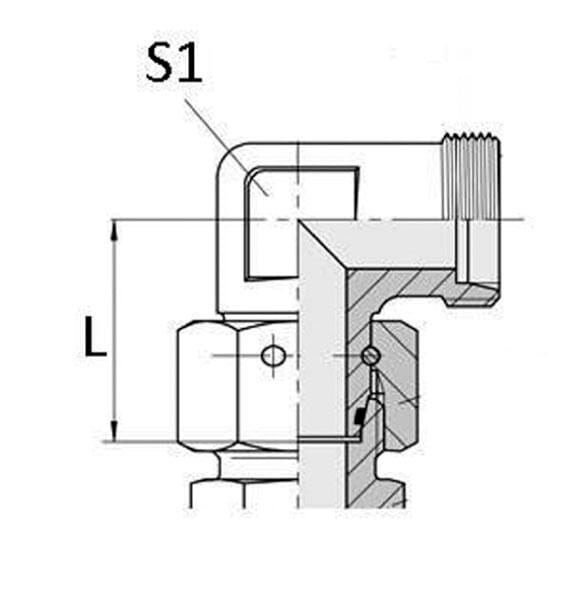

Product details
| Cone angle side 2 | 24 ° |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 diameter | 12 mm |
| DIN standard | 2401, 2353, 3865 |
| Material | Steel |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring, Direct connection with a metric hose gland or pre-mounted coupling, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| SConnection no 1 wrench size | 22.0 mm |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Unit | Box |
Logistics
| EAN | 8716106032099 |
|---|---|
| Unit of measure | BOX |
| Weight | 3857 g |
| Dimensions | 152 × 152 × 130 mm |
| Dangerous goods | No |
You might also like
BPA000287999

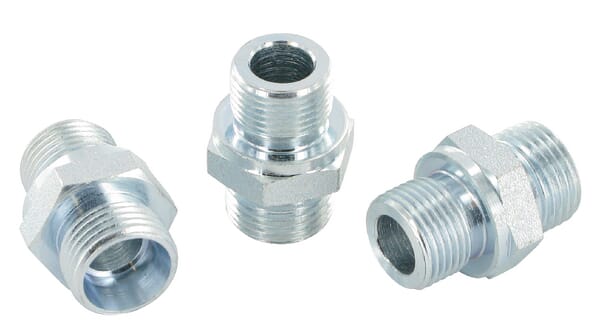

gopart Male stud coupling R1/2 50Pcs GES15LR12P050GP
£60.68 excl.
£72.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000030436

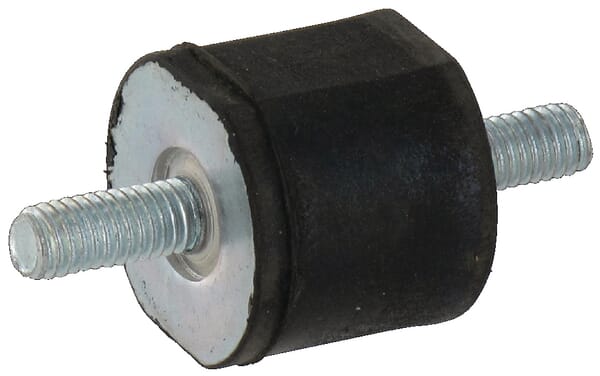

gopart Vibration damper 11107909600GP
£5.48 excl.
£6.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088660
gopart Tapered roller bearing 55x90x23mm 32011GP
£20.78 excl.
£24.94 incl.
In stock
Expected to ship on Thursday 24 September
BPA000343115
gopart Cross journal diameter 30.2x79.4mm 50 PTO950CJGP
£15.62 excl.
£18.74 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000032030

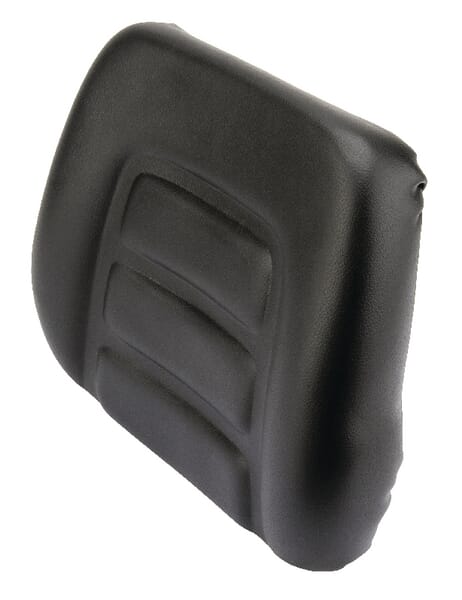

gopart PVC backrest cushion GS12 112972GP
£113.28 excl.
£135.94 incl.
In stock
Expected to ship on Thursday 24 September
BPA000038012
gopart Self-aligning ball bearing 20x47x14mm 1204GP
£5.02 excl.
£6.02 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000203446
Kramp Hexagon head bolt DIN933 M16x45 stainless steel A4 9331645RVSA4P001
£2.69 excl.
£3.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000116513

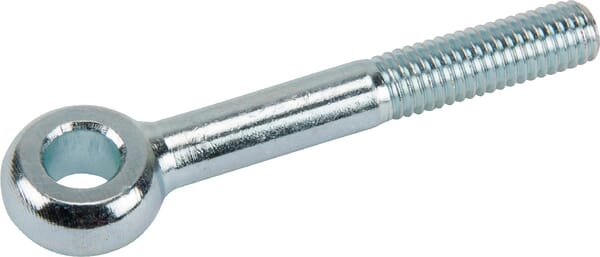

Kramp Eye bolt DIN444B M12x100 steel zinc-plated 4.6 444B12100
