£369.87
excl. VAT
£443.84 incl. VAT
£443.84
incl. VAT
£369.87 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tanks, Crop sprayers, Fertiliser spreaders, Hay baler |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint bush diameter by tractor side - longer part | 22 mm |
| Cross joint length by machine side | 61.4 mm |
| Cross joint length by tractor side | 61.4 mm |
| Cross joint length by tractor side - longer part | 75.7 mm |

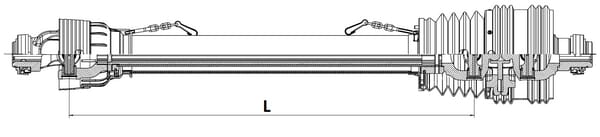

| Length | 1010 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Cost-effective alternative in the lower power range and suitable for log splitters, crop sprayers, fertiliser spreaders, manure spreaders etc. |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Max. dynamic capacity 540 rpm: 15kW, Max. dynamic capacity 1000 rpm: 23kW, The crossjoint side has a different build size, The right accessories can be found under spare parts and accessories, Meets all international safety requirements, Provided with "CE" marking |
| Properties | Fulfils all international safety requirements, CE marking available |
| Pros | Cost-effective alternative in lower power range |
| Size code | PTO 20 |
| Technical info | Max. dynamic capacity at 540 rpm: 15 kW, Max. dynamic capacity at 1000 rpm: 23 kW, The cross coupling side varies in size, Matching accessories can be found under Spare parts and accessories |
| Unit | Each |
Logistics
| EAN | 8719493114218 |
|---|---|
| Unit of measure | EA |
| Weight | 20500 g |
| Dimensions | 1420 × 210 × 210 mm |
| Dangerous goods | No |
You might also like
BPA000029534
gopart Vibration damper 11157909906GP
£9.98 excl.
£11.98 incl.
In stock
Expected to ship on Friday 18 September
BPA000082669

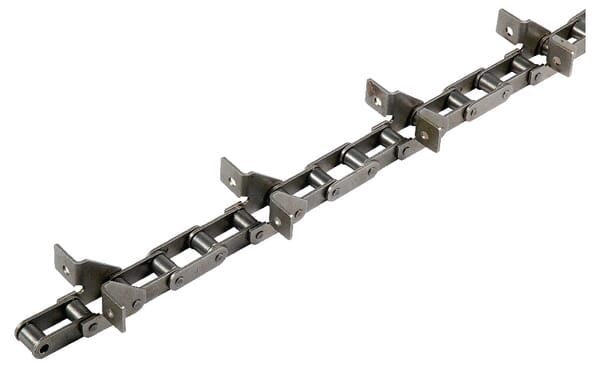

gopart Intake elevator chain 30453141458M1
