£375.38
excl. VAT
£450.46 incl. VAT
£450.46
incl. VAT
£375.38 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Slurry tanks, Crop sprayers, Fertiliser spreaders, Hay baler |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint bush diameter by tractor side - longer part | 22 mm |
| Cross joint length by machine side | 61.4 mm |
| Cross joint length by tractor side | 61.4 mm |
| Cross joint length by tractor side - longer part | 75.7 mm |

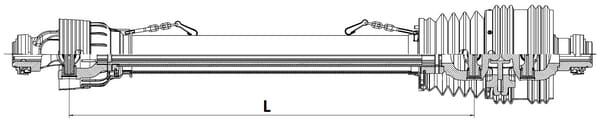

| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | Cost-effective alternative in the lower power range and suitable for log splitters, crop sprayers, fertiliser spreaders, manure spreaders etc. |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Max. dynamic capacity 540 rpm: 15kW, Max. dynamic capacity 1000 rpm: 23kW, The crossjoint side has a different build size, The right accessories can be found under spare parts and accessories, Meets all international safety requirements, Provided with "CE" marking |
| Properties | Fulfils all international safety requirements, CE marking available |
| Pros | Cost-effective alternative in lower power range |
| Size code | PTO 20 |
| Technical info | Max. dynamic capacity at 540 rpm: 15 kW, Max. dynamic capacity at 1000 rpm: 23 kW, The cross coupling side varies in size, Matching accessories can be found under Spare parts and accessories |
| Unit | Each |
Logistics
| EAN | 8719493114225 |
|---|---|
| Unit of measure | EA |
| Weight | 21000 g |
| Dimensions | 1210 × 220 × 220 mm |
| Dangerous goods | No |
You might also like
BPA000254258
gopart Cable L-1500 D018C1X1500
£17.12 excl.
£20.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000343153

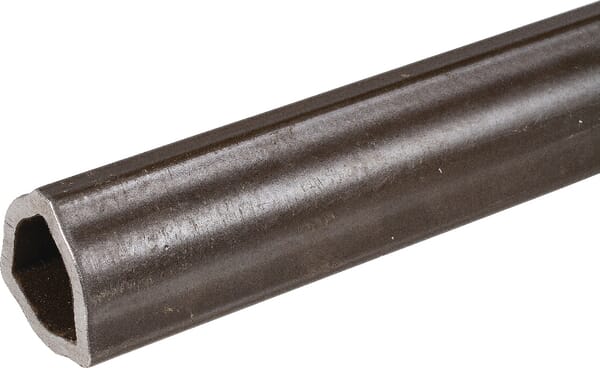

gopart Profile tube inner triangular PTO 70 diameter in: 44 diameter out: 54x5mm L: 3m PTO970IPT3000GP
£187.11 excl.
£224.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000030436
gopart Vibration damper 11107909600GP
£5.48 excl.
£6.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000045677

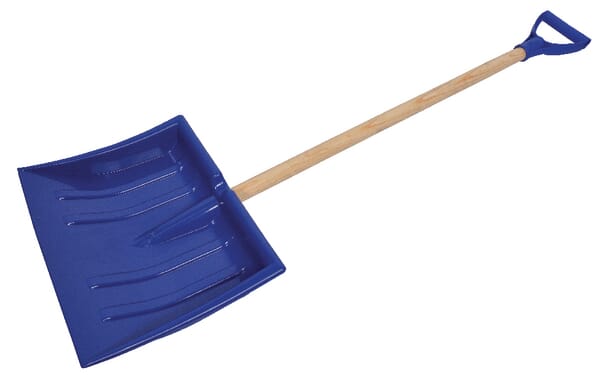

gopart Child's snow shovel 14048GP
