£10.10
excl. VAT
£12.12 incl. VAT
£12.12
incl. VAT
£10.10 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inside diameter | 109.5 mm |
|---|---|
| D1Outside diameter | 125 mm |
| Groove thickness | 6.3 mm |
| Includes | Seal ring: polyester elastomer, O-ring: NBR 70 |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | For double-acting cylinders, Maximum operating pressure: 250 bar, It is recommended that a guide ring is fitted to the piston on one or both sides of the seal, e.g. type 87 or 506, The seal does not need to be recalibrated like PTFE standard seals, Easy mounting |
| Pros | Negligible internal leakage compared to a PTFE standard seal, Very flexible and wear-resistant, Low friction, Easy mounting |
| Type | Piston seal |
| Type code | 764 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 22 g |
| Dimensions | 125 × 125 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000350696
Hallite Rod seal 22x14x5.7mm SA142257UN
£2.25 excl.
£2.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000353813
Hallite Rod seal 75x65x11.8mm SA6575118UN
£5.52 excl.
£6.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000351082
Hallite Rod seal 26x20x5mm SA20265UN
£2.59 excl.
£3.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000404736

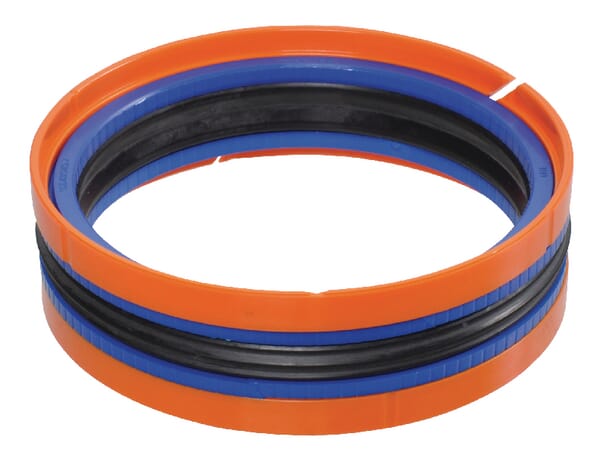

Hallite Piston seal 150x125x25.4mm ZA150125254635DBM
£26.34 excl.
£31.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000287000

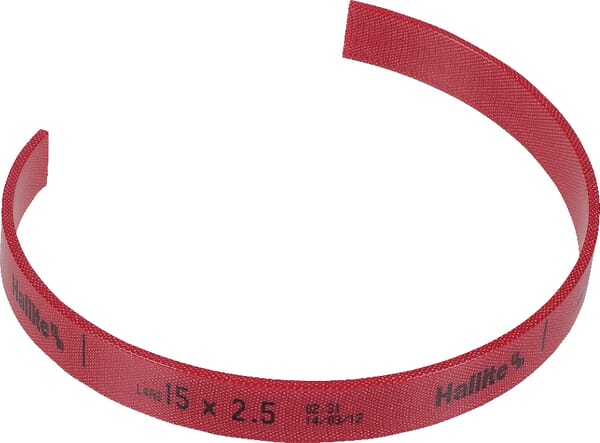

Hallite Guide ring 90x95x15 - GRI GRI909515
£11.71 excl.
£14.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404770

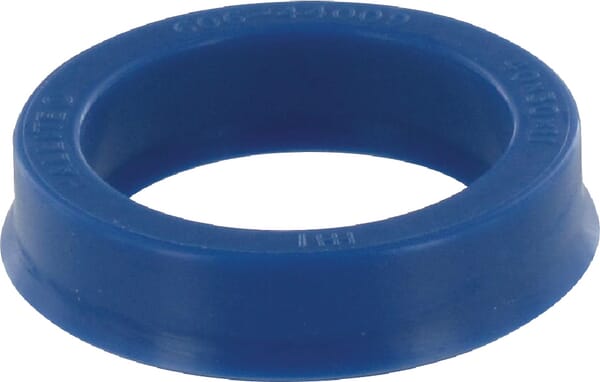

Hallite Piston seal 40x30x10mm ZA403010UN
