£12.72
excl. VAT
£15.26 incl. VAT
£15.26
incl. VAT
£12.72 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Groove thickness | 8.1 mm |
|---|---|
| Includes | Seal ring: polyester elastomer, O-ring: NBR 70 |
| Inside diameter | 119 mm |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 350 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -40 °C |
| Outside diameter | 140 mm |
| Product details | For double-acting cylinders, Maximum operating pressure: 350 bar, It is recommended that a guide ring is fitted to the piston on one or both sides of the seal, e.g. type 87 or 506, The seal does not need to be recalibrated like PTFE standard seals, Easy mounting |
| Pros | Negligible internal leakage compared to a PTFE standard seal, Very flexible and wear-resistant, Low friction, Easy mounting |
| Type | Piston seal |
| Type code | 754 |
| Unit | Each |
| Width | 8.1 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42 g |
| Dimensions | 140 × 140 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000234526

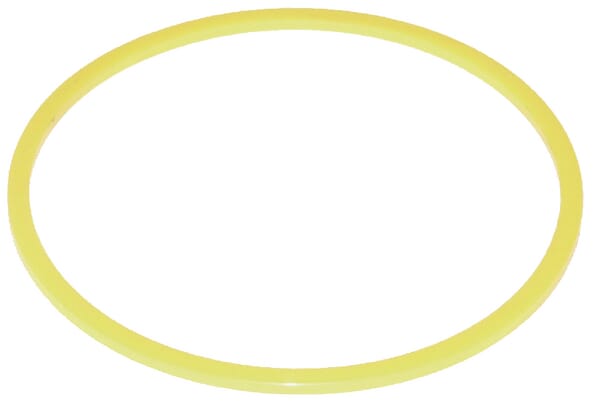

Hallite Backup for 32.99 x 2.62 e=1.14 BU3299262
£1.42 excl.
£1.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000238700
Hallite Vee-pack set 50.8x66.67x27.78 CH50866672778
£51.20 excl.
£61.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000354406

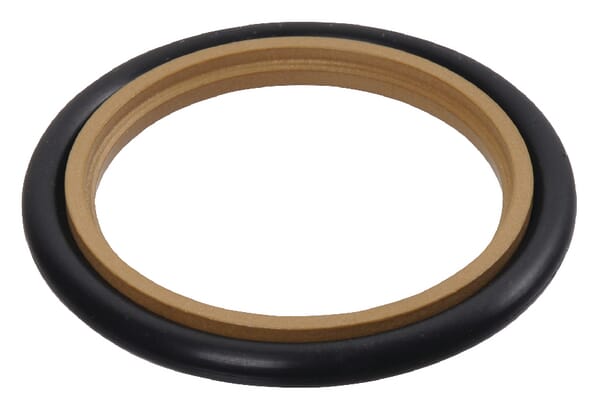

Hallite Rod seal 30.7x20x4.2mm SAS2030742
£5.49 excl.
£6.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404790
Hallite Piston seal 60x44x20.5mm ZA6044205DBM
£8.69 excl.
£10.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286948

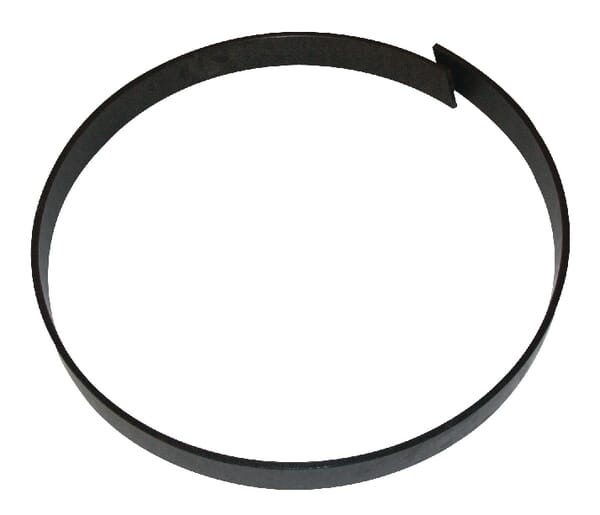

Hallite Guide ring 63x57x12,8 - GRE F GRE6357128F
