£13.43
excl. VAT
£16.12 incl. VAT
£16.12
incl. VAT
£13.43 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

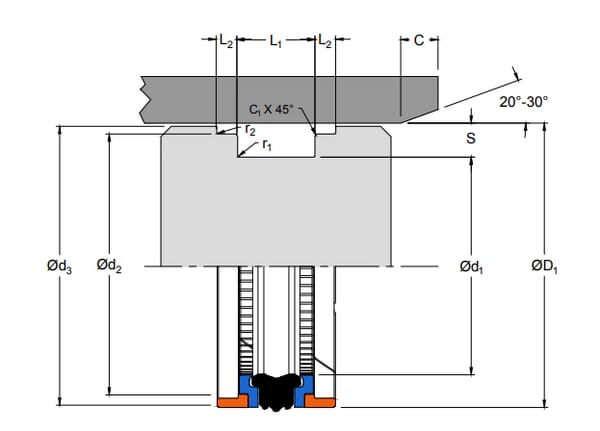

| Collar diameter | 59 mm |
|---|---|
| d1Inside diameter | 47.6 mm |
| D1Outside diameter | 63.5 mm |
| d3Piston diameter | 63.5 mm |
| Includes | 1 sealing element, 2 back rings, 2 guide rings with cut |
| L1Groove thickness | 19 mm |
| L2Guide ring chamber width | 6.4 mm |
| Material | Polyester, Nitrile rubber [NBR], POM |
| Max. sliding speed | 0.5 m/s |
| Max. working pressure | 500 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 5-piece piston seal, The back-up and guide rings are cut, Suitable for medium to high operating pressures, Interchangeable with the most common double-acting piston seals such as DAS, OP, DBM, TPM and EPM, Separable pistons, Fixed pistons, Piston seal for double-acting cylinders |
| Pros | Perfect sealing even at high peak pressures, Seal is easy to install |
| Type | Piston seal |
| Type code | 53 |
| Unit | Each |
| Width | 19 mm |
Logistics
| EAN | 8716106991716 |
|---|---|
| Unit of measure | EA |
| Weight | 38 g |
| Dimensions | 99 × 75 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000286932
Hallite Guide ring 180x175x14,8- GRE GRE180175148
£15.13 excl.
£18.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404781
Hallite Piston seal 50x34x20.5mm ZA5034205DBM
£6.86 excl.
£8.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000404878

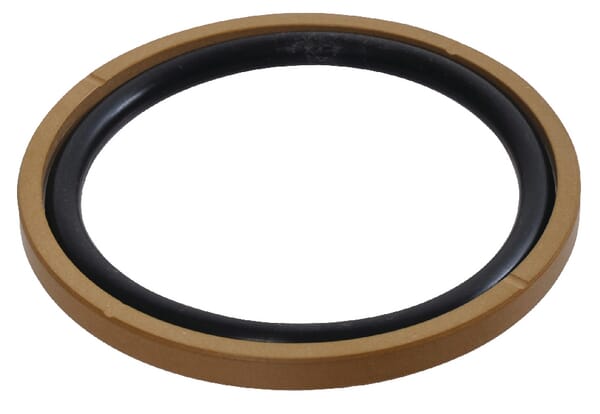

Hallite Piston seal 40x29x4.2mm ZAS402942V
