£24.85
excl. VAT
£29.82 incl. VAT
£29.82
incl. VAT
£24.85 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| d1Inside diameter | 100 mm |
|---|---|
| D1Outside diameter | 115.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29 g |
| Dimensions | 154 × 116 × 13 mm |
| Dangerous goods | No |
You might also like
BPA000404769
Hallite Piston seal 40x30x10mm ZA403010AEUN
£6.52 excl.
£7.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000353511

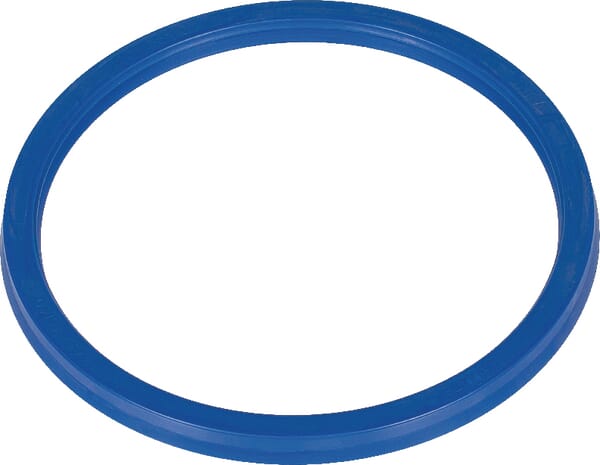

Hallite Piston rod seal 135x120x9mm SA1201359UN
£17.07 excl.
£20.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404717

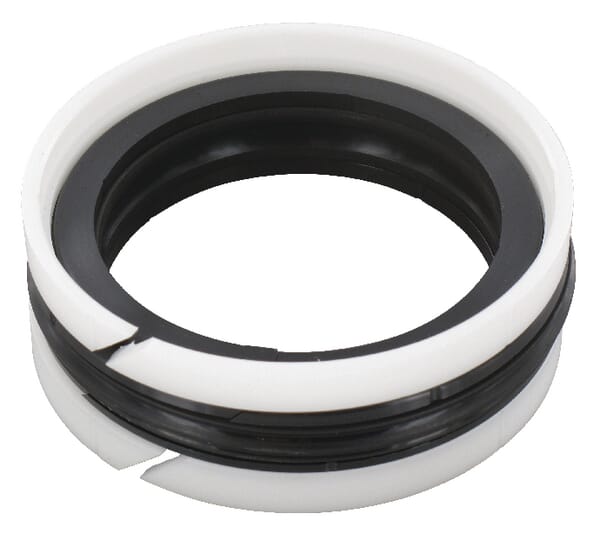

Hallite Piston seal 100x75x22.4mm ZA10075224DBM
