Product details

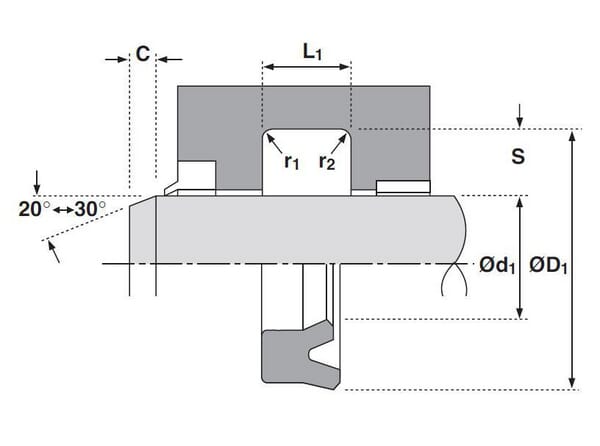

| CWidth | 14.5 mm |
|---|---|
| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Ød1Inside diameter | 125 mm |
| ØD1Outside diameter | 145 mm |

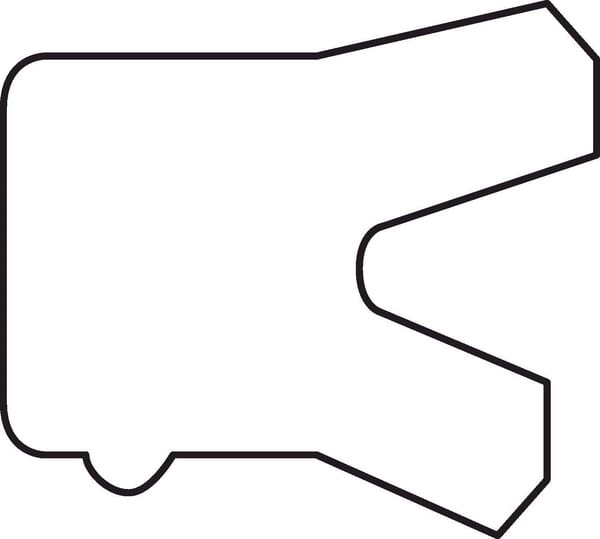

| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 16 mm |
| Type | Rod seal, Piston seal |
| Type code | 605 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 59 g |
| Dimensions | 149 × 147 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000354434
Hallite Rod seal 75.1x60x6.3mm SAS6075163
£16.36 excl.
£19.63 incl.
In stock
Expected to ship on Monday 21 September

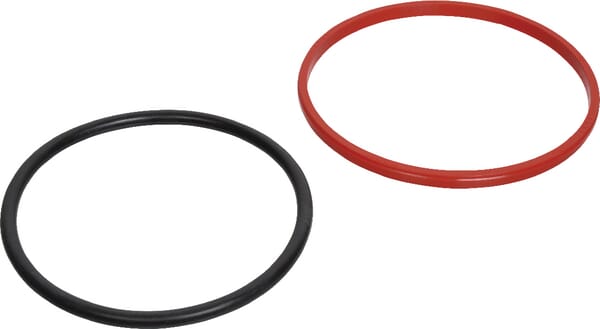

BPA000404870
Hallite Piston seal 30x22.5x3.2mm ZAS3022532T754
£1.81 excl.
£2.17 incl.
In stock
Expected to ship on Monday 21 September
BPA000353859
Hallite Rod seal 95x85x11.8mm SA8595118UN
£7.70 excl.
£9.24 incl.
Backorder available
Usually ships within 3–8 weeks

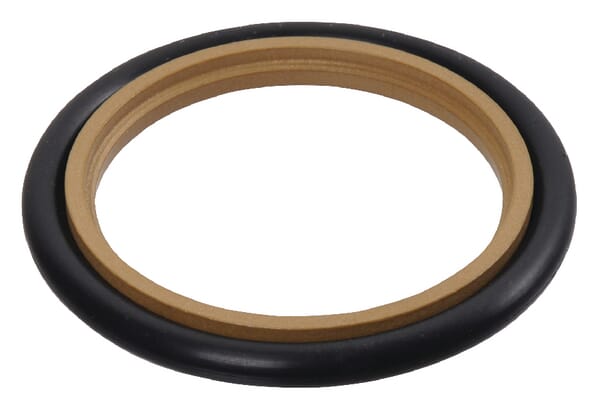

BPA000354412
