£12.21
excl. VAT
£14.65 incl. VAT
£14.65
incl. VAT
£12.21 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| CWidth | 12.5 mm |
|---|---|
| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Ød1Inside diameter | 125 mm |
| ØD1Outside diameter | 150 mm |
| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 14 mm |
| Type | Rod seal, Piston seal |
| Type code | 605 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 63 g |
| Dimensions | 152 × 152 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000353814
Hallite Rod seal 77x65x9mm SA65779UN
£5.41 excl.
£6.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000404805
Hallite Piston seal 65x55x7.3mm ZA655573UN
£6.58 excl.
£7.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000404813

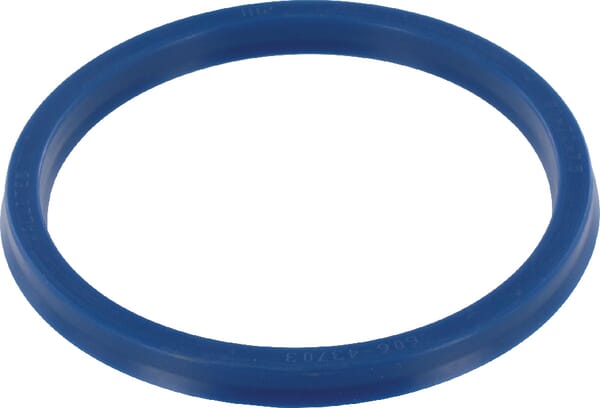

Hallite Piston seal 70x60x6mm ZA70606UN
£6.34 excl.
£7.61 incl.
In stock
Expected to ship on Friday 18 September
BPA000404881

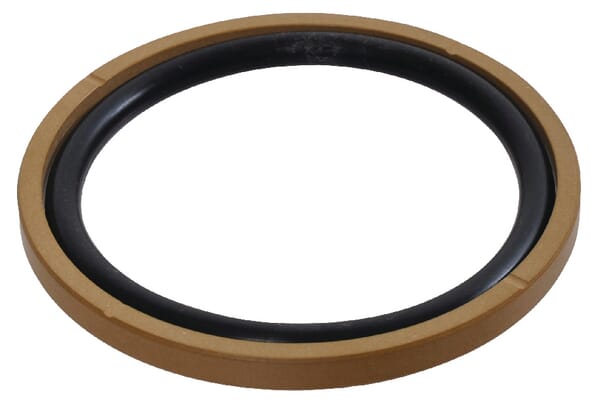

Hallite Piston seal 50x39x4.2mm ZAS503942
£3.82 excl.
£4.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000353805

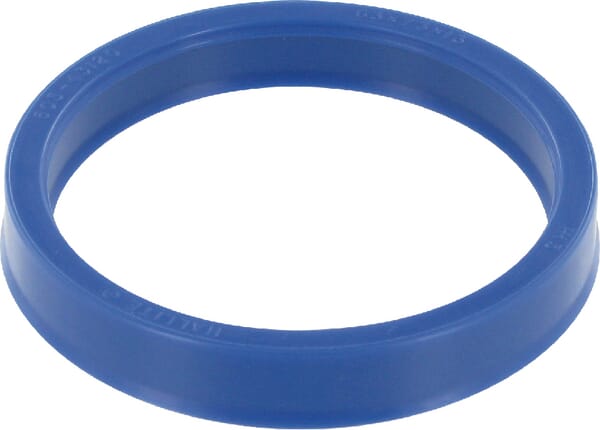

Hallite Piston rod seal 73x63x11.8mm SA6373118UN
