£13.27
excl. VAT
£15.92 incl. VAT
£15.92
incl. VAT
£13.27 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| CWidth | 14.5 mm |
|---|---|
| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Ød1Inside diameter | 140 mm |
| ØD1Outside diameter | 160 mm |
| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 16 mm |
| Type | Rod seal, Piston seal |
| Type code | 605 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 67 g |
| Dimensions | 164 × 163 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000286949
Hallite Guide ring 63x58x9,7 - GRE GRE635897
£5.50 excl.
£6.60 incl.
In stock
Expected to ship on Monday 21 September
BPA000404825
Hallite Piston seal 80x70x6.8mm ZA807068UN
£7.83 excl.
£9.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000232646

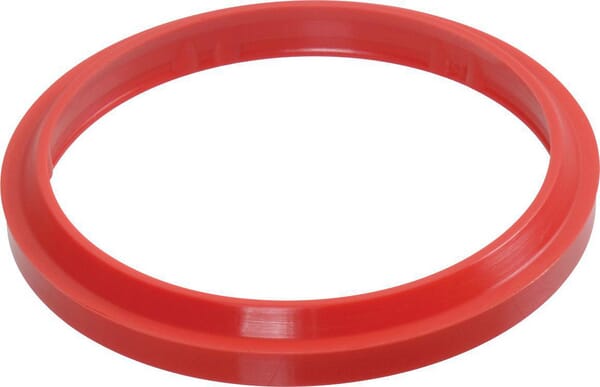

Hallite Rod wiper ASU 63x73.6x5.3/7mm ASU6373653T38
£7.00 excl.
£8.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000353786
Hallite Rod seal 70x60x10mm SA607010UN
£3.43 excl.
£4.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000286924

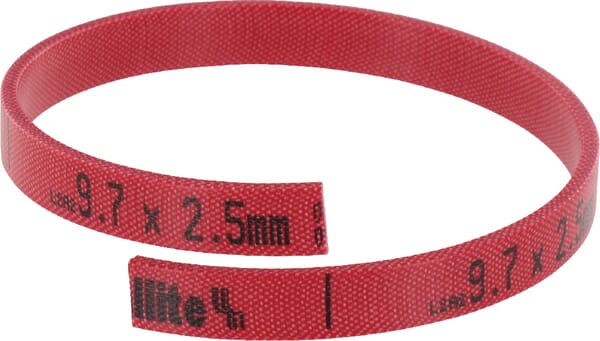

Hallite Guide ring 105x100x9,7 - GRE GRE10510097
