£11.94
excl. VAT
£14.33 incl. VAT
£14.33
incl. VAT
£11.94 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inside diameter | 28 mm |
|---|---|
| D1Outside diameter | 38.7 mm |
| Groove width | 4.2 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |

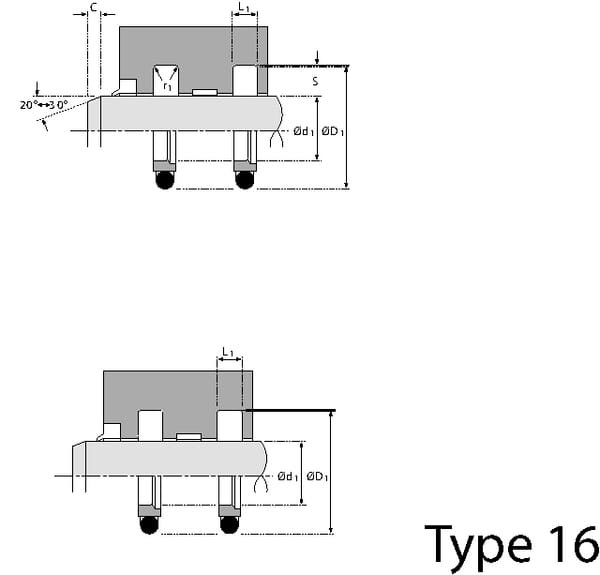

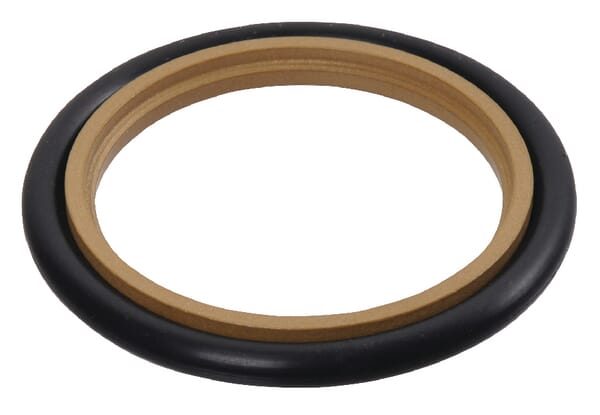

| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, FKM, Teflon (PTFE), Rubber, Viton |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 200 °C |
| Min. working temperature | -10 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 4.2 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6 g |
| Dimensions | 40 × 40 × 4 mm |
| Dangerous goods | No |
You might also like
BPA000354413
Hallite Rod seal 38.7x28x4.2mm SAS2838742
£6.36 excl.
£7.63 incl.
In stock
Expected to ship on Friday 18 September
BPA000286983
Hallite Guide ring 50x45x5,6 - GRI GRI455056
£4.57 excl.
£5.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000353770

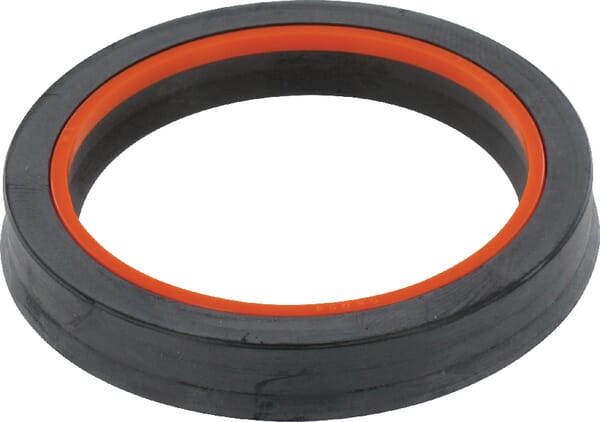

Hallite Rod seal 71x56x11.5mm SA5671125T29
£41.70 excl.
£50.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000351472
Hallite Rod seal 43x35x8.2mm SA354382UN
£3.25 excl.
£3.90 incl.
In stock
Expected to ship on Friday 18 September
BPA000350558
Hallite Rod seal 22x12x7.7mm SA122277UN
£2.45 excl.
£2.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000404781

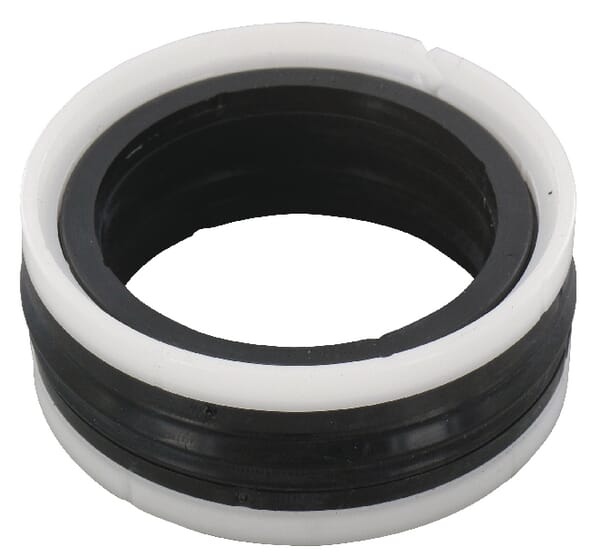

Hallite Piston seal 50x34x20.5mm ZA5034205DBM
