£15.45
excl. VAT
£18.54 incl. VAT
£18.54
incl. VAT
£15.45 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

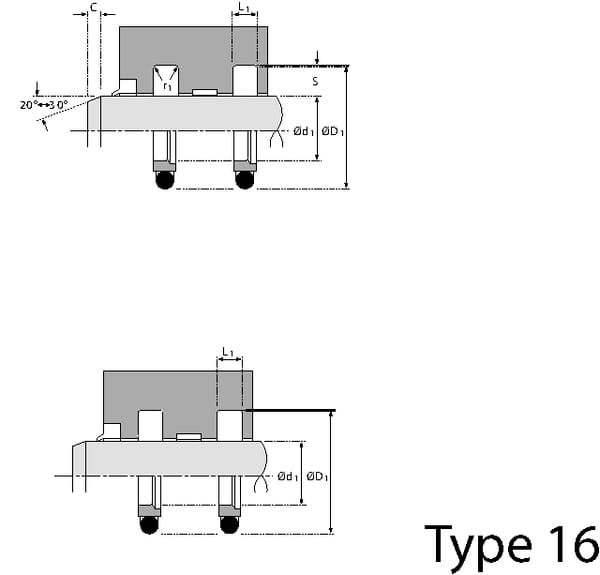

| d1Inside diameter | 56 mm |
|---|---|
| D1Outside diameter | 71.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17 g |
| Dimensions | 94 × 73 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000232627
Hallite Rod wiper ASU 45x53.6x5.3/7mm ASU4553653
£1.76 excl.
£2.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000286927
Hallite Guide ring 120x115x15 - GRE GRE12011515
£11.33 excl.
£13.60 incl.
In stock
Expected to ship on Monday 21 September

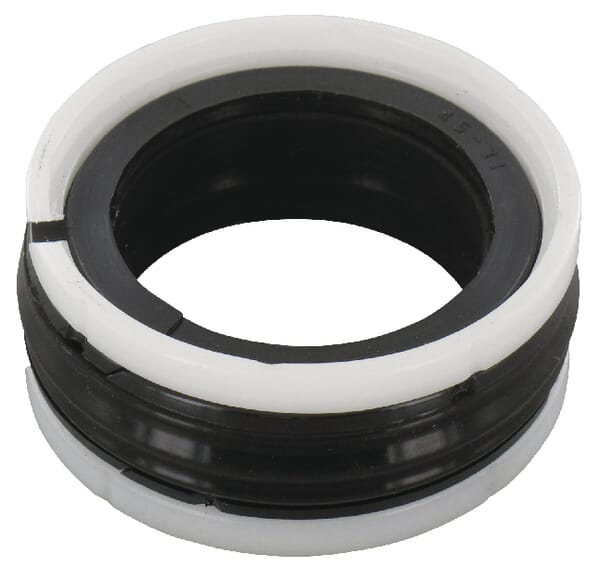

BPA000404776
Hallite Piston seal 45x31x15.5mm ZA4531155DBM
£7.26 excl.
£8.71 incl.
In stock
Expected to ship on Friday 18 September
BPA000353697
Hallite Rod seal 55x40x7.3mm SA405573UN
£4.07 excl.
£4.88 incl.
In stock
Expected to ship on Friday 18 September

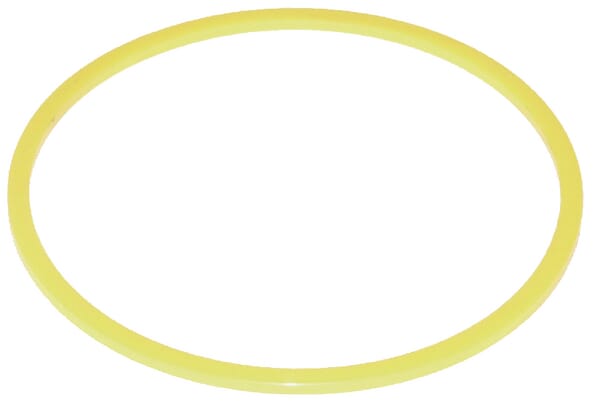

BPA000234597
Hallite Backup for 62.87 x 5.34 e=1.52 BU6287534
£3.34 excl.
£4.01 incl.
In stock
Expected to ship on Friday 18 September

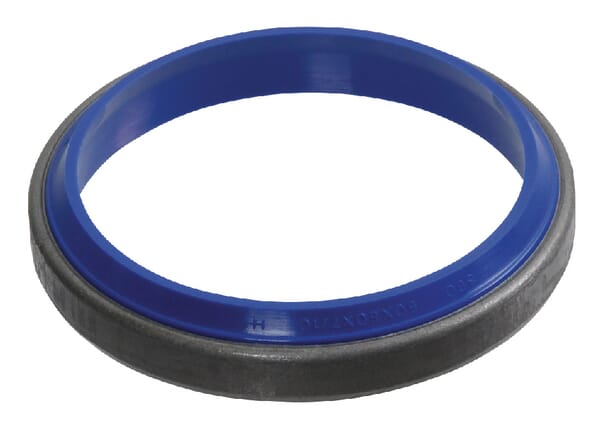

BPA000232499
