£41.80
excl. VAT
£50.16 incl. VAT
£50.16
incl. VAT
£41.80 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

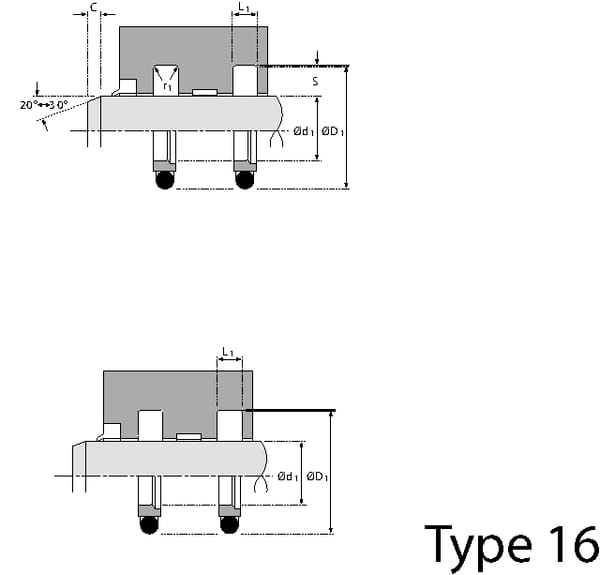

| d1Inside diameter | 60 mm |
|---|---|
| D1Outside diameter | 75.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, FKM, Teflon (PTFE), Rubber, Viton |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 200 °C |
| Min. working temperature | -10 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11 g |
| Dimensions | 98 × 73 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000354434
Hallite Rod seal 75.1x60x6.3mm SAS6075163
£16.36 excl.
£19.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000350558
Hallite Rod seal 22x12x7.7mm SA122277UN
£2.45 excl.
£2.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000353828
Hallite Rod seal 90x70x12mm SA709012UN
£6.19 excl.
£7.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280065
Hallite Guide strip coil 9.7x2.5 GB9725
£70.03 excl.
£84.04 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404870
Hallite Piston seal 30x22.5x3.2mm ZAS3022532T754
£1.81 excl.
£2.17 incl.
In stock
Expected to ship on Tuesday 22 September

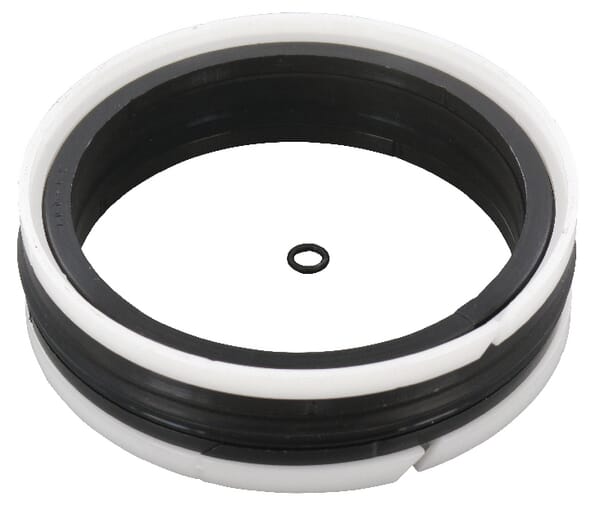

BPA000404721
