£43.22
excl. VAT
£51.86 incl. VAT
£51.86
incl. VAT
£43.22 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

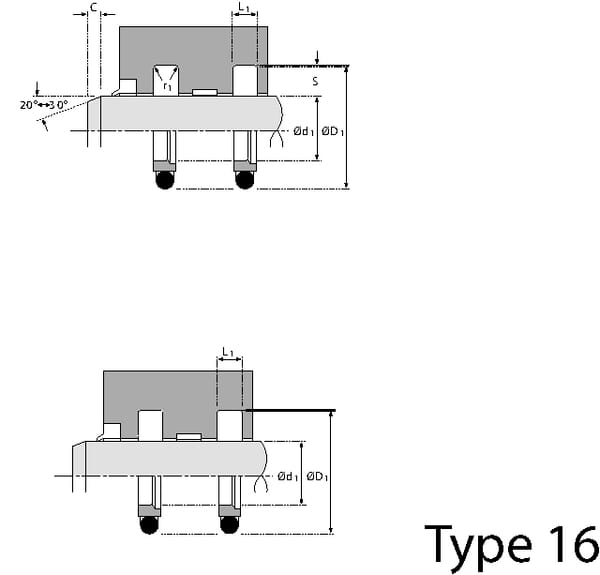

| d1Inside diameter | 70 mm |
|---|---|
| D1Outside diameter | 85.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, FKM, Teflon (PTFE), Rubber, Viton |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 200 °C |
| Min. working temperature | -10 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 25 g |
| Dimensions | 85 × 85 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000354437
Hallite Rod seal 85.1x70x6.3mm SAS7085163
£18.21 excl.
£21.85 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000351209
Hallite Rod seal 38x30x6.3mm SA303863UN
£1.71 excl.
£2.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000232534
Hallite Rod wiper ASP 36x42.8x5mm PTFE ASP364285PTFE
£10.39 excl.
£12.47 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000234526
Hallite Backup for 32.99 x 2.62 e=1.14 BU3299262
£1.42 excl.
£1.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000354407

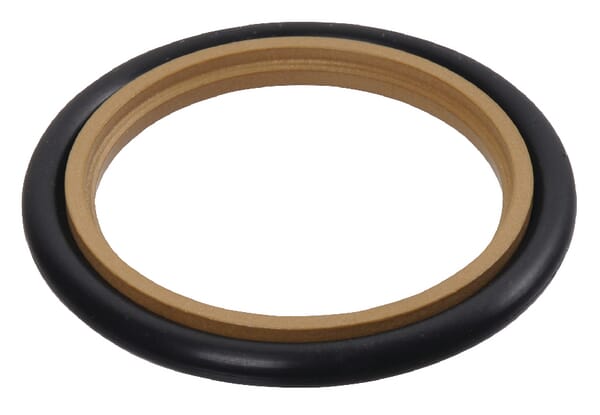

Hallite Rod seal 29.3x22x3.2mm SAS2229332
£4.58 excl.
£5.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000351208
Hallite Rod seal 38x30x5.7mm SA303857
£1.81 excl.
£2.17 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000223380
Kverneland / Accord Metering Wheel 12 T AC821896
£16.89 excl.
£20.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287700
INA Sheet steel bearing housing GEH62PBS
£19.89 excl.
£23.87 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000343010
PTG Filler hose 8 m+fixing pin PTGX711001
£138.10 excl.
£165.72 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000293157
Kramp Work gloves 1.001 10/XL, 3 pack, grey, Protect by KG0100210
£3.96 excl.
£4.75 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000056473

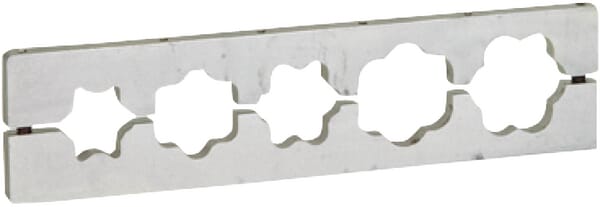

Walterscheid Clamping jaws, star tube, SW40 1697011
£486.87 excl.
£584.25 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000295447
Kverneland Seal kit Hydraulic cylinder diameter 63/32 KK012010
£42.92 excl.
£51.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000079558
Tyrolit Grinding wheel 300x40x76 mm 300407610A80TYR
£169.81 excl.
£203.77 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000311646

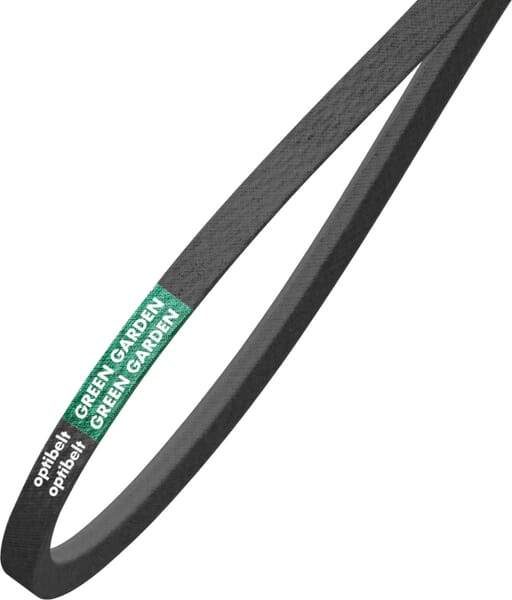

Optibelt V-belt 3/8"x29.5", 9.7x750mm LG2000361
£10.12 excl.
£12.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306058

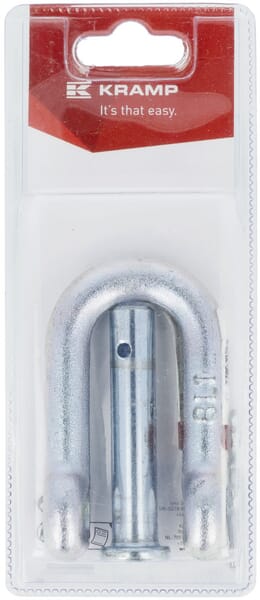

Kramp D-shackle diameter 12mm x 52mm (1) KRZ790203KRP01B
