Product details
| d1Inside diameter | 80 mm |
|---|---|
| D1Outside diameter | 95.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, FKM, Teflon (PTFE), Rubber, Viton |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 200 °C |
| Min. working temperature | -10 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |

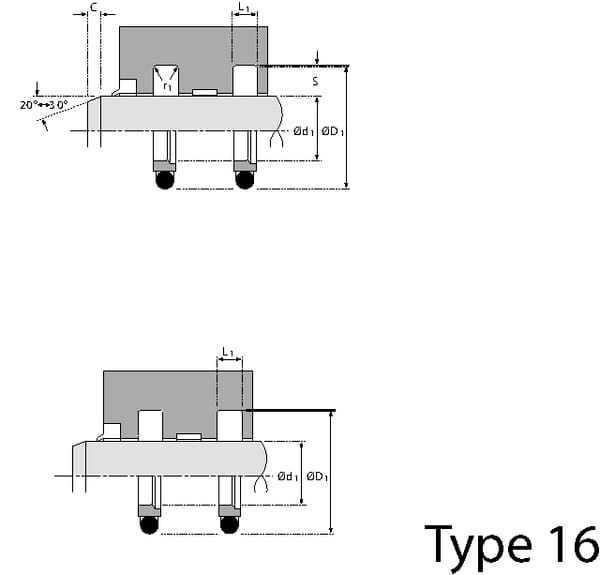

| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 29 g |
| Dimensions | 95 × 95 × 23 mm |
| Dangerous goods | No |
You might also like
BPA000354440

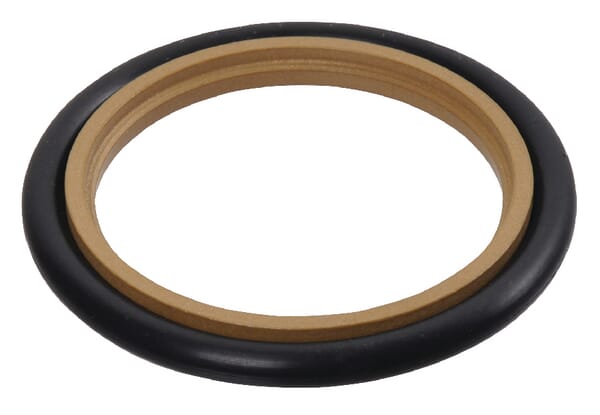

Hallite Rod seal 95.1x80x6.3mm SAS8095163
£20.78 excl.
£24.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000404774

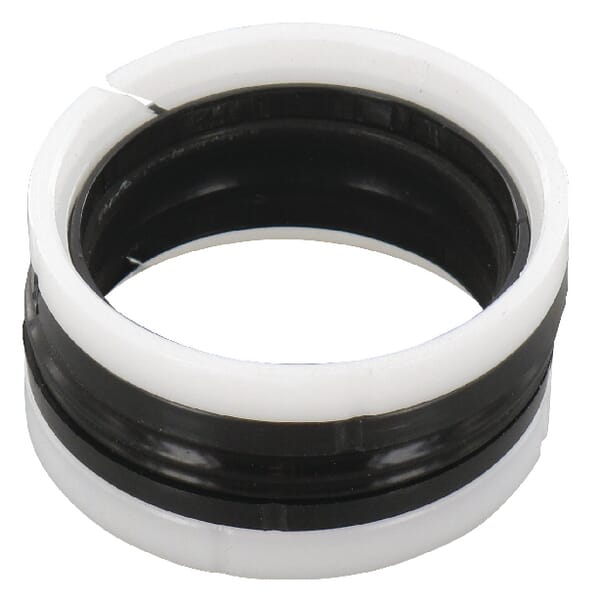

Hallite Piston seal 40x32x15.5mm ZA4032155DBM
