£5.13
excl. VAT
£6.16 incl. VAT
£6.16
incl. VAT
£5.13 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inner diameter | 100 mm |
|---|---|
| D1Outer diameter | 108 mm |
| D2Collar diameter | 106 mm |
| Groove width | 4 mm |

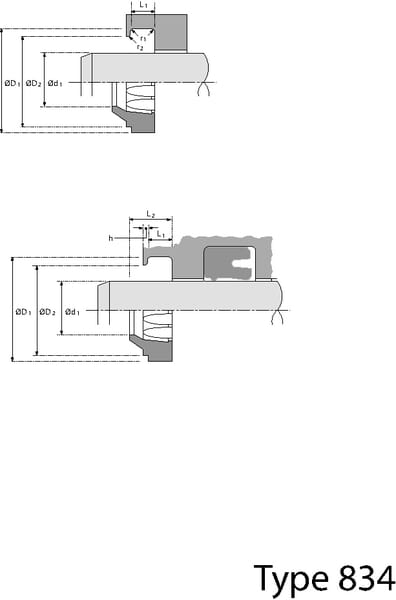

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7 g |
| Dimensions | 108 × 108 × 4 mm |
| Dangerous goods | No |
You might also like
BPA000354408
Hallite Rod seal 29.3x22x3.2mm SAS2229332V
£11.05 excl.
£13.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000351177
Hallite Rod seal 40x28x10mm SA284010
£3.59 excl.
£4.31 incl.
In stock
Expected to ship on Friday 18 September
BPA000404791

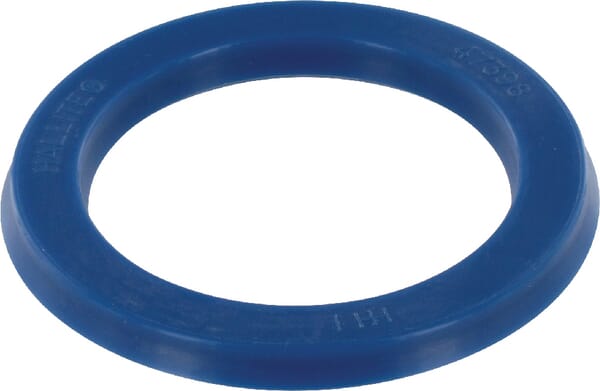

Hallite Piston seal 60x44.9x5.7mm ZA6044957UN
£5.64 excl.
£6.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232655

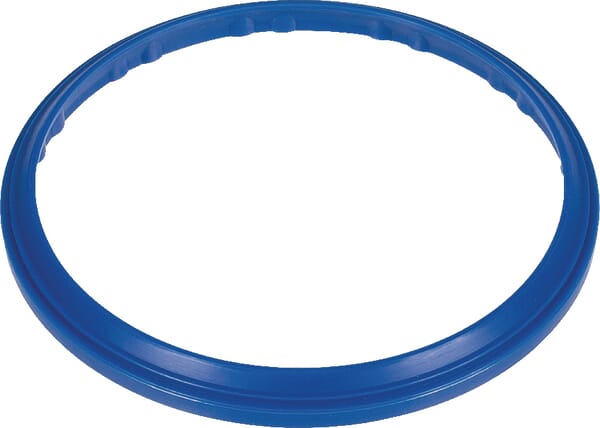

Hallite Rod wiper ASU 75x83x4/5/7mm ASU7583457T
£3.90 excl.
£4.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000241683

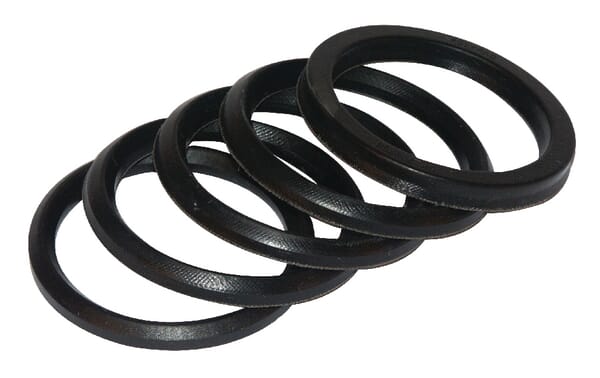

Hallite Vee-pack set 45x60x22.5 CH4560225
£38.46 excl.
£46.15 incl.
In stock
Expected to ship on Friday 18 September
BPA000404721

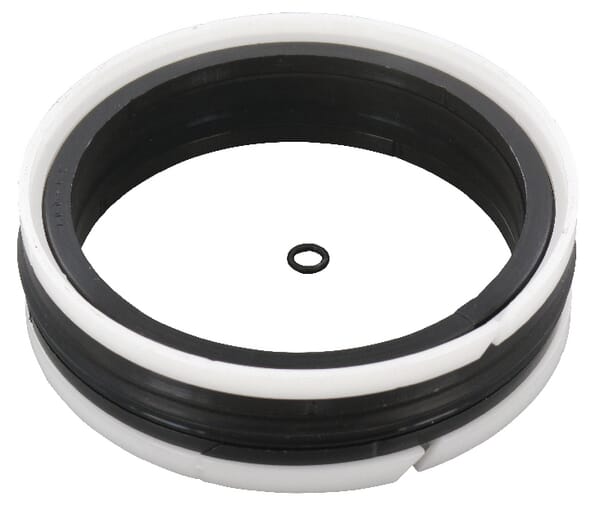

Hallite Piston seal 100x82x22.5/3.6mm ZA10082224DBM
