£25.05
excl. VAT
£30.06 incl. VAT
£30.06
incl. VAT
£25.05 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Collar diameter | 150 mm |
|---|---|
| d1Inner diameter | 140 mm |
| D1Outer diameter | 155 mm |
| Groove width | 9.5 mm |
| Long description | The ASU-T38 (38) single-lip wiper is engineered to fit metric housings, including ISO 6195A standard sizes. Its precisely designed wiping lip maintains firm contact with the piston rod, effectively removing heavy contaminants such as mud and ice to protect your hydraulic system. Featuring an outer crush lip, the scraper ensures a secure interference fit within the housing, preventing contaminants from entering the groove and damaging internal components. |
| Material wiper seal | Polyester |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 120 °C |
| Min. working temperature | -40 °C |
| Product details | Material : Abrasion-resistant polyester, Compatible with split housings, Most sizes can be carefully installed in blind housings, Designed with an additional sealing lip and ribs, Secure fit with reliable sealing, Built for demanding environments, Highly flexible, Excellent wear resistance, Effective dirt removal |
| Total width | 14 mm |
| Type | Rod wiper |
| Type code | ASU-T38 (38) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 37 g |
| Dimensions | 159 × 159 × 14 mm |
| Dangerous goods | No |
You might also like

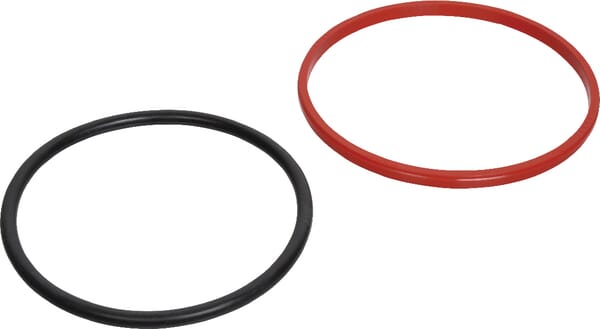

BPA000404861
Hallite Piston seal 140x119x8.1mm ZAS14011981T754
£12.72 excl.
£15.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000351088
Hallite Rod seal 30x20x10mm SA203010UN
£2.96 excl.
£3.55 incl.
Backorder available
Usually ships within 3–8 weeks

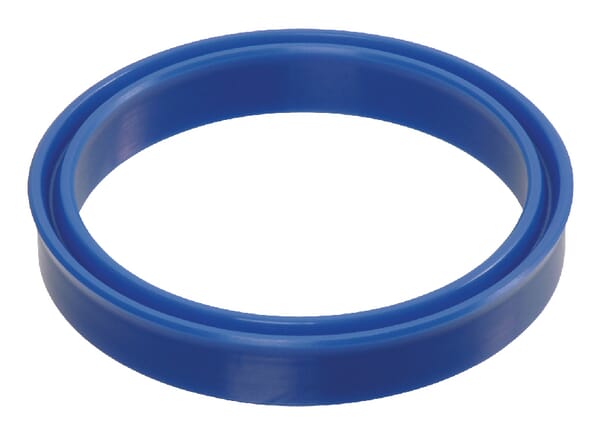

BPA000353697
Hallite Rod seal 55x40x7.3mm SA405573UN
£4.07 excl.
£4.88 incl.
In stock
Expected to ship on Friday 18 September

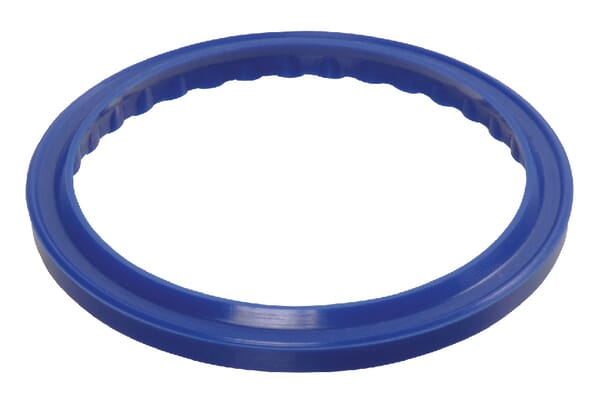

BPA000232585
Hallite Rod wiper ASU 110x122.2x7.1/12mm ASU110122271
£5.44 excl.
£6.53 incl.
In stock
Expected to ship on Friday 18 September

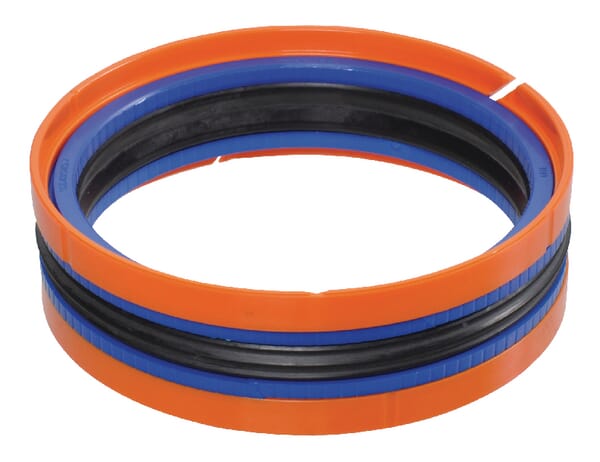

BPA000404744
Hallite Piston seal 25x15x12.5mm ZA2515125DBM
£8.36 excl.
£10.03 incl.
In stock
Expected to ship on Friday 18 September

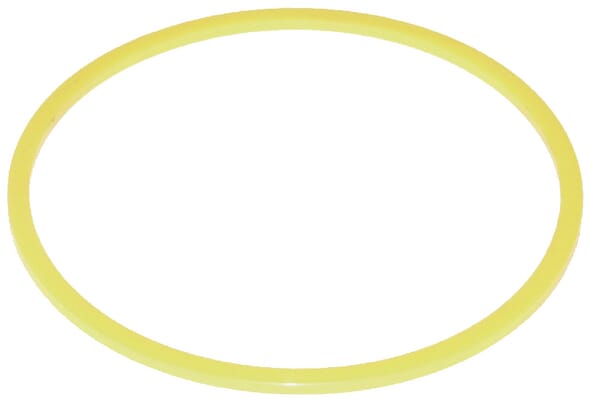

BPA000234583
