£1.59
excl. VAT
£1.91 incl. VAT
£1.91
incl. VAT
£1.59 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

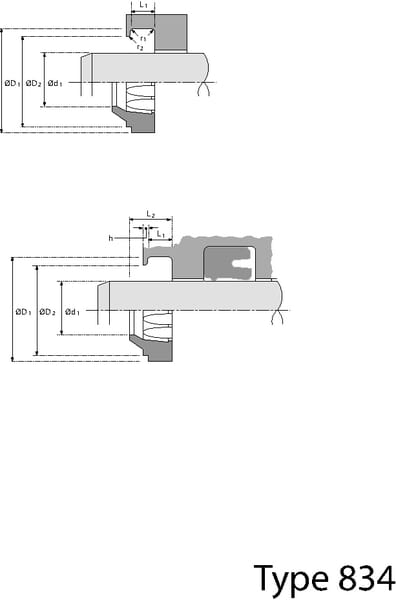

| d1Inner diameter | 22 mm |
|---|---|
| D1Outer diameter | 30 mm |
| D2Collar diameter | 28 mm |
| Groove width | 4 mm |

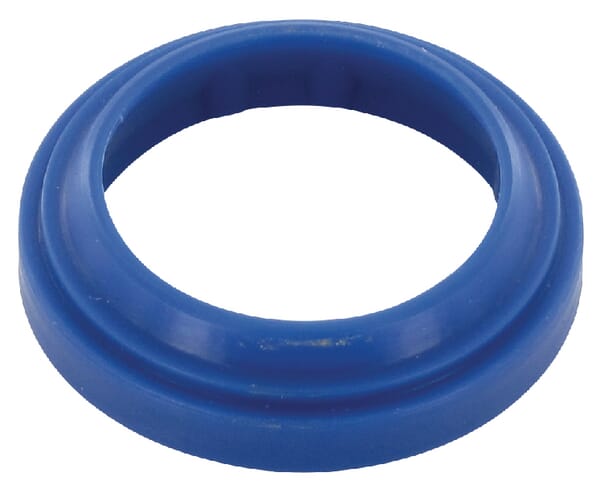

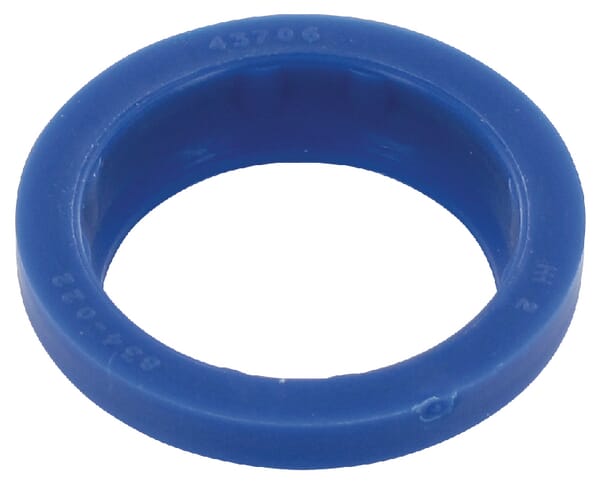

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | 8719607066181 |
|---|---|
| Unit of measure | EA |
| Weight | 2 g |
| Dimensions | 30 × 20 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000404901
Hallite Piston seal 70x59x4.2mm ZAS705942T764
£3.74 excl.
£4.49 incl.
In stock
Expected to ship on Monday 21 September
BPA000234598

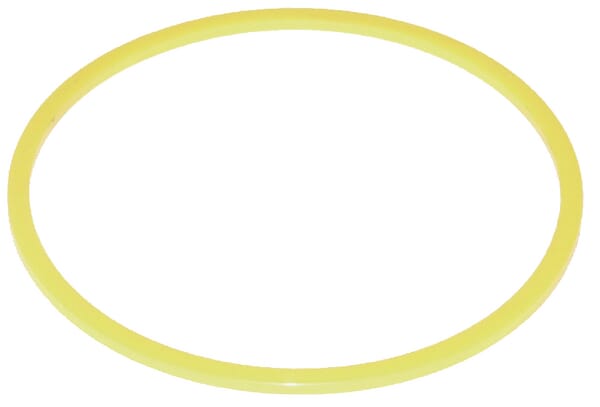

Hallite Backup for 63.09 x 3.53 e=1.02 BU6309353
£2.72 excl.
£3.26 incl.
In stock
Expected to ship on Monday 21 September
BPA000234504
Hallite Backup for 29.74 x 3.53 e=1.02 BU2974353
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Monday 21 September
BPA000404885

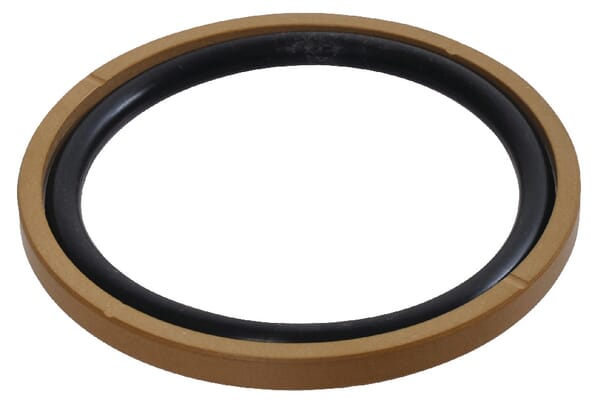

Hallite Piston seal 55x44x4.2mm ZAS554442
£7.74 excl.
£9.29 incl.
In stock
Expected to ship on Monday 21 September
BPA000353844
Hallite Rod seal 90x80x10mm SA809010UN
£6.27 excl.
£7.52 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404724

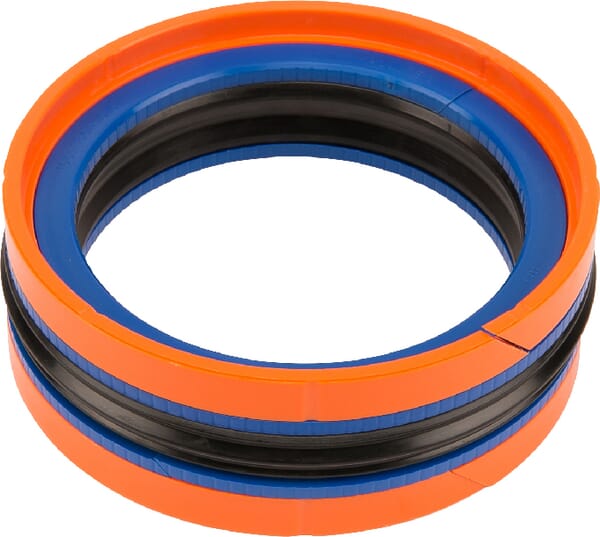

Hallite Piston seal 105x80x22.4mm ZA105802255DBM
