£1.71
excl. VAT
£2.05 incl. VAT
£2.05
incl. VAT
£1.71 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

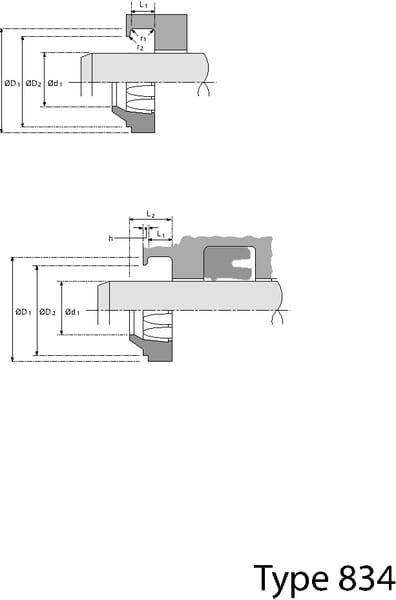

| d1Inner diameter | 35 mm |
|---|---|
| D1Outer diameter | 43 mm |
| D2Collar diameter | 41 mm |
| Groove width | 4 mm |

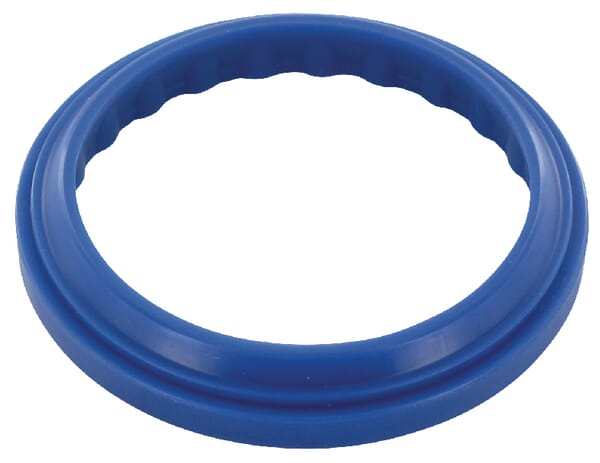

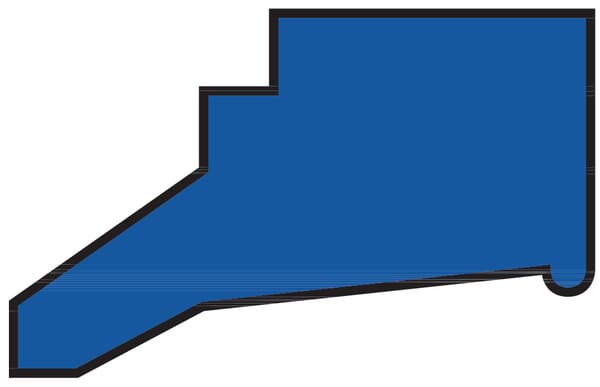

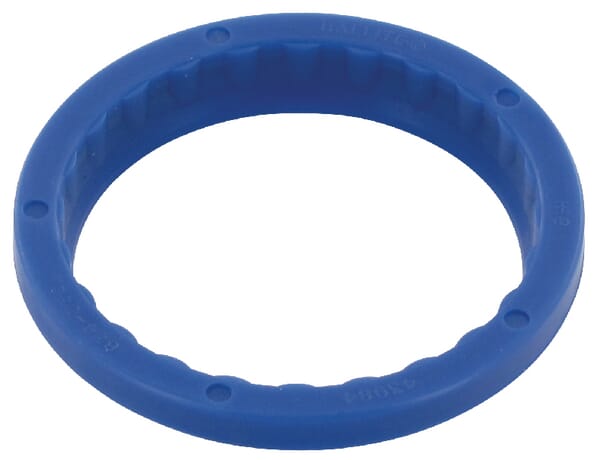

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | 8719607031554 |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 45 × 45 × 7 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000280021

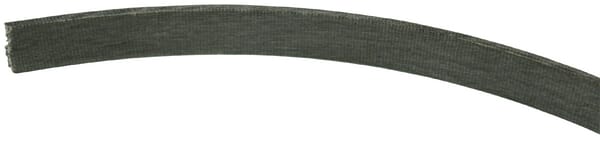

Hallite Guide strip coil 19.8x2.5 GB19825
£113.33 excl.
£136.00 incl.
In stock
Expected to ship on Friday 18 September
BPA000354410
Hallite Rod seal 35.7x25x4.2mm SAS2535742
£6.28 excl.
£7.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000404833

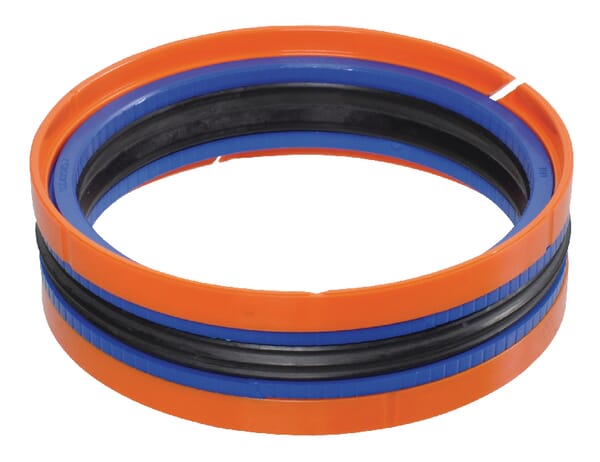

Hallite Piston seal 90x72x22.5mm ZA9072225DBM
£13.92 excl.
£16.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000353833
Hallite Rod seal 85x75x11.8mm SA7585118UN
£6.63 excl.
£7.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000404896

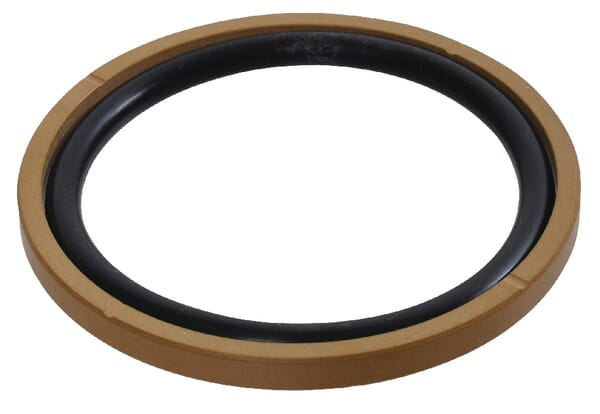

Hallite Piston seal 65x54x4.2mm ZAS655442
£9.70 excl.
£11.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000286966

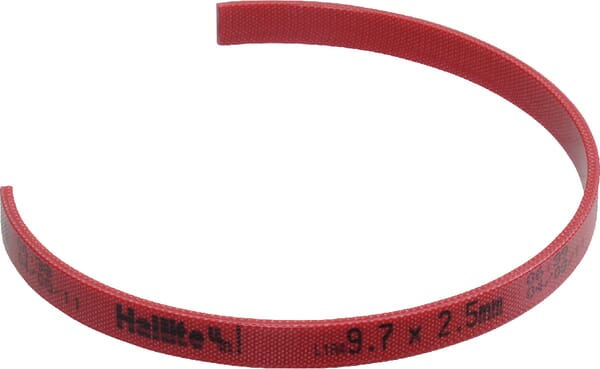

Hallite Guide ring 115x110x9,7 - GRI GRI11011597
£11.25 excl.
£13.50 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000163139

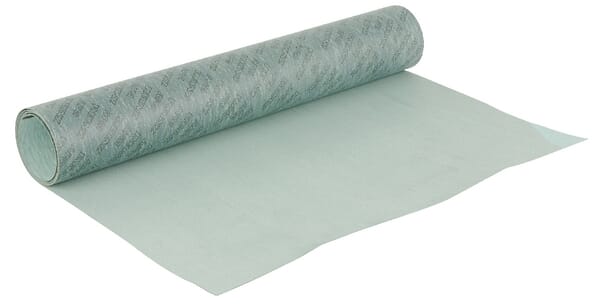

Glaser Dana Paper gasket 500x1500x0.75mm 703515500
£33.43 excl.
£40.12 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232602

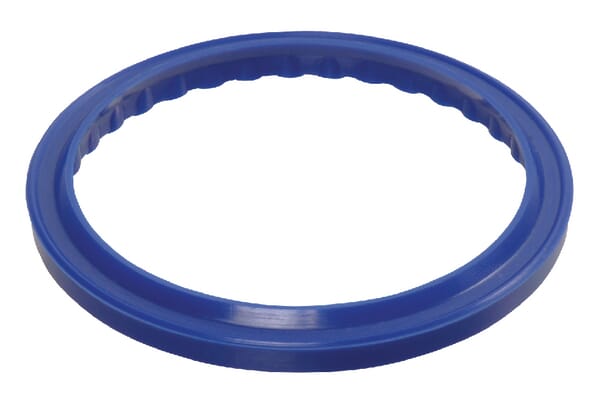

Hallite Rod wiper ASU 25x33.6x5.3/7mm ASU2533653
£0.93 excl.
£1.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000220815
Kverneland / Accord Deep groove ball bearing AC671128
£14.95 excl.
£17.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000201965
Kramp Hexagon head bolt DIN933 M6x12 nylon 6.6 933612N
£0.78 excl.
£0.94 incl.
In stock
Expected to ship on Friday 18 September
BPA000330487
Kramp O-ring 64.2x5.7mm 75 shore Viton OR6420570VP001
£10.31 excl.
£12.37 incl.
In stock
Expected to ship on Friday 18 September
BPA000382195
Kramp Chain diameter 2mm x 28mm Roll:66m zinc-plated VK20P066
£37.25 excl.
£44.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000393246

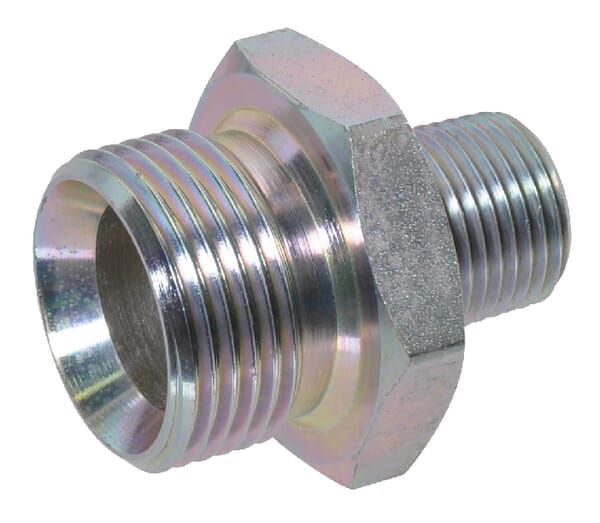

Burnett & Hillman Adaptor M/M 1.1/2" BSP x 2" NPT VNBN2432
