£5.15
excl. VAT
£6.18 incl. VAT
£6.18
incl. VAT
£5.15 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

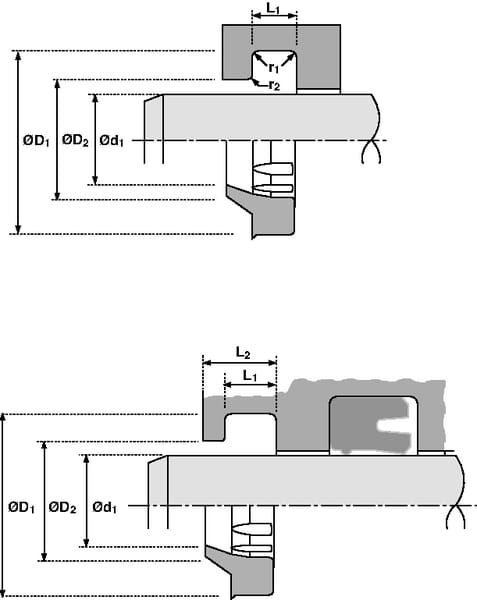

| Collar diameter | 45.5 mm |
|---|---|
| d1Inner diameter | 40 mm |
| D1Outer diameter | 48 mm |
| Groove width | 5 mm |

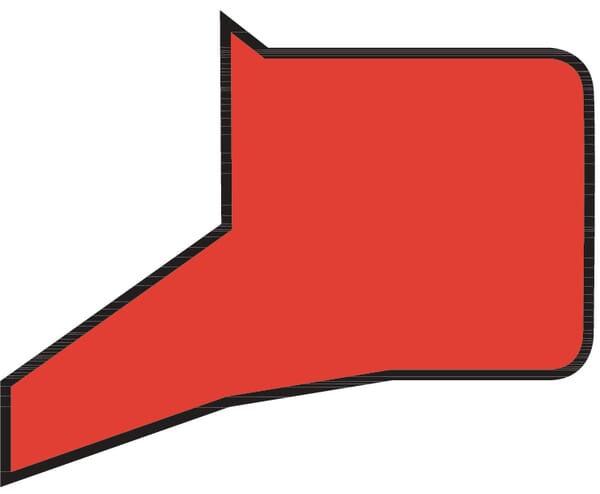

| Long description | The ASU-T38 (38) single-lip wiper is engineered to fit metric housings, including ISO 6195A standard sizes. Its precisely designed wiping lip maintains firm contact with the piston rod, effectively removing heavy contaminants such as mud and ice to protect your hydraulic system. Featuring an outer crush lip, the scraper ensures a secure interference fit within the housing, preventing contaminants from entering the groove and damaging internal components. |
| Material wiper seal | Polyester |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 120 °C |
| Min. working temperature | -40 °C |
| Product details | Material : Abrasion-resistant polyester, Compatible with split housings, Most sizes can be carefully installed in blind housings, Designed with an additional sealing lip and ribs, Secure fit with reliable sealing, Built for demanding environments, Highly flexible, Excellent wear resistance, Effective dirt removal |
| Total width | 8 mm |
| Type | Rod wiper |
| Type code | ASU-T38 (38) |
| Unit | Each |
Logistics
| EAN | 8719607026550 |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 45 × 44 × 21 mm |
| Dangerous goods | No |
You might also like
BPA000287001

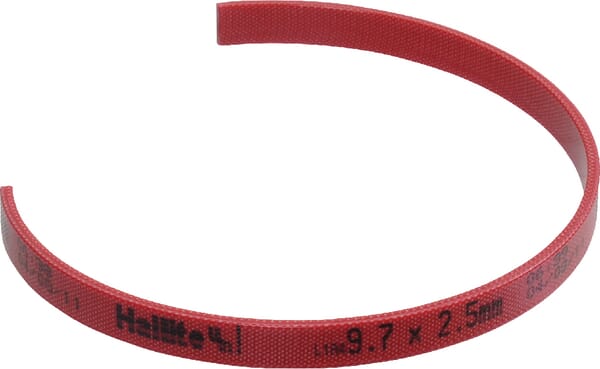

Hallite Guide ring 95x90x9,7 - GRI GRI909597
£9.18 excl.
£11.02 incl.
In stock
Expected to ship on Monday 21 September
BPA000232511

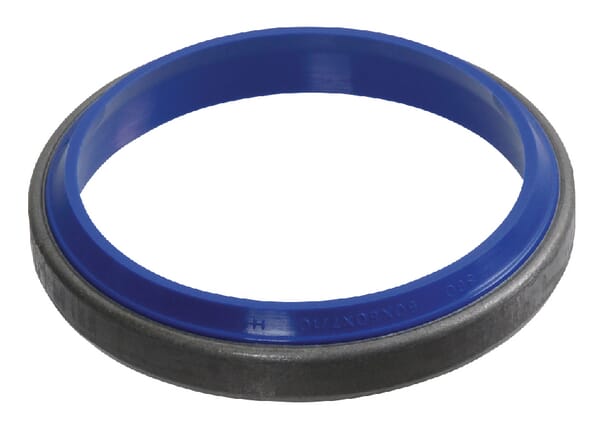

Hallite Rod wiper ASM 75x85x7/10mm ASM7585710
£8.50 excl.
£10.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000232494
Hallite Rod wiper ASM 40x52x7/10mm ASM4052710
£4.86 excl.
£5.83 incl.
In stock
Expected to ship on Friday 18 September
BPA000404722
Hallite Piston seal 100x85x11.4mm ZA10085114AEUN
£7.09 excl.
£8.51 incl.
In stock
Expected to ship on Friday 18 September
BPA000234589

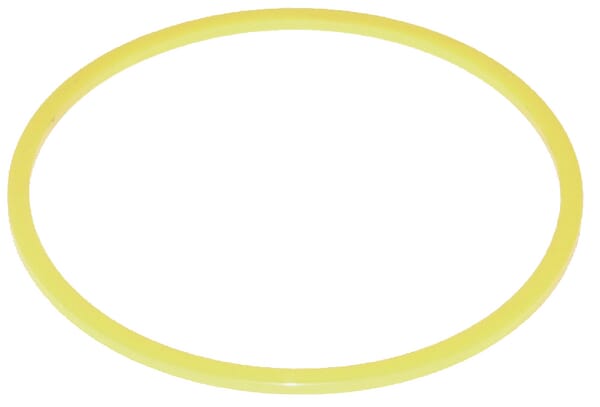

Hallite Backup for 49.2 x 3.53 e=1.02 BU492353
£8.77 excl.
£10.52 incl.
In stock
Expected to ship on Friday 18 September
BPA000404764

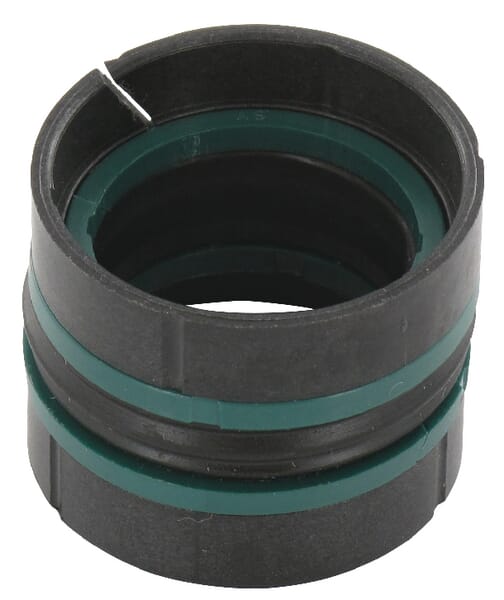

Hallite Piston seal 35x25x16.4mm ZA3525164DBM
