About this product

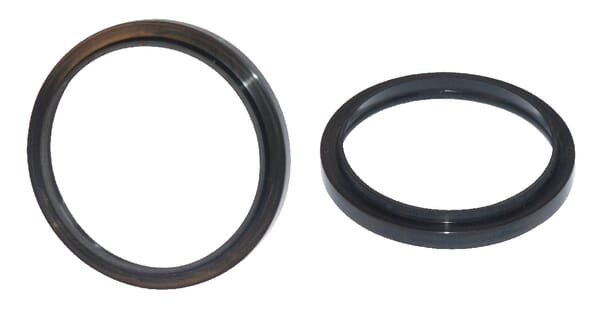

A Hallite 834 rod wiper designed as a single-lip, snap-in component for standard hydraulic cylinder rod sealing applications. The wiper measures 70 mm inner diameter by 78 mm outer diameter, with a total width of 7 mm and groove width of 4 mm, sold as a single unit. Manufactured from Hythane® 181 polyurethane, the wiper features a precisely engineered lip that maintains consistent contact with the rod surface to remove mud, dirt, and other contaminants. Moulded stabilising ribs on the inner diameter improve grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. The wiper operates across a temperature range of −45 °C to +110 °C with a maximum sliding speed of 4 m/s. The product is supplied with snap-in installation in closed chambers and delivers exceptional wear resistance with effective dirt removal. Weight is approximately 6 g; EAN data is not provided.
Product details
| d1Inner diameter | 70 mm |
|---|---|
| D1Outer diameter | 78 mm |
| D2Collar diameter | 76 mm |
| Groove width | 4 mm |

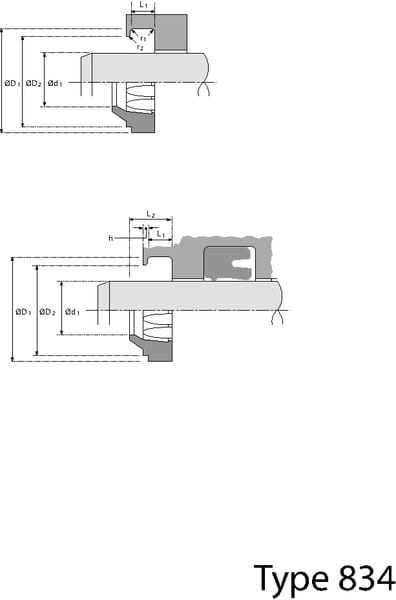

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 6 g |
| Dimensions | 78 × 78 × 7 mm |
| Dangerous goods | No |
