£102.98
excl. VAT
£123.58 incl. VAT
£123.58
incl. VAT
£102.98 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application | Universal |
|---|---|
| Bulb type | H1 |
| Content in sale unit | 1 pcs |

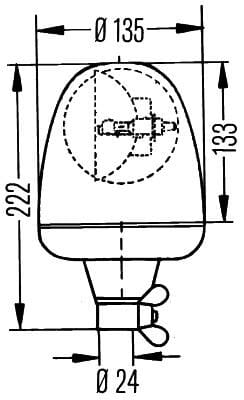

| Diameter | 135 mm |
| ECE standard | R10, R65 |
| Flashes per minute | 174 |
| Function | Direction indicator, Position light, Back up alarm |
| Height | 222 mm |
| Housing colour | Black |
| Housing material | Ethylene propylene diene monomer [EPDM] |
| Insulation class | X9K, 5K4K |
| Lens material | Polycarbonate |
| Light colour | Orange |

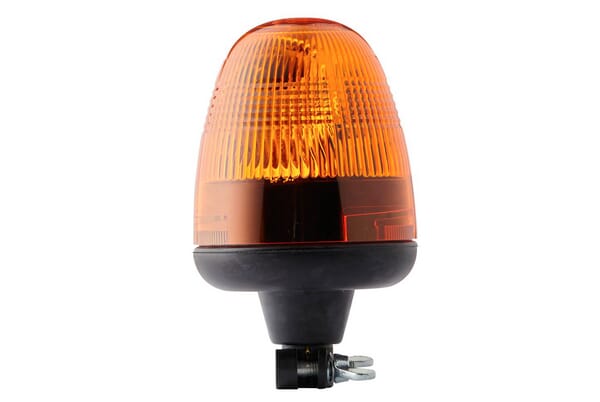

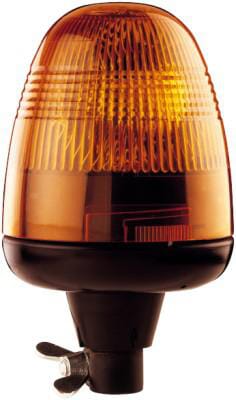

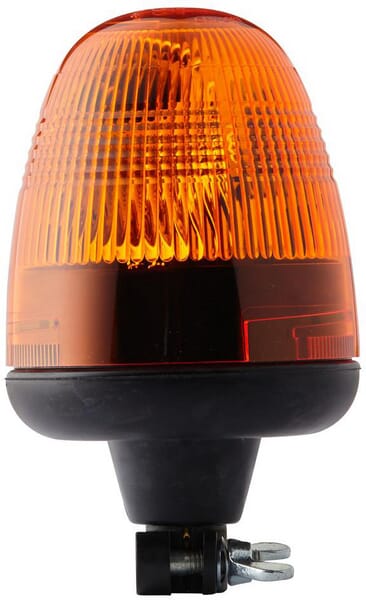

| Long description | Rotating beacon flexible Rotaflex R Hella |
| Max working temperature | 60 °C |
| Min working temperature | -40 °C |
| Mounting position | Top |

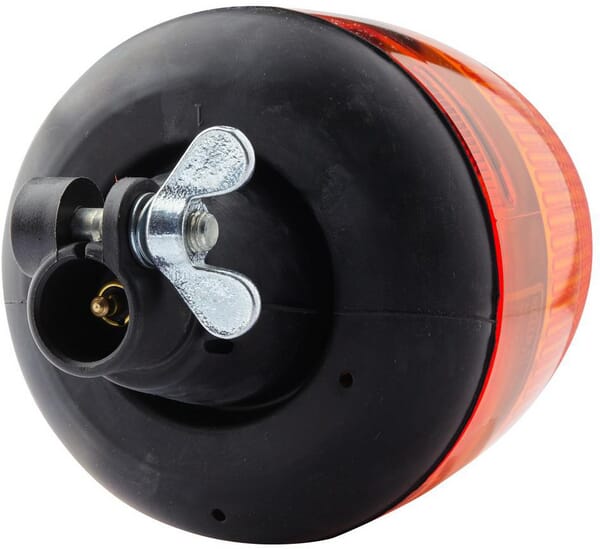

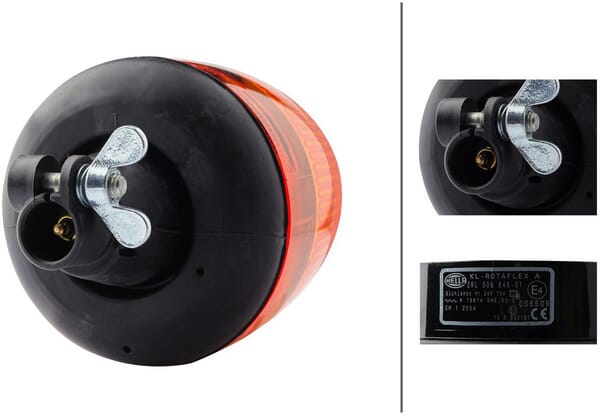

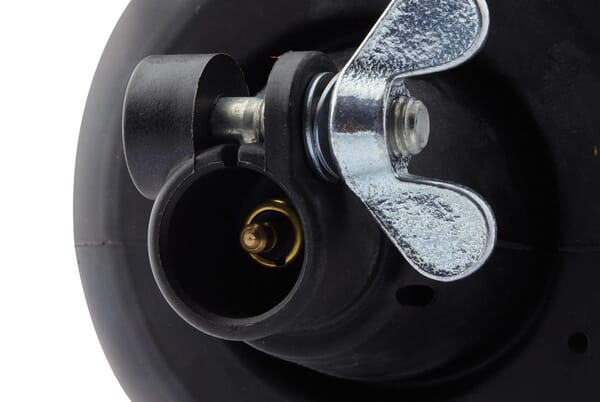

| Mounting type | Flexible pole mount (DIN) |
| Nominal voltage | 24 V |
| Plug type | DIN pole mount |
| Power | 70 W |

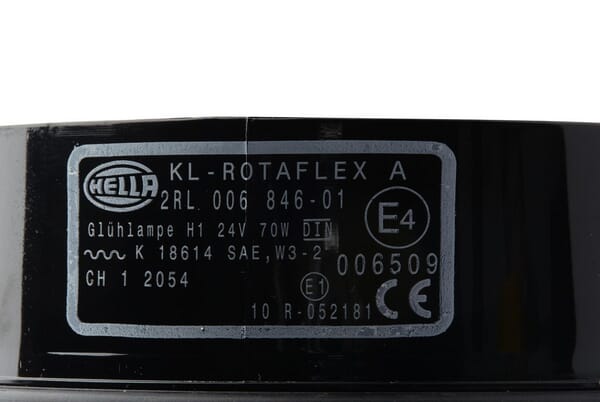

| Product details | Black base with pipe attachment for push-on pin 24mm, flexible. Orange light lens., Rotating beacon comes with bulb., In accordance with DIN 14620, type A., Control number : E4 6509, Lamp type: H1 P14.5s |
| Pros | Universal range of applications, Agricultural vehicles, Construction machines, Vehicles for municipal services |
| Series | Rotaflex |
| Shape | Round |
| Suitable for machine/vehicle brand | Universal |
| Technology | Halogen |
| Unit | Each |
| Weight | 0.85 kg |
| Width | 135 mm |
Compatible accessories
Parts and components that work with this product.
8HG002365001
Hella Beacon support 8HG002365001
£23.88 excl.
£28.66 incl.
8HG006294011
Hella Beacon support 8HG006294011
£51.84 excl.
£62.21 incl.
8HG006294021
Hella Beacon support 8HG006294021
£33.63 excl.
£40.36 incl.
8HG006294031
Hella Beacon Support 8HG006294031
£39.12 excl.
£46.94 incl.
8HG006294041
Hella Telescopic beacon support 8HG006294041
£110.06 excl.
£132.07 incl.
8HG006294091
Hella Beacon support 8HG006294091
£38.15 excl.
£45.78 incl.
BS2000AKR
Kramp Beacon connector (pack of 4) BS2000AKR
£7.70 excl.
£9.24 incl.
BS2000BKR
Kramp Beacon connector+rubber cap (pack of 4) BS2000BKR
£10.83 excl.
£12.99 incl.
BS2001KR
Kramp Beacon bracket welding stut BS2001KR
£7.89 excl.
£9.46 incl.
BS2002KR
Kramp Beacon bracket screw type BS2002KR
£13.21 excl.
£15.85 incl.
BS2003KR
Kramp Beacon bracket foot mount BS2003KR
£8.26 excl.
£9.91 incl.
BS2004KR
Kramp Beacon bracket 90 degree mount BS2004KR
£14.21 excl.
£17.05 incl.
BS2005KR
Kramp Beacon bracket side mount BS2005KR
£8.96 excl.
£10.76 incl.
BS2006KR
Kramp Beacon post 55cm long BS2006KR
£20.75 excl.
£24.90 incl.
BS2007KR
Kramp Beacon post 125cm long BS2007KR
£32.37 excl.
£38.84 incl.
BS2008KR
Kramp Beacon bracket 90 degree foldable, 10 degree mount BS2008KR
£24.29 excl.
£29.15 incl.
BS2009KR
Kramp Beacon bracket 90 degree foldable BS2009KR
£35.53 excl.
£42.64 incl.
BS2010KR
Kramp Beacon bracket foldable heavy duty BS2010KR
£82.74 excl.
£99.29 incl.
BS2011KR
Kramp Beacon bracket side mount BS2011KR
£28.39 excl.
£34.07 incl.
BS2012KR
Kramp Beacon bracket side mount BS2012KR
£25.09 excl.
£30.11 incl.
BS2013KR
Kramp Beacon bracket side mount BS2013KR
£31.74 excl.
£38.09 incl.
BS2014KR
Kramp Beacon bracket tractor BS2014KR
£30.03 excl.
£36.04 incl.
BS2015LKR
Kramp Beacon bracket tractor LH BS2015LKR
£23.14 excl.
£27.77 incl.
BS2015RKR
Kramp Beacon bracket tractor RH BS2015RKR
£23.14 excl.
£27.77 incl.
BS2016KR
Kramp Beacon bracket for fix mount beacon 160mm BS2016KR
£13.41 excl.
£16.09 incl.
BS2017KR
Kramp Beacon weldable bracket weld for fix mount beacon 160mm BS2017KR
£7.03 excl.
£8.44 incl.
BS2018KR
Kramp Beacon support set with connector cable BS2018KR
£54.96 excl.
£65.95 incl.
Logistics
| EAN | 4082300045505 |
|---|---|
| Unit of measure | EA |
| Weight | 1018 g |
| Dimensions | 190 × 185 × 167 mm |
| Dangerous goods | No |
