£904.00
excl. VAT
£1,084.80 incl. VAT
Pack of 100 · £9.04 each excl. VAT
£1,084.80
incl. VAT
£904.00 excl. VAT
Pack of 100 · £10.85 each incl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Conductor category | Class 5 = flexible |
|---|---|
| Conductor category class code | 5 |
| Conductor material | Copper |
| Conductor surface | None |
| Core colour | Green, Yellow |
| Core cross section | 16 mm² |
| Core identification | Colour |
| Core insultation material | PVC |
| Fire reaction class code according to EN 13501-6 | Eca |
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Manufacturer Product ID | 309016002 |
| Material core insulation | PVC |
| Max. conductor temperature | 90 °C |
| Nominal cross section conductor | 16 mm² |
| Nominal voltage U | 750 V |
| Nominal voltage U0 | 450 V |
| Number of cores | 1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approx. | 7.4 mm |
| Outer sheath colour | Yellow, Green |
| Outer sheath material | PVC |
| Packing type | n/a |
| Permitted cable outer temperature after assembling without vibration | -40-90 |
| Permitted cable outer temperature during assembling/handling | -5-90 °C |
| Protective conductor | Yes |
| Qty. Rounding | 100 |
| Supspension element | Yes |
| Unit | Metre |
| Working ambient temperature range | 5-90 |
Logistics
| EAN | — |
|---|---|
| Unit of measure | MTR |
| Weight | 167 g |
| Dimensions | 1000 × 7 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000283244
HELU Cable H01N2-D 1x16 mm² H01N2D16R010BK
£55.67 excl.
£66.81 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000278724
HELU PVC flex Cable 2x0,75MM shield FLEXCYOZ2075
£2.86 excl.
£3.43 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000312183
HELU Control current cable 18X0.5mm² LIYCY1805
£12.10 excl.
£14.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000283486
HELU Cable 2x0.75mm², black, PVC H05VVF2X075BKR025
£29.80 excl.
£35.76 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000362682
HELU Cable SiHF SIHF325
£9.51 excl.
£11.41 incl.
In stock
Expected to ship on Tuesday 22 September

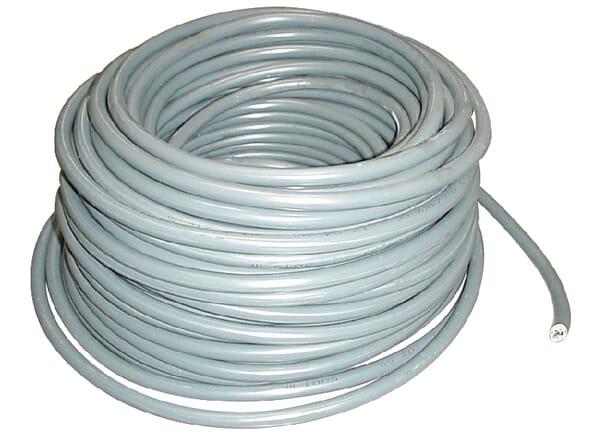

BPA000389067
