£573.41
excl. VAT
£688.09 incl. VAT
£688.09
incl. VAT
£573.41 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Flow rate | 6 l/min |
|---|---|
| Includes | Cartridge, Solenoid |

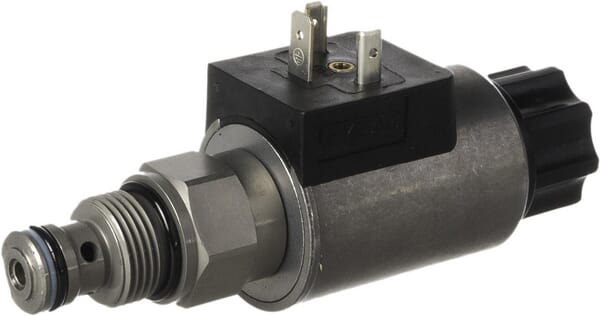

| Long description | Hydraulic relief valves (cartridge version) are compact, modular components designed to regulate pressure and safeguard hydraulic systems against excessive pressure build-up. These proportional adjustable pressure control valve inserts are engineered to fit seamlessly into a cavity within a hydraulic manifold or block, making them an integral and space-efficient part of the system. Their compact design, combined with the ability to protect critical components and ensures reliable operation in a wide range of applications. |
| Max. pressure | 350 BAR |
| Mounting length | 92.2 mm |
| Pressure range | 0-210 BAR |
| Product details | Direct acting, Transfers from port 1 to 2, Poppet type, Solenoid proportional, Increasing pressure with increasing current, Max. pressure : 350 bar, Nominal flow : max. 10 l/min at 70bar, max. 6 l/min at 210 bar and max. 4 l/min at 350 bar, Cavity : 06020 metric, Leakage : 10cm³ per minute at 80%, Control via PWM signal : 160-250 Hz, Maximum current : 1750 mA |
| Total length | 118 mm |
| Unit | Each |
| Voltage (DC) | 12 V |
| Wrench/spanner size | 24.0 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 441 g |
| Dimensions | 120 × 35 × 40 mm |
| Dangerous goods | No |
You might also like

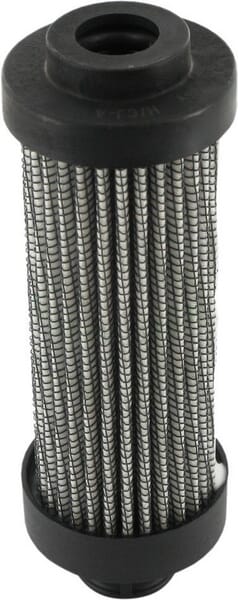

BPA000008344
Hydac Filter element 0030R010BN3HC
£58.35 excl.
£70.02 incl.
Backorder available
Usually ships within 3–8 weeks

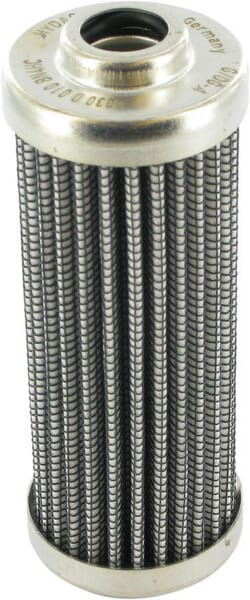

BPA000008343
Hydac filter element 0030D010BN3HC
£57.25 excl.
£68.70 incl.
In stock
Expected to ship on Monday 28 September
Free shipping

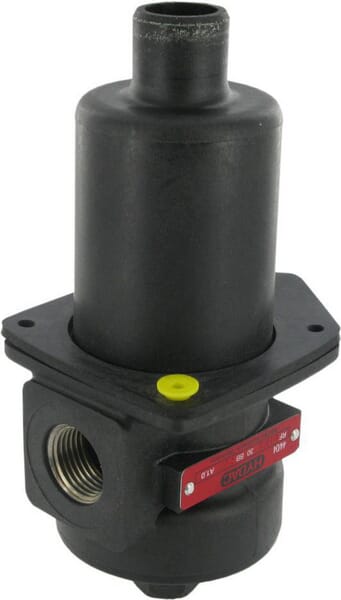

BPA000345115
Hydac Return filter BN/HC BB 20 A10 RFBNHC30BB20A10
£127.15 excl.
£152.58 incl.
In stock
Expected to ship on Monday 28 September

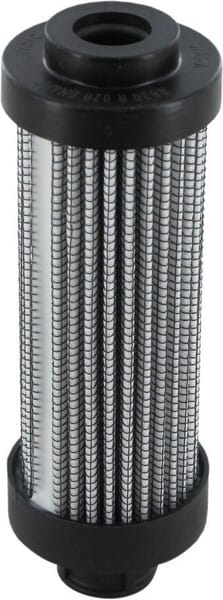

BPA000008345
Hydac Filter element 0030R020BN3HC
£65.09 excl.
£78.11 incl.
In stock
Expected to ship on Monday 28 September

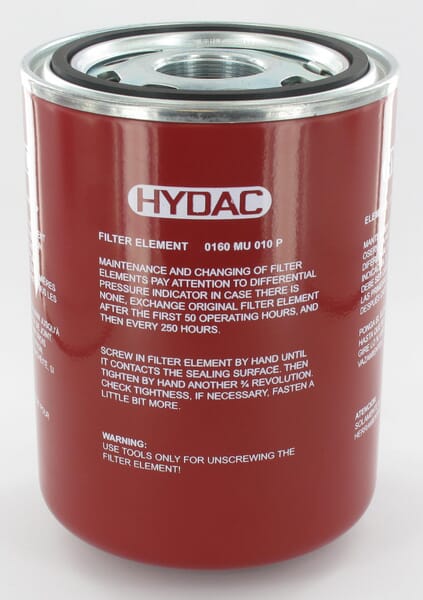

BPA000013137
Hydac filter element 0160MU010P
£72.22 excl.
£86.66 incl.
In stock
Expected to ship on Monday 28 September

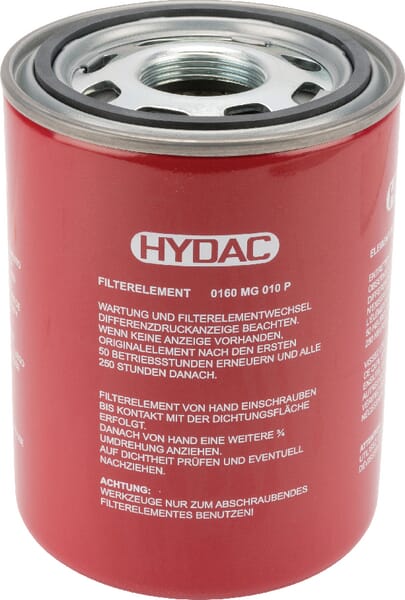

BPA000013136
