£33.20
excl. VAT
£39.84 incl. VAT
£39.84
incl. VAT
£33.20 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| B1Locking collar and inner ring width | 35.7 mm |
| Ball centre to end distance | 9 mm |
| Ball centre to grease hole distance | 5 mm |
| Basic radial load dynamic | 20700 N |
| Basic radial load static | 11300 N |
| Consists of | Clamp bearing, Clamp ring |
| dInside diameter | 28.575 mm |
| DspOutside diameter | 62 mm |
| Inner ring width | 23.8 mm |
| Inside diameter | 1-1/8 Inch |
| Locking collar outside diameter | 44 mm |

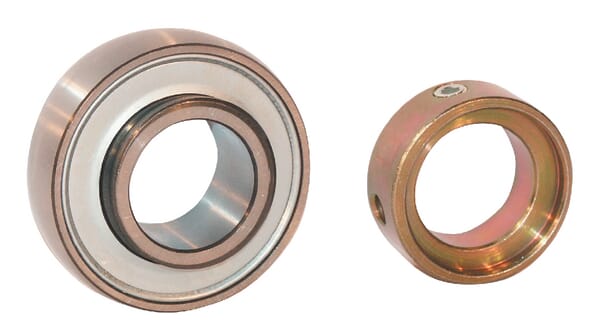

| Long description | Ball bearing inserts INA/FAG, series GRA..NPPB |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | GRA102-NPP-B-AS2/V |
| Outer ring width | 18 mm |
| Outside diameter of inner ring | 37.4 mm |
| Properties | One-sided extended inner ring with clamp ring, Inch bore, Convex outer ring with lubricating holes, P seal, Polyamide housing |
| Unit | Each |
Logistics
| EAN | 4064327237620 |
|---|---|
| Unit of measure | EA |
| Weight | 326 g |
| Dimensions | 65 × 65 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000281042

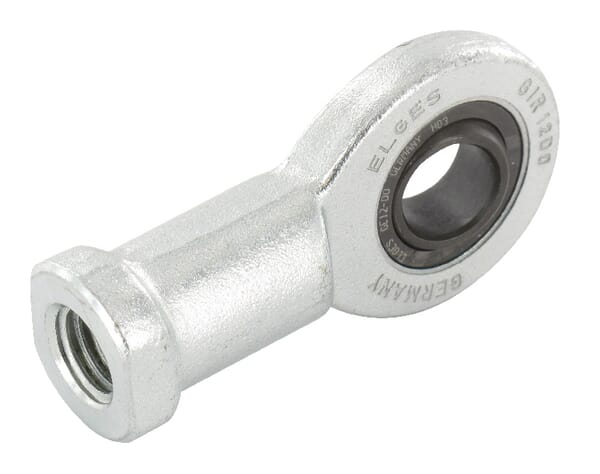

INA Rod head GIR12DOINA
£25.44 excl.
£30.53 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000337835
INA Housing unit PBS PBS40
£84.42 excl.
£101.30 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000298290

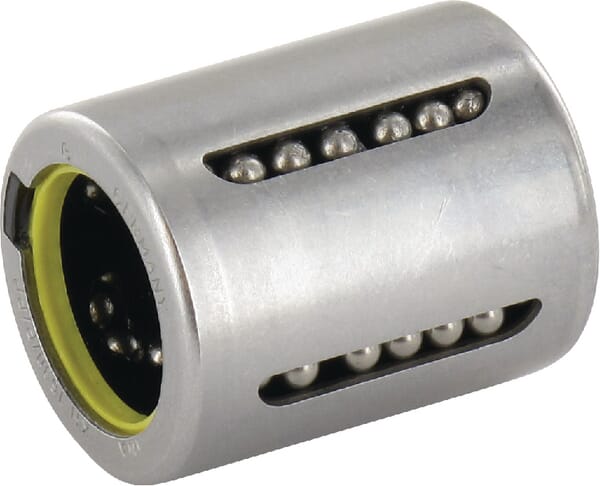

INA Linear ball bearing KH16PP
£27.15 excl.
£32.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346053

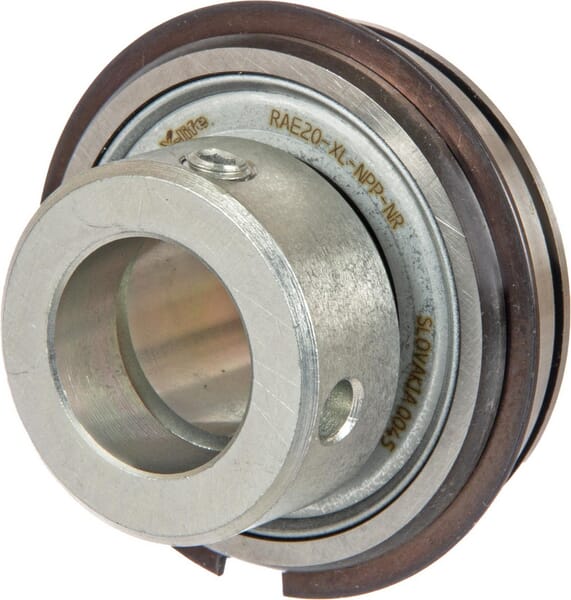

INA Radial insert ball bearing RAE20XLNPPNR
£23.13 excl.
£27.76 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000296884
INA Inner ring IR IR11012030
£123.62 excl.
£148.34 incl.
In stock
Expected to ship on Thursday 24 September
BPA000336477

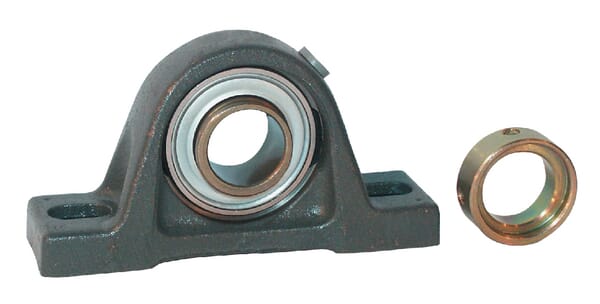

INA Housing unit PASE PASE30
