£1,008.15
excl. VAT
£1,209.78 incl. VAT
£1,209.78
incl. VAT
£1,008.15 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ball centre to end distance | 39.4 mm |
|---|---|
| Ball centre to grease hole distance | 16.7 mm |
| Basic radial load dynamic | 184000 N |
| Basic radial load static | 141000 N |
| Includes | Clamp bearing, Clamp ring |
| Inner ring width | 86 mm |
| Inside diameter | 100 mm |
| Locking collar and inner ring width | 109.4 mm |
| Locking collar outside diameter | 145 mm |
| Locking collar width | 109.4 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GNE100-KRR-B |
| Outer ring width | 49 mm |
| Outside diameter | 215 mm |
| Outside diameter of inner ring | 137.1 mm |
| Product details | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 182.8 mm |
| Sealing width | 59.4 mm |
| Unit | Each |
| Weight | 11.41 kg |
| Wrench/spanner size | 6.0 mm |
Logistics
| EAN | 40128028090844064327885890 |
|---|---|
| Unit of measure | EA |
| Weight | 11150 g |
| Dimensions | 370 × 275 × 120 mm |
| Dangerous goods | No |
You might also like
BPA000286398

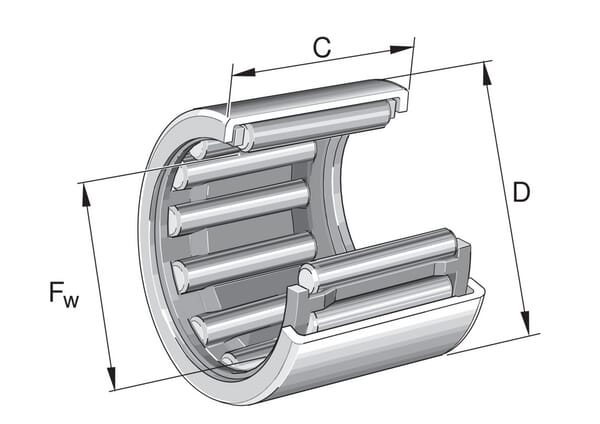

INA Cup needle roller bearing HK1312AS1B
£11.04 excl.
£13.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000374605

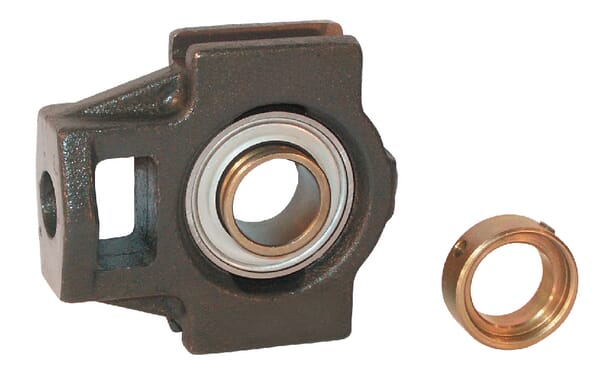

INA Housing unit TTUE TTUE40
£129.31 excl.
£155.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000364322

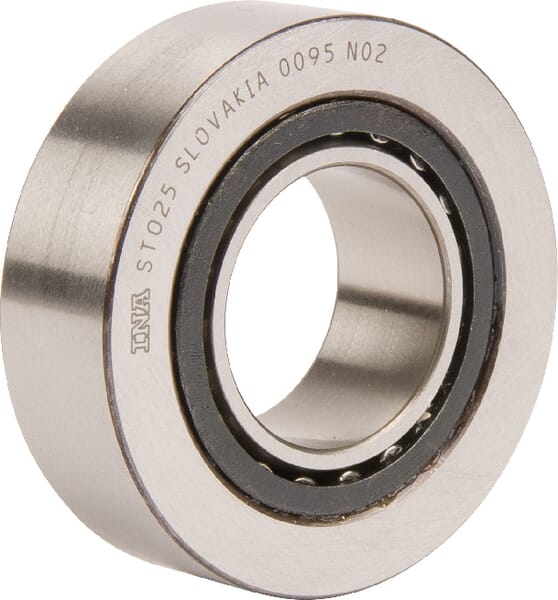

INA Track roller bearing STO25
£105.42 excl.
£126.50 incl.
In stock
Expected to ship on Friday 18 September
BPA000286896
INA Bearing insert 25x52x15mm INA/FAG GRAE25NPPBFA106
£27.24 excl.
£32.69 incl.
In stock
Expected to ship on Monday 21 September
BPA000352720
INA Seal 30 x 72 x 6 RWDR06RNBRHLA
£11.24 excl.
£13.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000306444

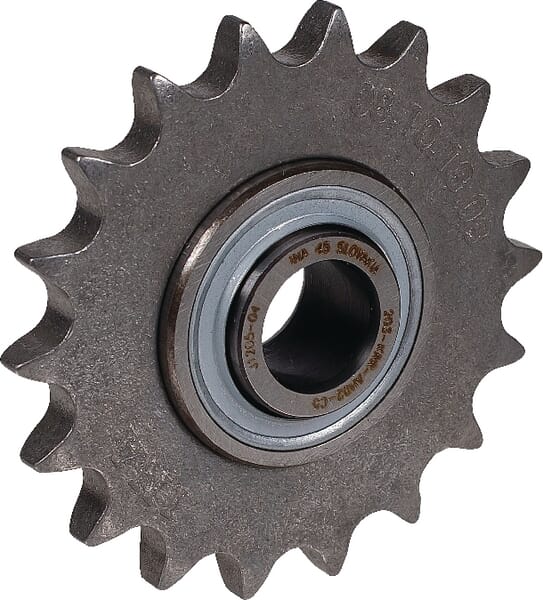

INA Sprocket tensioner KSR16L008101808
