£101.91
excl. VAT
£122.29 incl. VAT
£122.29
incl. VAT
£101.91 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 9.6 mm |
| Ball centre to grease hole distance | 3.4 mm |
| Basic radial load dynamic | 9200 N |
| Basic radial load static | 4550 N |
| Benefits | Rust-resistant |
| Consists of | Clamp bearing, 2 adjusting screws |
| Details | Made entirely of stainless steel |
| Inner ring width | 25 mm |
| Inside diameter | 15 mm |
| Locking screw centre to end distance | 4 mm |
| Long description | Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Original number equivalent | GYE15-KRR-B-VA-HLA |
| Outer ring width | 12 mm |
| Outside diameter | 40 mm |
| Outside diameter of inner ring | 23.9 mm |
| Properties | Inner ring extended on both sides with adjusting screws, Convex outer ring with lubricating holes, R seal, Stainless steel cage |
| Sealing width | 12.6 mm |
| Technical info | Addition to FA107: bearing with lubrication openings on the mounting side |
| Unit | Each |
| Weight | 0.1 kg |
| Wrench/spanner size | 2.5 mm |
Logistics
| EAN | 4047643202695 |
|---|---|
| Unit of measure | EA |
| Weight | 107 g |
| Dimensions | 57 × 57 × 37 mm |
| Dangerous goods | No |
You might also like
BPA000297127

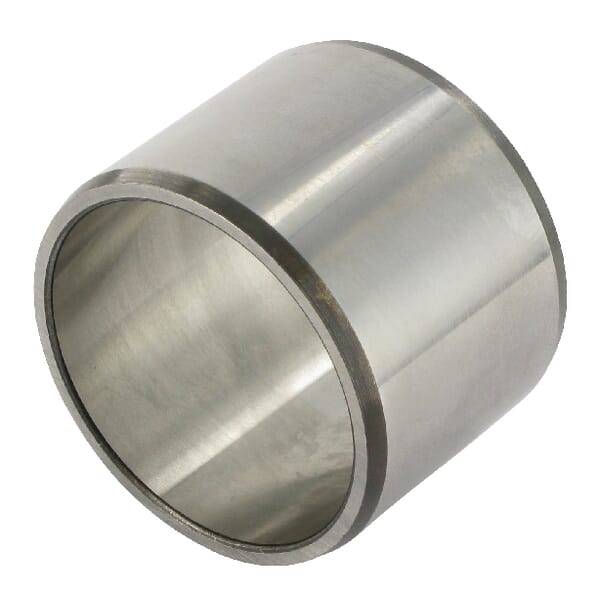

INA Inner ring IR IR222620
£13.33 excl.
£16.00 incl.
In stock
Expected to ship on Monday 21 September
BPA000286499

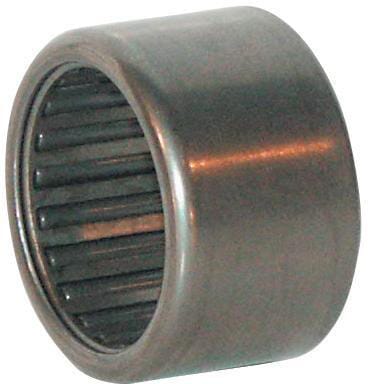

INA Cupped needle roller bearing HK3020
£7.69 excl.
£9.23 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000355062
INA Track roller bearing RSTO40
£106.84 excl.
£128.21 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000325283

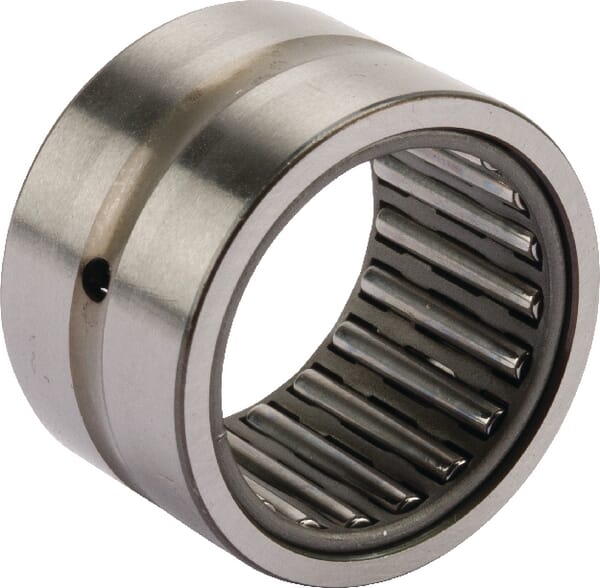

INA Needle roller massif type NK2516
£27.78 excl.
£33.34 incl.
In stock
Expected to ship on Monday 21 September
BPA000325496
INA Needle roller/angular ball brg NKIA5906XL
£62.44 excl.
£74.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000235822

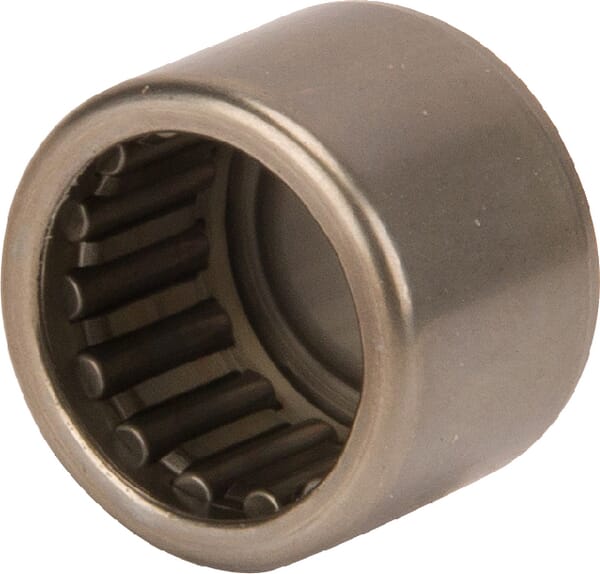

INA Cup needle roller bearing BK1010B
