£102.96
excl. VAT
£123.55 incl. VAT
£123.55
incl. VAT
£102.96 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 9.6 mm |
| Ball centre to grease hole distance | 3.4 mm |
| Basic radial load dynamic | 9200 N |
| Basic radial load static | 4550 N |
| Benefits | Rust-resistant |
| Consists of | Clamp bearing, 2 adjusting screws |
| Details | Made entirely of stainless steel |
| Inner ring width | 25 mm |
| Inside diameter | 17 mm |
| Locking screw centre to end distance | 4 mm |
| Long description | Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Original number equivalent | GYE17-KRR-B-VA-HLA |
| Outer ring width | 12 mm |
| Outside diameter | 40 mm |
| Outside diameter of inner ring | 23.9 mm |
| Properties | Inner ring extended on both sides with adjusting screws, Convex outer ring with lubricating holes, R seal, Stainless steel cage |
| Sealing width | 12.6 mm |
| Technical info | Addition to FA107: bearing with lubrication openings on the mounting side |
| Unit | Each |
| Weight | 0.08 kg |
| Wrench/spanner size | 2.5 mm |
Logistics
| EAN | 4047643202688 |
|---|---|
| Unit of measure | EA |
| Weight | 98 g |
| Dimensions | 58 × 58 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000346041

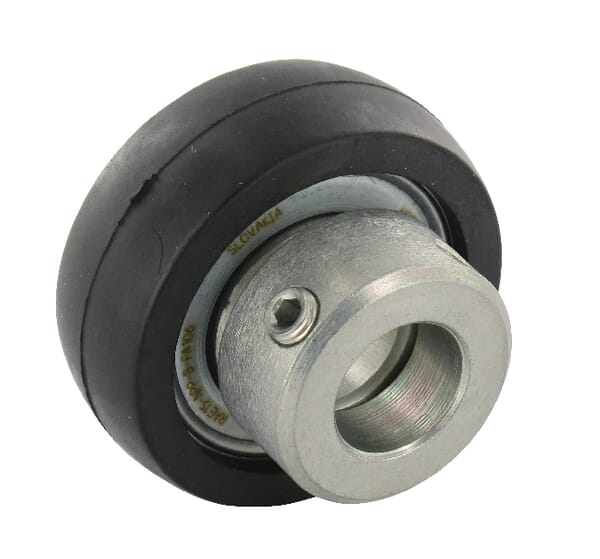

INA Bearing insert 35x80.2x24mm INA/FAG RABRB3580FA106
£66.99 excl.
£80.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000324613

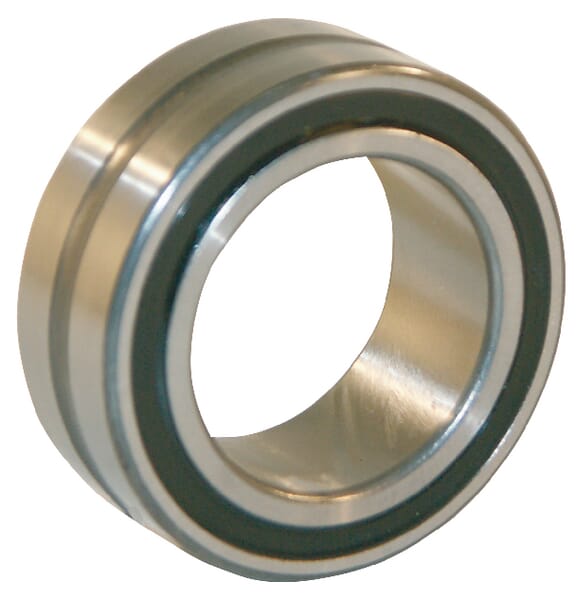

INA Needle bearing NA49102RS
£112.77 excl.
£135.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280595

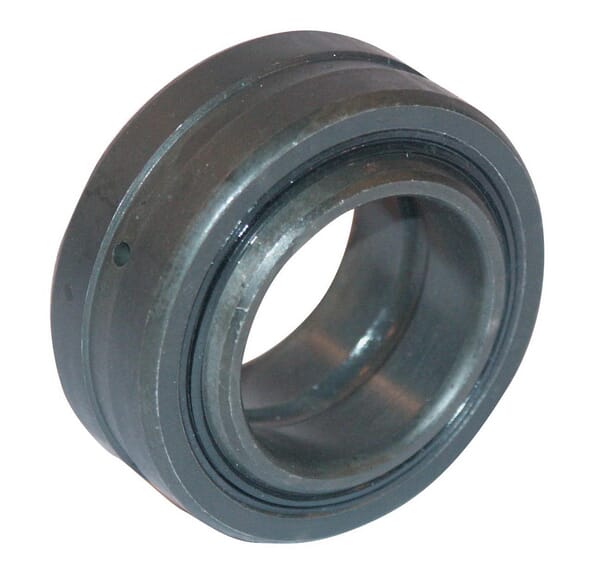

INA Radial spherical plain bearing 45x68x32/25mm GE45DO2RSINA
£50.63 excl.
£60.76 incl.
In stock
Expected to ship on Friday 18 September
BPA000286914

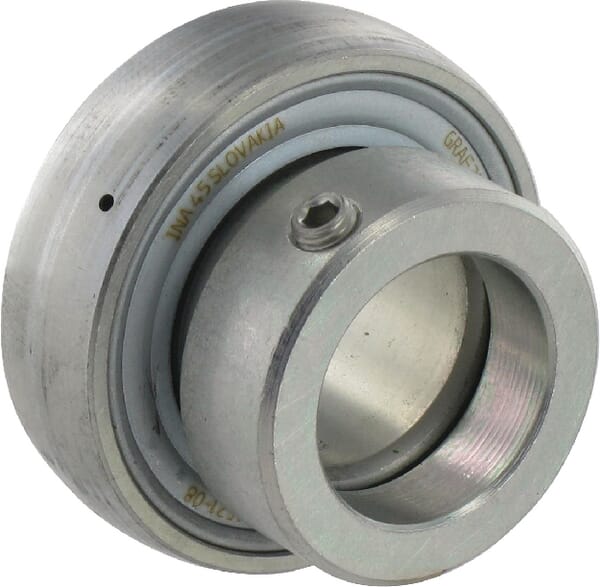

INA Bearing insert 50x90x22mm INA/FAG GRAE50NPPBFA1255
£66.57 excl.
£79.88 incl.
In stock
Expected to ship on Monday 21 September
BPA000374489
INA Housing unit THE THE25
£71.15 excl.
£85.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000280606
INA Radial spherical plain bearing 45x75x20/19mm GE45SWAINA
£113.42 excl.
£136.10 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000364717

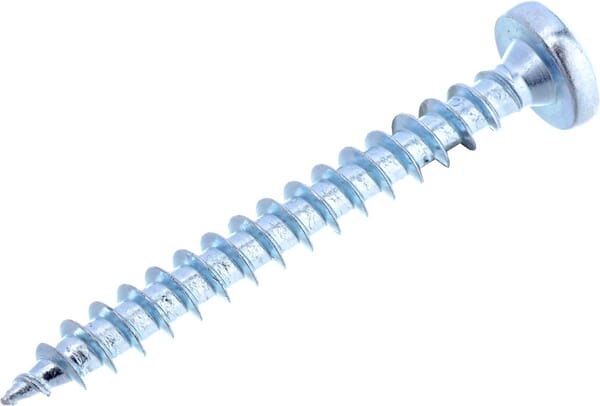

Kramp Wood Screw 4.5x40mm PZ2 cross head Steel SPL4540P200
